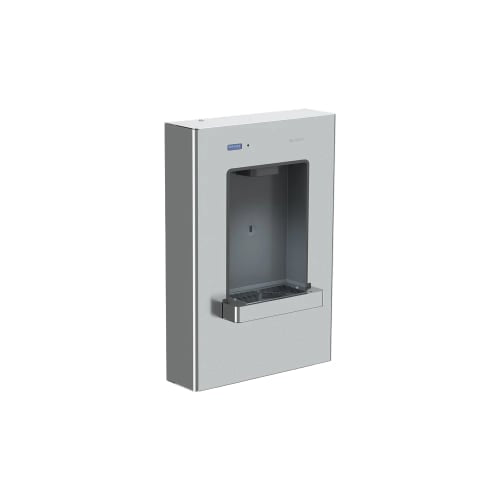

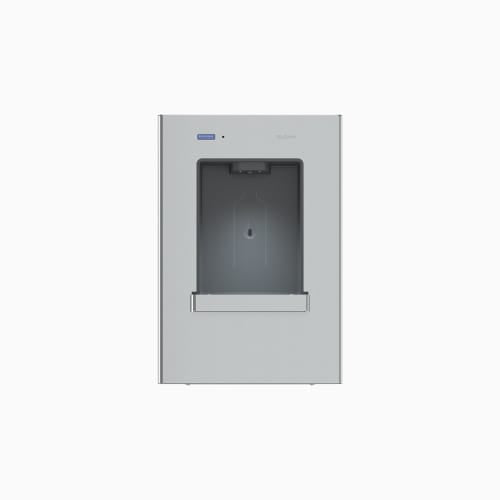

Sloan DropSpot™ Wall Mount Water Bottle Filling Station w/ Sensor - Non Refrigerated, Non Filtered (33820049)
Product Details
- DropSpot series
- Indoor use only
- Wall-mounted design
- 304 stainless steel construction with silver finish
- Swing-open cabinet
- Sensor-activated bottle filler with 20-sec. shutoff
- Touch-free operation with backlit LED fill area
- Bottle counter
- Unfiltered, non-refrigerated system
- Laminar flow stream
- Bottle filler flow rate: up to 11⁄5 GPM
Dimensions & Utilities
- 19 in. W x 79⁄10 in. D x 274⁄5 in. H
- 1 A
- 115 V/60 Hz/1 ph
*Free shipping on Sloan 33820049 within the 48 contiguous states.
From The Manufacturer
DropSpot™ Unfiltered Stainless Steel On-wall Bottle Filler, ADA Compliant, cULus Listed
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Sloan |
| Application | Indoor |
| Color | Silver |
| Depth (in) | 7.88 |
| Filtration | Non-Filtered |
| Height (in) | 27.75 |
| Hertz | 60 |
| Mounting Location | Wall |
| Number of Levels | 1 |
| Operation | Sensor |
| Phase | 1 |
| Product | Bottle Filling Station |
| Product Type | Commercial Plumbing Supplies |
| Refrigeration Type | Non-Refrigerated |
| Series | DropSpot™ |
| Special Features | Universal Rough In Measurements |
| Voltage | 115 |
| Warranty | See Warranty Document for Details |
| Width (in) | 19 |
| Weight | 33.00 |
