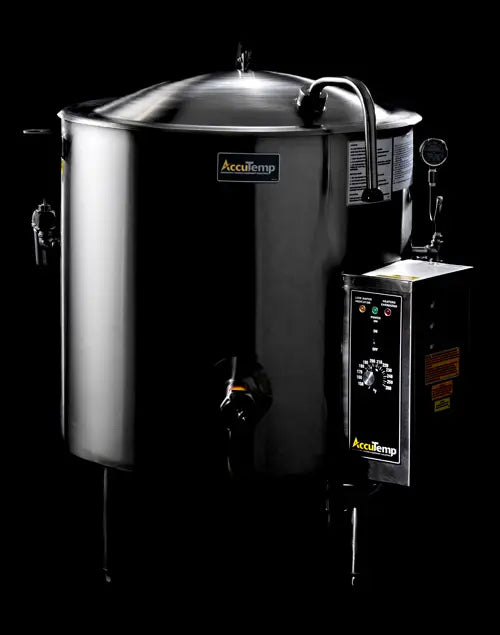

AccuTemp Edge™ Series Gas Steam-Jacketed Kettle (ALLGB-30F)
The AccuTemp Edge™ Series Kettle delivers cutting-edge performance and versatility in sizes from 5 to 125 gallons. Self-lubricating gears require zero maintenance, and heavy-duty spring-assisted covers with rear vents are built to last.
Configurable as 2/3 steam-jacketed or full-jacketed, with manual tilt or stationary mounting, and available with an optional 316 stainless acid-resistant liner for tomato sauces, citrus, and other acidic products.
Made in America by AccuTemp, every Edge kettle ships with a lifetime service & support guarantee.
This configuration (ALLGB-30F): AccuTemp Edge™ Series Stationary Kettle, Gas, 30 gallon capacity, full jacket, 316 stainless steel liner, electronic ignition, 1 piece actuator-assisted cover, self-contained, insulated, deep-drawn stainless steel construction, 2” compression draw-off valve, leg mounted, 30 PSI, 67,800 BTU, UL, NSF
Features
- Capacity range: 5 to 125 gallons (most models)
- Self-lubricating gears — zero maintenance, never scheduled downtime
- Heavy-duty spring-assisted covers with rear vents
- Exact temperature control every batch
- Optional 316 acid-resistant stainless liner
- Available as 2/3 or full steam-jacketed
- Available with manual tilt or stationary mounting
- Temperature range: 150°F to 285°F
- Pressure rating: 30–50 PSI steam-jacketed
- Available in electric or gas
- Lifetime service & support guarantee
- Made in the USA at AccuTemp's Fort Wayne, Indiana facility
Specifications
| Feature | Details |
|---|---|
| Brand | AccuTemp |
| Product Line | Edge™ Series |
| Model / SKU | ALLGB-30F |
| Construction | Steam-jacketed (2/3 or full) |
| Capacity Range | 5 to 125 gallons (model dependent) |
| Temperature Range | 150°F to 285°F |
| Pressure Rating | 30–50 PSI |
| Materials | Stainless steel; optional 316 acid-resistant liner |
| Tilt Mechanism | Manual crank or stationary |
| Gear Maintenance | Self-lubricating — zero scheduled maintenance |
| Certifications | cULus, UL EPH, NSF |
| Warranty | 1 year parts & labor + Lifetime Service & Support Guarantee |
| Country of Origin | Made in the USA |
| Product Width | 35.4" |
| Product Height | 37.1" |
| BTU Input | 67800 BTU |
