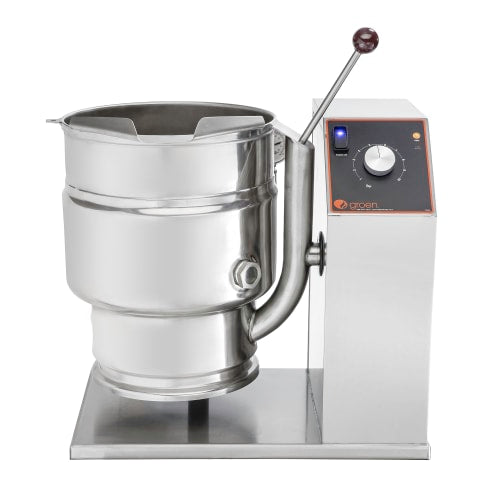

Groen TDB-20C 5 gal Steam Kettle - Manual Tilt, 2/3 Jacket, 208v/3ph

Product Details

• 20-qt. capacity
• Temperature range: 150-295 degrees F
• Two-thirds steam jacket
• integrated steam source does not require boiler connection
• Welded 1-piece, 304 stainless steel construction is durable and can be cleaned quickly
• Butterfly-shaped lip in the strong, reinforced rim eliminates splatter when pouring out contents
• Pouring height accommodates 4-in. pans
• Manual tilt with a right- or left-mounted handle
• Safety cut-off shuts heating elements off when tilted past 12 degrees
• Low-water cut-off prevents operation when water level is too low
• Pressure-relief valve opens to relieve excess pressure when it exceeds 50 PSI
• High-limit pressure switch

Dimensions & Utilities

• 25³/₅ in. W x 20⁴/₅ in. D x 23¹/₁₀ in. H (H measured to the rim)
• 18 A, 6.3 kW
• 208 V/60 Hz/3 ph

*Free shipping on Groen TDB-20C within the 48 contiguous states.

From The Manufacturer

Kettle, electric, table top, 20 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, hand tilt, faucet bracket, support console on right, stainless steel construction, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Manual
