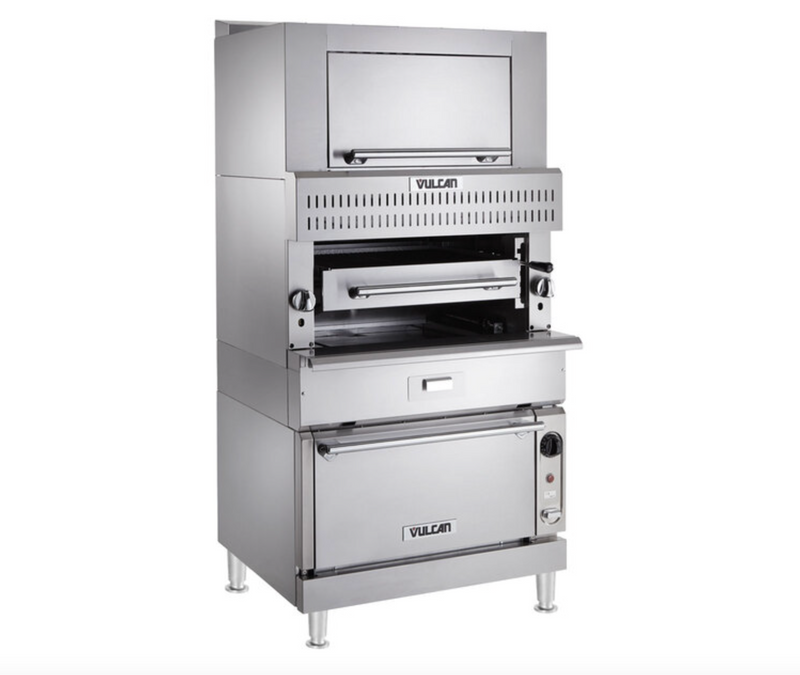

Vulcan VIR1CF Deck-Broiler w/ Infrared Burners, Convection Oven, Liquid Propane

Product Details

• Part of the V Series
• 2-deck layout
• (4) 25,000-BTU infrared burners on broiler level
• Pilot ignition system
• 4 infinite heat controls (2 per level)
• Spring-balanced cooking grid with cold-rolled steel bars
• 5 positions
• Stainless steel front, top front ledge, and sides
• 1¹⁄₄-in.-diameter front gas manifold
• Full-width, floating stainless steel drip pan
• Convection oven interior door panel, bottom, and side are made of porcelain
• Temperature adjustable from 175-550 degrees F
• 6-in. adjustable stainless steel legs
• Rear clearance: 6 in.
• 132,000 BTU

Dimensions & Utilities

• Cooking grid: 25¹⁄₂ in. W x 24¹⁄₂ in. D
• Convection oven interior: 27 in. W x 27 in. D x 13 in. H
• Overall: 36 in. W x 42⁵/₈ in. D x 77¹/₈ in. H
• 4 A
• 115 V/1 ph with a 9-ft. cord and plug
• Uses LP gas
• 1¹⁄₄-in. rear gas connection

*Free shipping on Vulcan VIR1CF within the 48 contiguous states.

From The Manufacturer

V Series Deck-Broiler, Heavy Duty range match, Gas, single deck infrared burners, 25-1/2" x 24-1/2 cooking grid, spring balanced, 5 position grip, convection oven base, stainless steel front, top front ledge & sides, 6" stainless steel legs, 1 1/4" front gas manifold, 132,000 BTU, liquid propane

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Service Manual
• Manual
• Catalog
