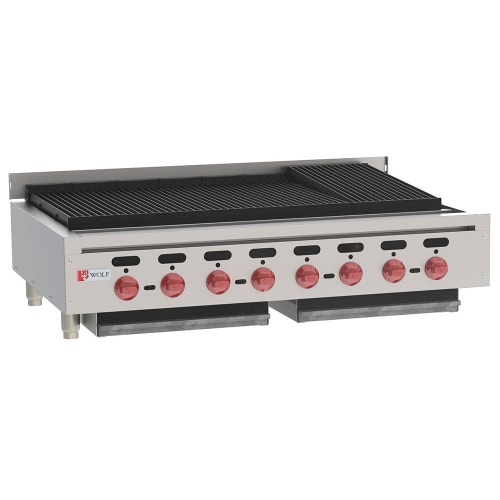

Wolf ACB47 47" Gas Charbroiler w/ (8) Burners & Cast Iron Grates, Natural Gas

Product Details

• 8 evenly spaced burners have individual controls and infinite heat control valves
• Engraved valve adjustment marks help track burner temperatures
• Cast iron char-radiants absorb heat from the burners and deflect it to the grates
• (8) 5¹/₄-in.-wide cast iron diamond grates
• Heat is confined to its burner by burner dividers
• Heat deflector tray system reflects heat upwards from the grease drawer
• Under-grate drip tray aids in cleaning
• Standing pilot ignition system starts the unit
• All-welded chassis strengthens the unit
• Most of the unit is made of stainless steel and can withstand heavy use, dents, and scratches
• 4-in. leveling feet elevate the unit
• 136,000 BTU

Dimensions & Utilities

• Broiling area: 43 in. W x 22⁵/₁₆ in. D
• Overall: 46¹⁷/₂₀ in. W x 31 in. D x 15³/₁₀ in. H
• Powered by natural gas
• ³⁄₄-in. rear gas connection and gas pressure regulator

*Free shipping on Wolf ACB47 within the 48 contiguous states.

From The Manufacturer

Achiever Charbroiler, 46-7/8" W, natural gas, countertop, (8) cast iron 17,000 BTU burners with standing pilots and cast iron radiants, heat deflector tray, supercharger burner dividers, high range infinite heat control valves, fully welded chassis, manual gas valve controls, stainless steel front, sides, top trim, backsplash & grease trough, cast iron top grates, 4" leveling feet, 136,000 BTU, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Catalog
