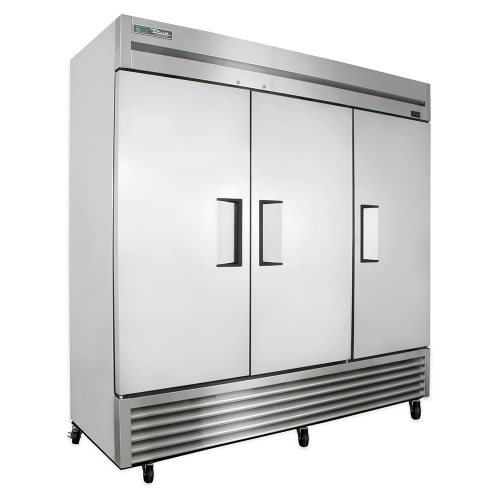

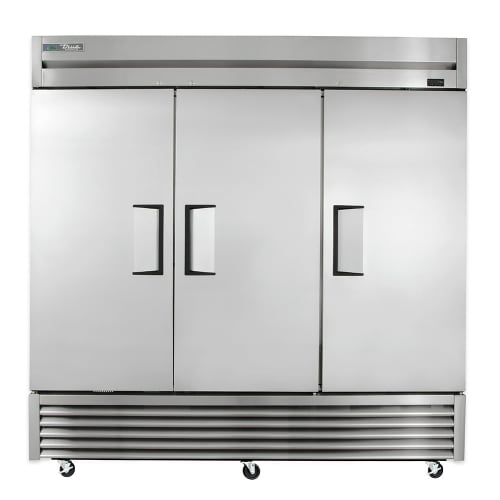

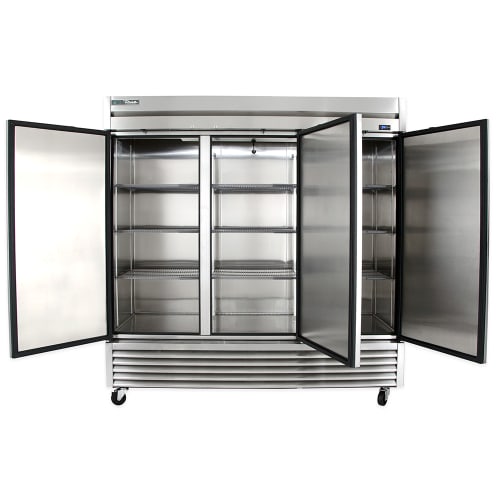

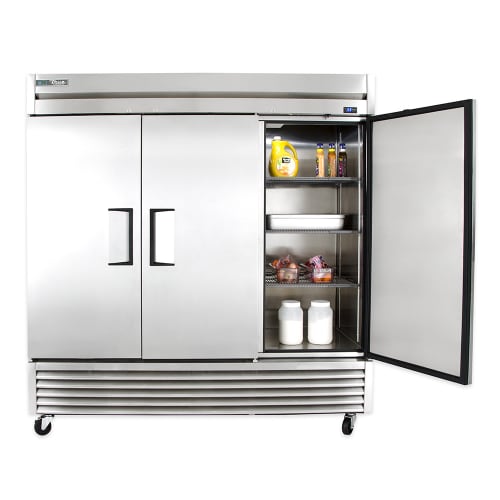

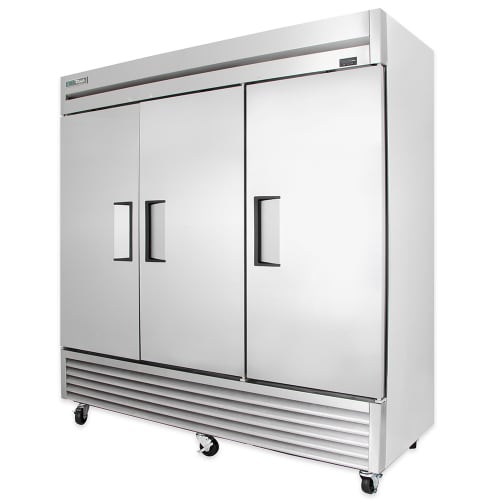

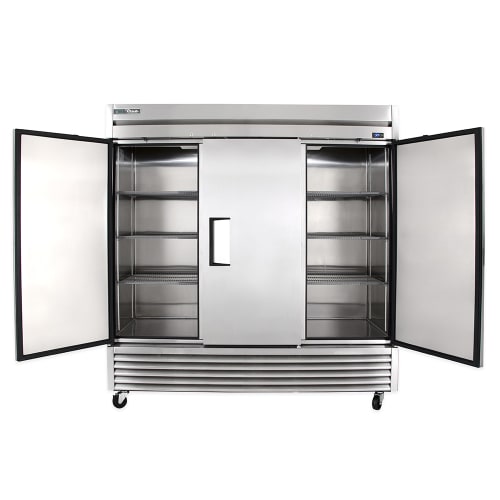

True T-72-HC 78 1/10" Three Section Reach In Refrigerator, (3) Left/Right Hinge Solid Doors, 115v

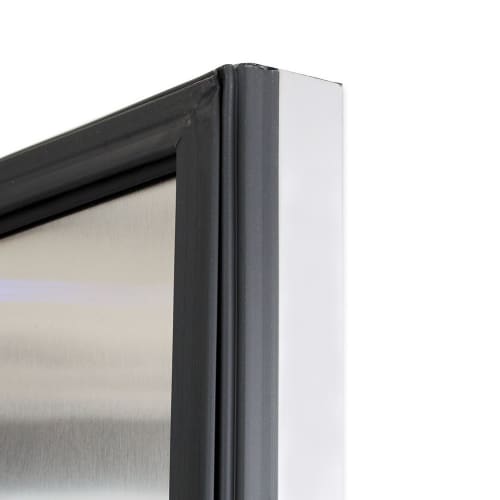

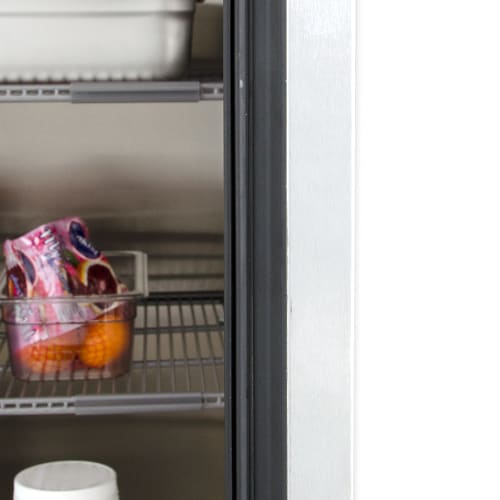

The True T-72-HC three-section refrigerator is built with a powerful compressor and large evaporator and condenser coils to maintain cacompartmentet temperatures between 33 and 38 degrees Fahrenheit. A integrated capillary tube system in the unit holds and controls the flow of R290 hydrocarbon refrigerant. For movement, 4"-diameter stem castors are bottom mounted and the front set locks for stability. Each door has a magnetic gasket that snaps into the frame to prevent cold air from seeping out. Reversing for 20 seconds when the compressor turns on, the fan motor helps remove buildup of debris, dust, and dirt to maintain a clean condensing coil. This mechanism helps it operate more efficiently over time, using less energy overall. Despite its effectiveness, users should continue to implement preventative maintenance for the coil. The equipment's condensing unit is located in the bottom of the cacompartmentet, so critical components are accessible for cleaning and maintenance. A bottom-mounted condensing unit also means the unit runs in the coolest part of the kitchen where it is less likely to capture airborne grease. For energy-efficiency, the True T-72-HC reach-in refrigerator is insulated with foamed-in-place polyurethane insulation. *Free shipping on True Refrigeration T-72-HC within the 48 contiguous states. Refrigerator, reach-in, three-section, (3) stainless steel doors, (9) PVC coated adjustable wire shelves, interior lighting, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 6.9 amps, NEMA 5-15P, cULus, UL EPH Classified Watch a video about this product Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters. WARNING: Important Prop 65 information for California residents.
Product Details
- Self-contained capillary tube system uses R290 hydrocarbon refrigerant
- Temperature range: 33-38 degrees F
- Powerful horsepower compressor is balanced with a large condenser and evaporator coils for quick temperature recovery
- Compressor fan motor blows in a reverse direction to clean condensing coil

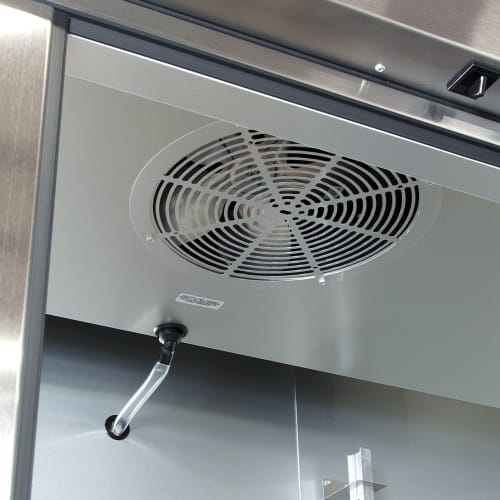

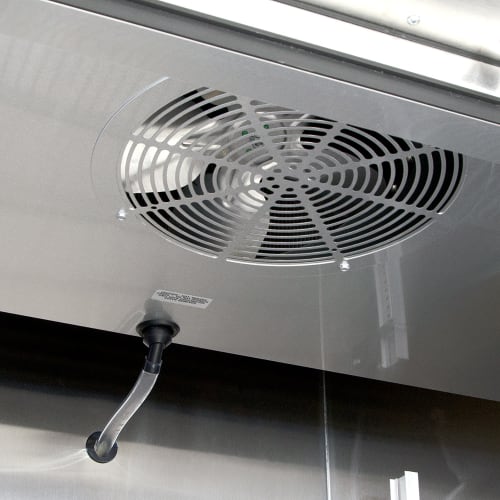

- Large evaporator fans powered by sealed, self-lubricating, cast iron motors move air through cabinet consistently for even temperatures

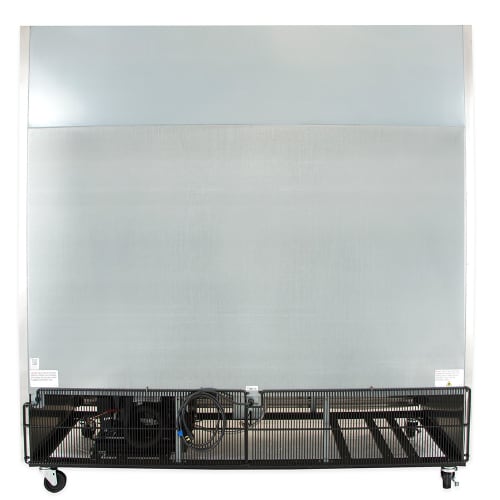

- Bottom-mounted condensing unit is accessible for cleaning and maintenance

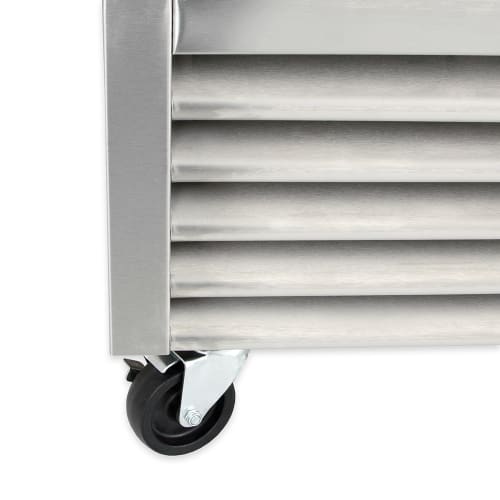

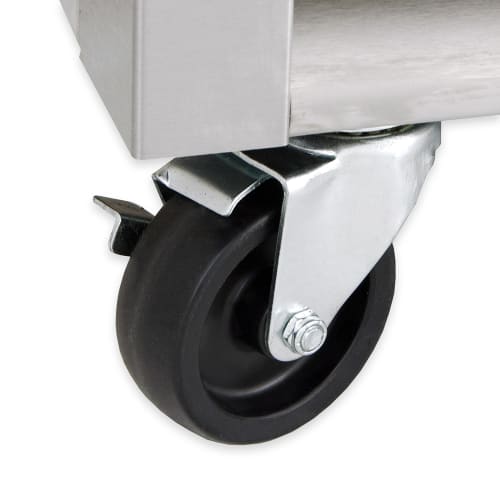

- 4-in.-dia. stem castors enable the unit to be wheeled out for cleaning underneath

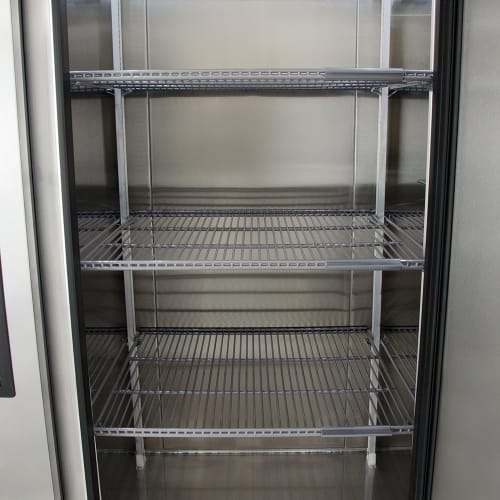

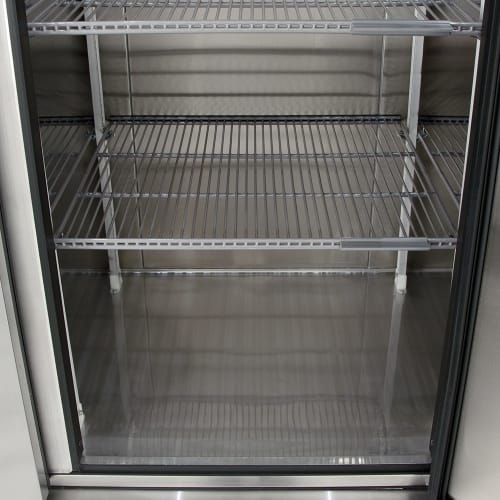

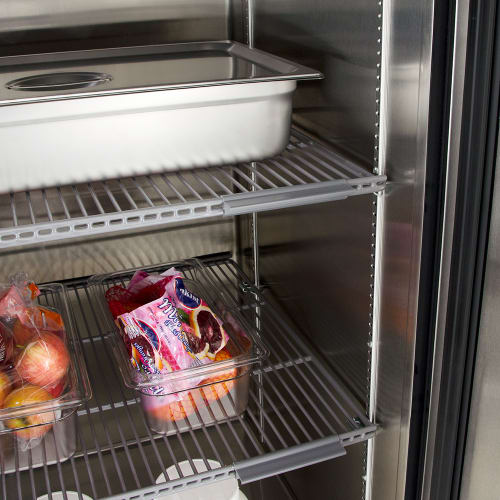

- 9 gray PVC-coated wire shelves are included

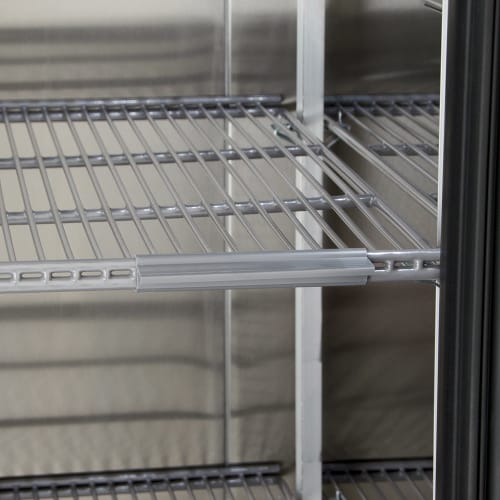

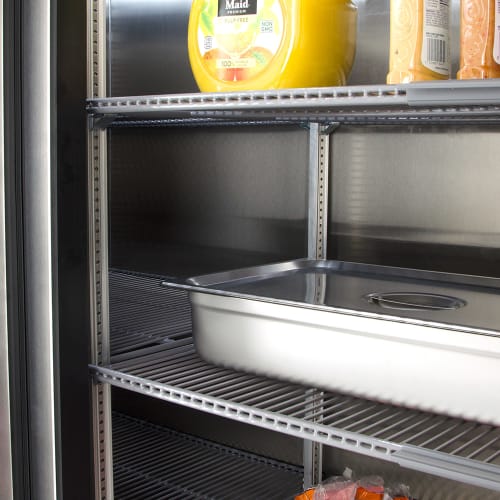

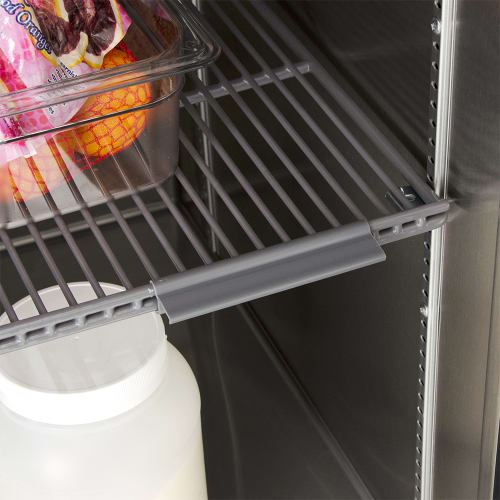

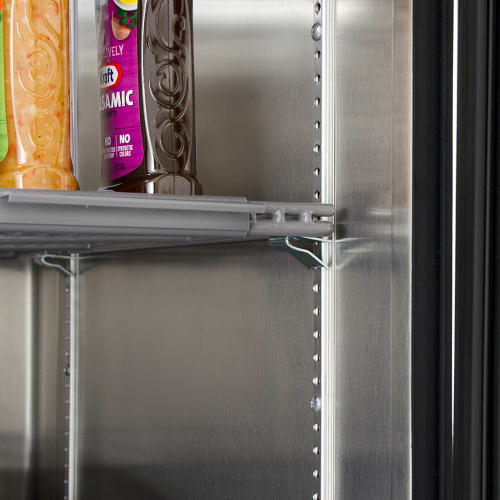

- Each shelf mounts on 4 chrome-plated clips and is adjustable along support pilaster on 1⁄2-in. increments

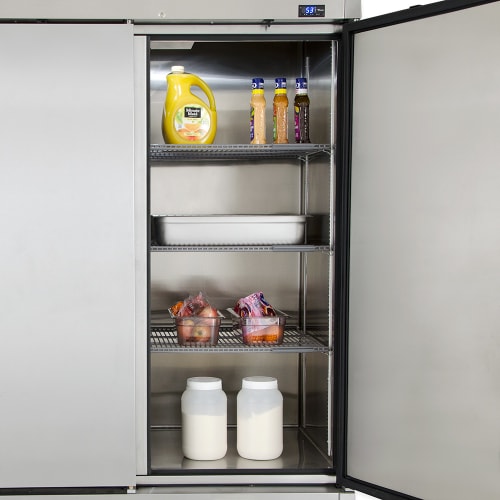

- Cabinet interior is illuminated with incandescent lighting, which is safety-shielded for break protection

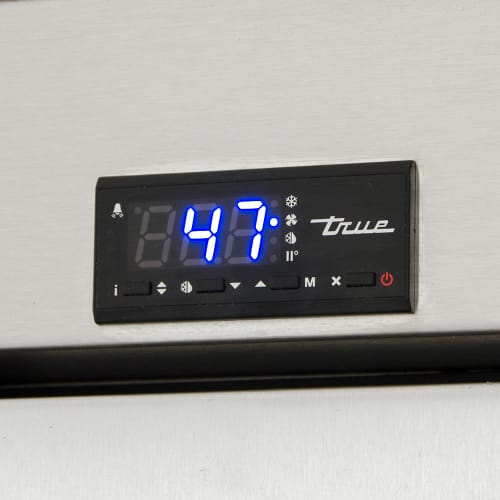

- Exterior temperature display shows internal temperatures
- Epoxy-coated evaporator is corrosion protection
Specifications
| Manufacturer: | True Refrigeration |
| Width (in): | 78.13 |
| Depth (in): | 29.5 |
| Height (in): | 78.38 |
| Weight: | 575.00 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 7-year Parts & Labor; 7-year Compressor |
| Compressor Location: | Bottom |
| Cubic Feet: | 65.6 |
| Door Type: | Solid |
| Doors: | Full |
| Hinge Configuration: | Left/Right |
| Interior Material: | Aluminum |
| NEMA: | 5-15P |
| No. of Doors: | 3 |
| Product: | Reach-In Refrigerators |
| Product Type: | Commercial Refrigeration |
| Rating: | Better |
| Refrigerant: | R290 (Hydrocarbon) |
| Sections: | 3 |
| Series: | T-Series® |
| Special Features: | Casters Included - Uninstalled |
| Type: | Reach In |
Dimensions & Utilities
- Shelves: 241⁄8 in. W x 223⁄8 in. D
- Overall: 781⁄8 in. W x 291⁄2 in. D x 835⁄16 in. H
- 6.9 A, 3⁄4 HP

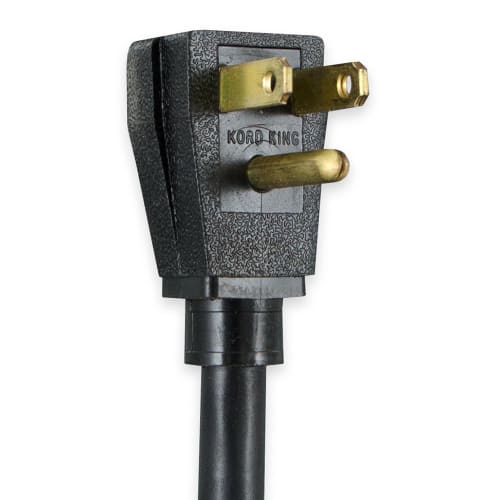

- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Refrigerator, reach-in, three-section, (3) stainless steel doors, (9) PVC coated adjustable wire shelves, interior lighting, stainless steel front, aluminum sides, aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 6.9 amps, NEMA 5-15P, cULus, UL EPH Classified
