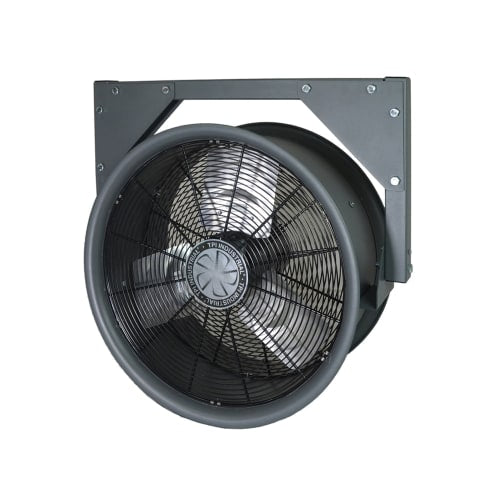

TPI HV-24-120V 24" High Velocity Fan w/ Yoke Mount - 1 Speed, Gray, 120v
*TPI HV-24-120V is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
High Velocity Fan, 24" diameter fan grill, 22" diameter blade, single speed motor, direct drive, automatic thermal protection with ball bearings, rated up to 115°F maximum ambient temperature, spiral wire front and rear guards, adjustable swivel and tilt from 0° to 180° degrees on vertical and horizontal axis, 3-paddle aluminum blade with steel hub and cast aluminum spider connections, yoke bracket enables for 5 adjustable settings, 20 gauge steel housing, gray epoxy textured powder coated finish, 373 watts, 5290 CFM High, 1/2 HP, 1725 RPM, 400 square foot coverage, 120v/60/1ph
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | TPI |
| Amps | 3.8 |
| Blade Diameter (in) | 24 |
| Blade Length (in) | 22 |
| CFM | 5290 |
| Color | Gray |
| Construction | Steel |
| Depth (in) | 13.5 |
| Height (in) | 31.4 |
| Hertz | 60 |
| HP | 0.5 |
| Material | Steel |
| Mounting Style | Yoke |
| Product | Fans |
| Product Type | Facility Maintenance |
| RPM | 1725 |
| Series | HV |
| Voltage | 120 |
| Warranty | 1-year |
| Watts | 373 |
| Width (in) | 33.3 |
| Weight | 68.00 |
