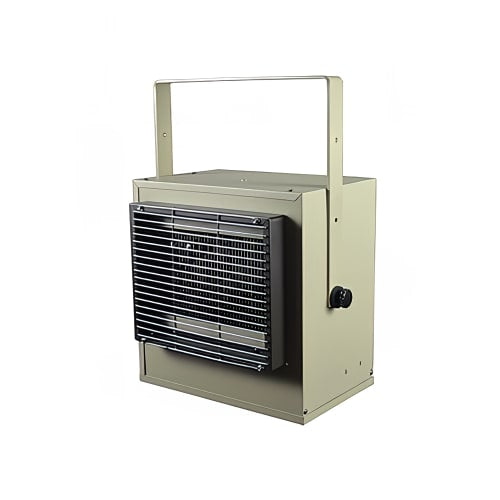

TPI HF5705T 14 2/5" Confined Space Electric Heater - 5000 watt, 208-240v
Product Details
- Temperature range: 40-120 degrees F
- 275 CFM
- Automatic reset thermal limit
- Brown/beige powder-coated finish
- 20-ga. steel construction
- Installs easily between joists
- Requires no clearance for wall and ceiling mounting
- Bracket standard or mounted by 3⁄8-in. threaded rod
- Top handle
- 17,065 maximum BTU

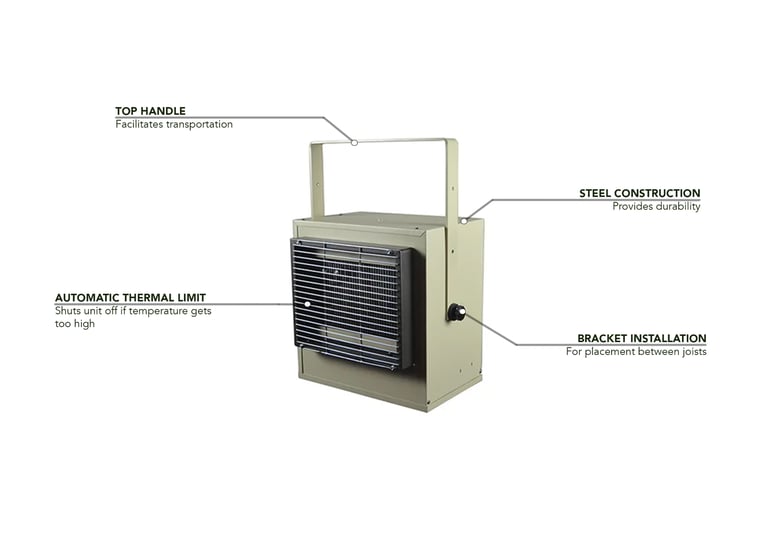

Product Features
Dimensions & Utilities
- 142/5 in. W x 11 in. D x 141/2 in. H (193/5 in. H with handle up)
- 9-21 A, 1874-5000 W
- 208-240 V/60 Hz/1 ph
*TPI HF5705T is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
*TPI HF5705T is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
Confined Space Plenum Rated Heater, Easily fits between joists for typical installation, Zero clearance for wall and ceiling mounting, Bracket standard or can be mounted by 3/8” threaded rod (field supplied), Automatic reset thermal limit for safety, 40°F to 120°F, 275 CFM, brown/beige powder coated paint finish, 20 gauge steel construction, 1874 to 5000 watt, 14.4"W x 19.4"D x 14.5"H, 208-240v/60/1ph
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | TPI |
| Amps | 21 |
| Color | Beige |
| Construction | Steel |
| Depth (in) | 19.4 |
| Heat | Electric |
| Height (in) | 19.6 |
| Hertz | 60 |
| Mounting Location | Wall/Ceiling |
| Phase | 1 |
| Product | Electric Heaters |
| Product Type | Facility Maintenance |
| Special Features | Automatic Reset Thermal Limit for Safety |
| Total BTU | 17065 |
| Type | Mounted |
| Voltage | 208/240 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 2-year Thermostat & Controls |
| Watts | 5000 |
| Width (in) | 14.4 |
| Weight | 31.50 |
