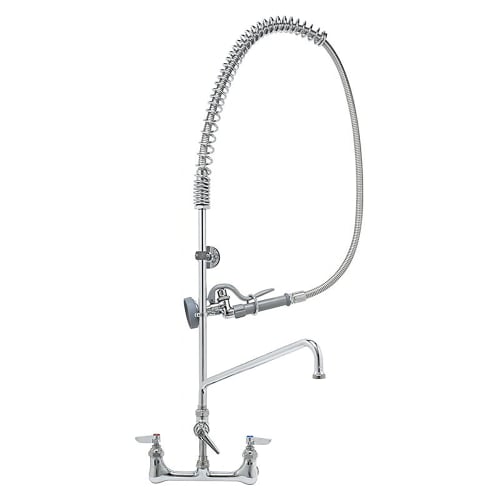

T&S B-0133-01 37 5/8"H Wall Mount Pre Rinse Faucet - 1 3/20 GPM, Base with Nozzle

Product Details

• Spring action pre-rinse unit
• 8-in. wall mount, mixing, polished chrome plated brass body faucet
• Compression cartridges control water flow
• Lever handle
• 14-in. swing nozzle with a stream regulator outlet
• 18-in. riser for easy installation
• EasyInstall add-on, polished chrome plated brass faucet
• EasyInstall lock nut and bushing
• 56-in. stainless steel, flexible hose
• Heat resistant, gray handle with hold down ring on spray valve
• Overhead support spring keeps hose in place
• Finger hook holds spray valve when not in use
• 1.42 GMP spray valve for quick heat up of water
• Eterna compression cartridges with spring checks to prevent the cross flow of water
• Color coded indexes on the chrome plated metal lever handles
• ¹⁄₂-in. NPT male inlets with 2-in.-dia. flanges
• Centers are adjustable from 7³⁄₄-8¹⁄₄-in.
• 9-in. adjustable wall bracket
• ³⁄₈-in. NPT x 18-in. riser
• Overall Dimensions: 12⁷⁄₁₆ in. W x 14¹¹⁄₁₆ in. D x 37⁵⁄₈ in. H

*Free shipping on T&S B-0133-01 within the 48 contiguous states.

From The Manufacturer

EasyInstall Pre-Rinse Unit, mixing faucet, 8" wall mount, 14" add-on 063X swing nozzle, 18" riser, overhead spring, lever handles, 56" flex hose, Eterna cartridges, spray valve (B-0107), 9" wall support (B-0109-02), 1/2" male NPT, EPAct2005 Compliant

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Installation Guide
• Product Info
