Summit BIM47OS 14 1/2"W Full Cube Undercounter Ice Machine - 50 lbs/day, Air Cooled, Pump Drain, 115v
The Summit BIM47OS full dice ice machine generates 50 lbs ice per day and can store 25 lbs inside its ice compartment, which is insulated to reduce the melting rate. For efficient cooling, it uses R134a refrigerant, and its air cooling condenser circulates the refrigerant away from the evaporator to craft its ice cubes. To monitor internal conditions and processes, its control panel features four indicator lights that notify operators when the compartment is full. The Summit BIM47OS full dice ice machine can be installed under counters or be used freestanding. Overall, it spans 141/2" wide by 251/4" deep by 33" high with a sealed back for a snug fit. Users can employ the use of its towel bar handle to access the interior, which is illuminated by blue lighting for increased visibility. For practicality, the interior wall offers an ice scoop bracket, and to increase stability, it sits on level legs. Icemaker, cube-style, built-in or freestanding, air cooling, outdoor or indoor use, 14.5"W x 25"D x 33"H, (50) lbs production/day, (25) lbs holding capacity, front-ventilation, built-in pump, (1) reversible solid hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R134a refrigerant, 115v/60/1-ph, 4.8 amps, NSF, UL, ULC, ETL-Sanitation, ENERGY STAR® (Commercial) A division of Felix Stroch, Inc., Summit Appliance delivers the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also delivers a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969. Important Prop 65 information for California residents.
Product Details
- Produces 50 pounds of ice over 24 hours
- Storage capacity: 25 lbs.
- Insulated storage bin
- Cube dimensions: 3⁄4 in. x 3⁄4 in. x 1 in.
- Cubes produced in breakable sheets
- 1 reversible door with solid hinges

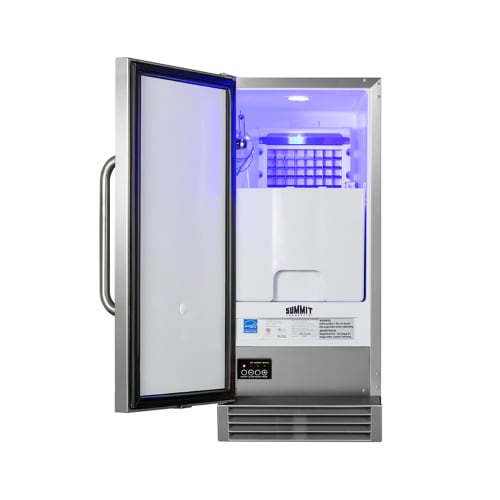

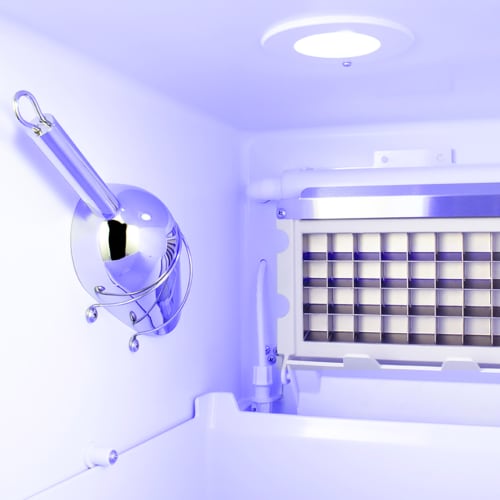

- Illuminated interior
- Towel bar-style handle
- Stainless steel exterior featuring sealed back

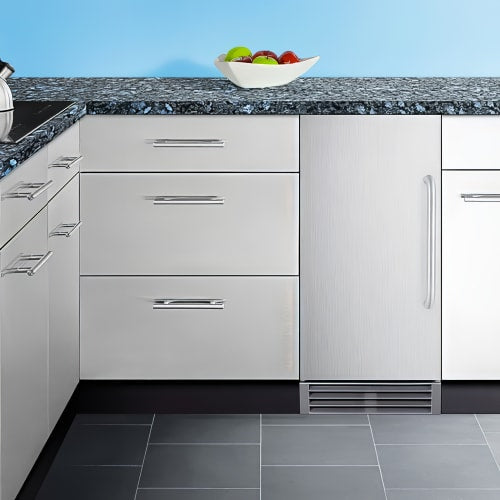

- Can be built-in under countertops or used freestanding
- Compatible with indoor or outdoor use
- Leveling legs increase stability

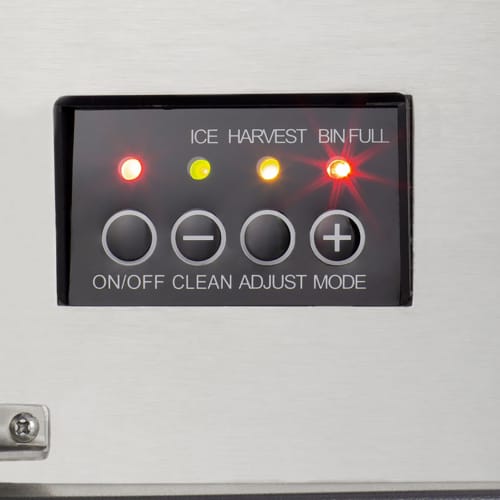

- Interior touch control panel

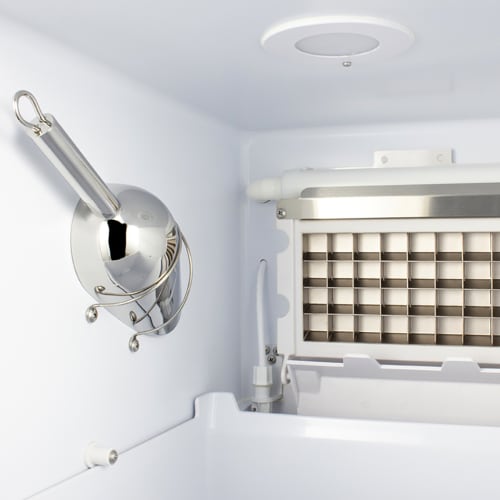

- Includes ice scoop
Specifications
| Manufacturer: | Summit |
| Width (in): | 14.5 |
| Depth (in): | 25 |
| Height (in): | 33 |
| Weight: | 115.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 1-year Limited Parts & Labor; 5-year Compressor Parts |
| 24 Hr. Production (lb): | 50 |
| Bin Capacity (lb): | 25 |
| Compressor Type: | Air Cooled |
| Design: | Standard Height |
| Drain Type: | Pump |
| Front Style: | Stainless Door |
| Ice Type: | Full Cube |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Good |
| Refrigerant: | R134a |
| Special Features: | Outdoor Rated |
| Suggested Use: | Outdoor |
Dimensions & Utilities
- Overall: 141/2 in. W x 25 in. D x 33 in. H
- Interior: 12 in. W x 16 in. D x 181⁄2 in. H
- 3/8-in. dia. water inlet connection
- 3/4-in. dia. drain connection
- 4.8 A
- 115 V/60 Hz/1 ph
Downloads
From The Manufacturer
Icemaker, cube-style, built-in or freestanding, air cooling, outdoor or indoor use, 14.5"W x 25"D x 33"H, (50) lbs production/day, (25) lbs holding capacity, front-ventilation, built-in pump, (1) reversible solid hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R134a refrigerant, 115v/60/1-ph, 4.8 amps, NSF, UL, ULC, ETL-Sanitation, ENERGY STAR® (Commercial)
