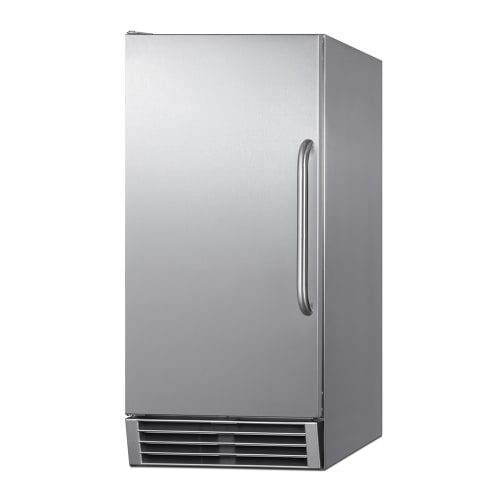

Summit BIM44GCSSADA 14 1/2"W Full Cube Undercounter Ice Machine - 50 lbs/day, Air Cooled, ADA, Pump Drain, 115v
For office break rooms or residential kitchens, the Summit BIM44GCSSADA full dice undercounter ice machine generates 50 lbs ice each day, while its built-in storage compartment can hold as much as 25 lbs. So the ice cubes stay frozen for extended periods, the storage compartment is fully insulated. To maintain ideal internal temperatures, it operates using R134a refrigerant via its air cooling condenser. Its integrated manual defrost mechanism heats the coils when excess frost is detected, lowering maintenance needs. Overall, the Summit BIM44GCSSADA undercounter ice maker spans 141/2" wide by 25" deep by 3219/50" high and offers a sealed back that can be placed directly against walls. For optimized control, it has an interior-mounted control panel with indicator lights for each stage of production; to enhance visibility, its interior is illuminated with blue lighting. To enhance sanitation and minimize direct contact with ice, the interior wall offers a bracket that can hold an ice scoop. So users can configure this unit to fit the desired space, its door is reversible, and for a streamlined appearance it sports a towel bar handle. For stable placement on uneven flooring, this unit sits on leveling legs. Icemaker, cube-style, built-in or freestanding, air cooling, 14.5"W x 25"D x 32.38"H, (50) lbs production/day, (25) lbs holding capacity, front-ventilation, built-in pump, (1) reversible solid hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R134a refrigerant, 115v/60/1-ph, 4.8 amps, NSF, UL, ULC, ETL-Sanitation, ENERGY STAR® (Commercial) A division of Felix Stroch, Inc., Summit Appliance delivers the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also delivers a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969. Important Prop 65 information for California residents.
Product Details
- Produces 50 lbs. in 24 hours
- Holding capacity: 25 lbs.
- Freestanding/undercounter configuration
- Insulated storage bin
- Produces sheets of ice cubes
- Cube dimensions: 3⁄4 in. x 3⁄4 in. x 1 in.
- 1 reversible, solid-hinged door

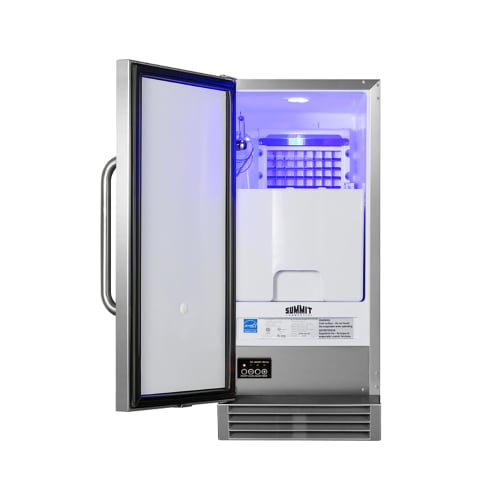

- Interior lighting
- Towel bar handle
- Stainless steel finish and sealed back
- Leveling legs adjust to uneven surfaces

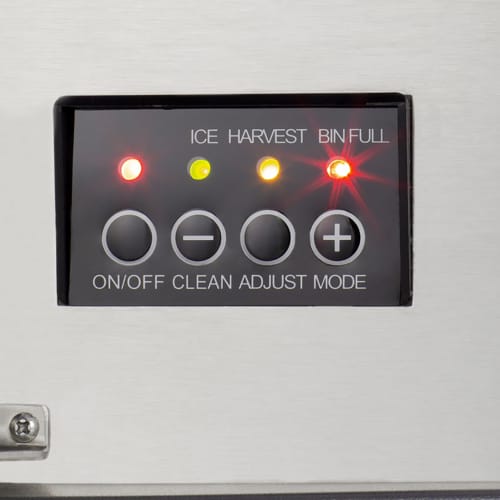

- Interior control panel with touch controls
- Ice scoop included
Specifications
| Manufacturer: | Summit |
| Width (in): | 14.5 |
| Depth (in): | 25 |
| Height (in): | 32.38 |
| Weight: | 115.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 1-year Limited Parts & Labor; 5-year Compressor Parts |
| 24 Hr. Production (lb): | 50 |
| Bin Capacity (lb): | 25 |
| Compressor Type: | Air Cooled |
| Design: | ADA Height |
| Drain Type: | Pump |
| Front Style: | Stainless Door |
| Ice Type: | Full Cube |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Good |
| Refrigerant: | R134a |
| Suggested Use: | Home/Office |
Dimensions & Utilities
- Overall: 141/2 in. W x 25 in. D x 3219/50 in. H
- Interior: 12 in. W x 16 in. D x 181⁄2 in. H
- 3/8-in. dia. water inlet connection
- 3/4-in. dia. drain connection
- 4.8 A
- 115 V/60 Hz/1 ph
Downloads
From The Manufacturer
Icemaker, cube-style, built-in or freestanding, air cooling, 14.5"W x 25"D x 32.38"H, (50) lbs production/day, (25) lbs holding capacity, front-ventilation, built-in pump, (1) reversible solid hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R134a refrigerant, 115v/60/1-ph, 4.8 amps, NSF, UL, ULC, ETL-Sanitation, ENERGY STAR® (Commercial)
