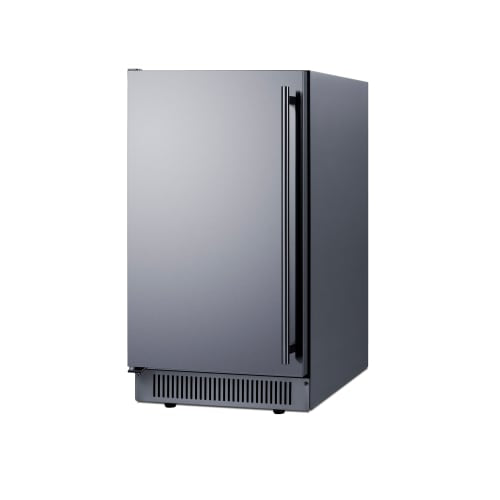

Summit BIM182ADALHD 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled, ADA
Designed with a space-saving footprint, the Summit BIM182ADALHD undercounter ice machine features front-ventilation, air cooling operation and a built-in drain pump. This icemaker generates up to 60 lbs of clear, full dice ice in a daily cycle and holds 33 lbs in its insulated internal compartment. To address various product needs, this unit has the capability of producing three different ice sizes: small, medium, and large, and the touch control panel is used for cube size selection and delivers intuitive indicators throughout the production process. The Summit BIM182ADALHD ice machine is constructed of stainless steel for long-lasting use and a sleek exterior. With a built-in design and slim 173⁄4" width, it can be installed beneath countertops. The plastic interior is accessed through a left-hinged, solid door. Its auto defrost reduces staff interference, while the interior compartment is both removable and insulated. An integrated UV light enhances sanitation by targeting bacteria during operation. To help maintain consistent temperatures during use, this unit is equipped with foamed-in-place polyurethane insulation. Icemaker, cube-style, built-in or freestanding, air cooling, 17-3/4"W x 25-1/4"D x 32-1/2"H, ADA height compliant, (60) lbs production/day, (33) lbs holding capacity, front-ventilation, built-in pump, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial) A division of Felix Stroch, Inc., Summit Appliance delivers the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also delivers a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969. Important Prop 65 information for California residents.
Product Details
- BIM182 series
- Suited for undercounter or freestanding installation
- Produces up to 60 lbs. of ice daily
- Makes full cube ice in 3 sizes: small, medium, or large
- Removable bin with 33-lb. storage volume
- Stainless steel exterior and door
- Plastic interior
- Steel frame
- Foamed-in-place polyurethane insulation
- Left-hinged door with solid panel

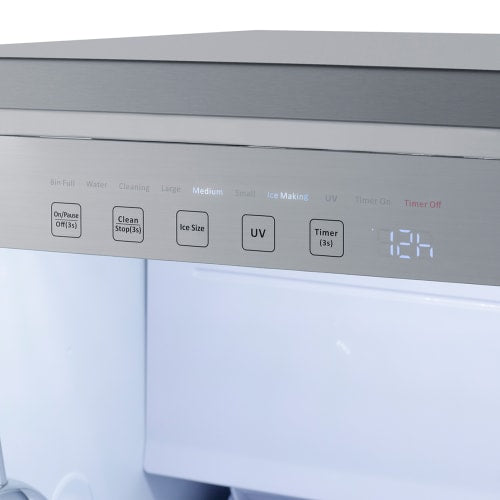

- Touch control panel with ice size selection
- LED interior lighting
- Built-in UV light
- 4 leveling legs
Specifications
| Manufacturer: | Summit |
| Width (in): | 17.75 |
| Depth (in): | 25.25 |
| Height (in): | 32.5 |
| Weight: | 75.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 1-year Limited Parts & Labor; 5-year Compressor |
| 24 Hr. Production (lb): | 60 |
| Bin Capacity (lb): | 33 |
| Compressor Type: | Air Cooled |
| Design: | ADA Height |
| Drain Type: | Pump |
| Front Style: | Stainless Door |
| Ice Type: | Full Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Good |
| Refrigerant: | R290 (Hydrocarbon) |
| Series: | BIM182 Series |
| Special Features: | Removable & Insulated Bin |
| Suggested Use: | Home/Office |
Dimensions & Utilities
- Interior: 143/4 in. W x 163/4 in. D x 183/4 in. H
- Overall: 173⁄4 in. W x 251⁄4 in. D x 321⁄2 in. H
- 11.8 A
- 115 V/60 Hz/1 ph
Downloads
From The Manufacturer
Icemaker, cube-style, built-in or freestanding, air cooling, 17-3/4"W x 25-1/4"D x 32-1/2"H, ADA height compliant, (60) lbs production/day, (33) lbs holding capacity, front-ventilation, built-in pump, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)
