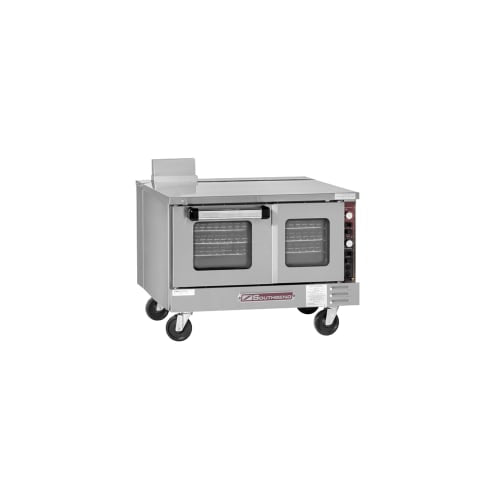

Southbend TVGS/12SC TruVection Single Full Size Natural Gas Convection Oven - 52,000 BTU

Product Details

• Part of the TV-Series
• Heated by natural gas
• Stainless steel exterior is durable and resistant to corrosion
• Coved interior has a porcelain enamel finish
• Hot surface ignitor with a flame safety device enables electronic ignition
• Interior blower fan circulates air within the cabinet for even heat distribution
• Non-clogging in-shot burners
• 2 recessed 40-W-high temperature lamps inside the oven cavity
• Soft air, 2-speed fan motor
• (4) 6-in. stainless steel legs
• 3 wire racks included
• Durable removable wire rack guides offer 5 different rack positions
• Wire rack guides are spaced on 1⁵⁄₈-in. centers
• Cannot operate without a fan
• Vented hood recommended
• Requires 2-in. left clearance from combustible surfaces
• Requires (1) 1-in. female connection
• Required minimum inlet pressure for natural gas: 7-in. W.C.
• 52,000 BTU
• 7.9 A, ¹⁄₂ HP, 1710/1120 rpm
• 120 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
• Overall dimensions: 29 in. W x 21.5 in. D x 14 in. H

From The Manufacturer

TruVection Convection Oven, gas, low-profile, single deck, electronic ignition, 150-550°F solid state thermostatic controls, 60 minute mechanical cook timer, oven interior light, cool down fan, features (3) racks, porcelain oven interior, stainless steel door handle, front, sides, top & 6" legs, 1/2 HP, 52,000 BTU, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Manual
• Brochure
