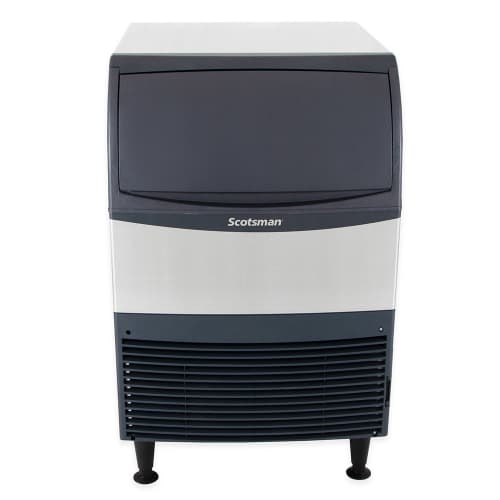

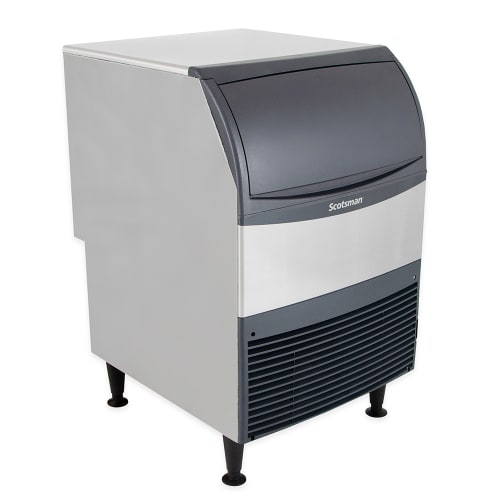

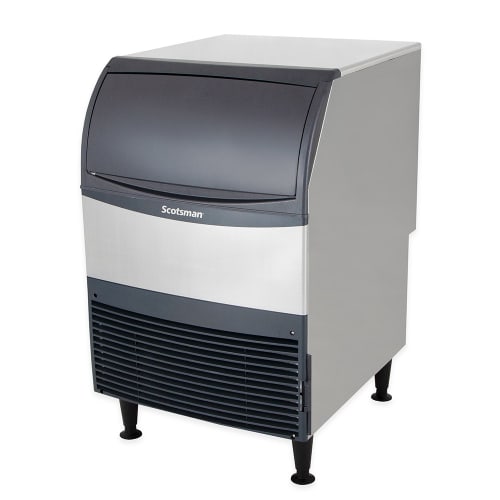

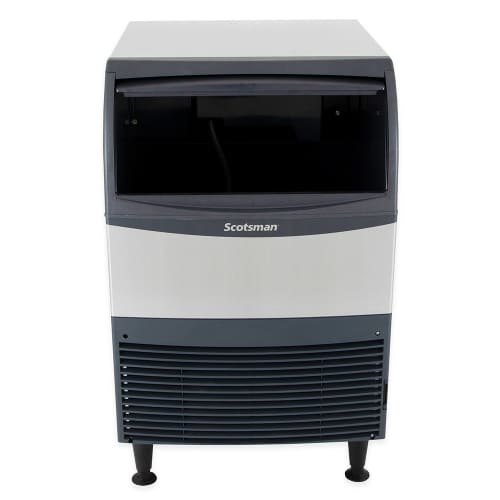

Scotsman UN324A-1 28 1/2"W Nugget Undercounter Ice Machine - 340 lbs/day, Air Cooled
The Scotsman UN324A-1 undercounter nugget ice machine can produce 340 lbs of nugget ice each day, but this amount decreases in warmer conditions. Nugget ice is soft, chewable, and it can be used in frozen drinks, fountain beverages, healthcare establishments, and more. The unit has an 80-pound-capacity storage compartment—made accessible because the lid slides back—while the included ice scoop prevents contact between ice and hands. This Scotsman UN324A-1 undercounter ice maker is simple to operate with its intuitive control panel. A QR code is included for checking service information and warranty history of the unit. It has a stainless steel evaporator that withstands heavy use and an external air filter that is accessible from the front for cleaning. *Free shipping on Scotsman UN324A-1 within the 48 contiguous states. Undercounter Ice Maker with Bin, nugget style, air cooled, 24" width, self contained condenser, production capacity up to 340 lb production/24 hours at 70°/50° (266 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, H2 Nugget Ice, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, includes 6" adjustable legs, 115v/60/1-ph, includes 5.5' power cord with NEMA 5-15P plug, cULus, NSF, engineered and assembled in USA Watch a video about this product Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries. Important Prop 65 information for California residents.
Product Details
- 340-lb. maximum daily ice production
- 266-lb. AHRI-certified daily ice production
- 80-lb. storage bin capacity

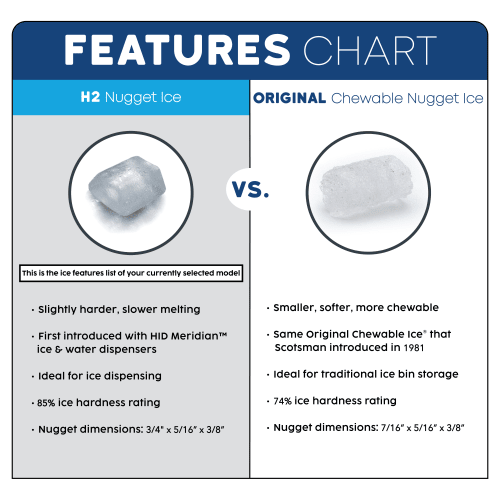

- Makes chewable nugget ice
- User-friendly control panel for intuitive operation
- Air-cooled condensing unit

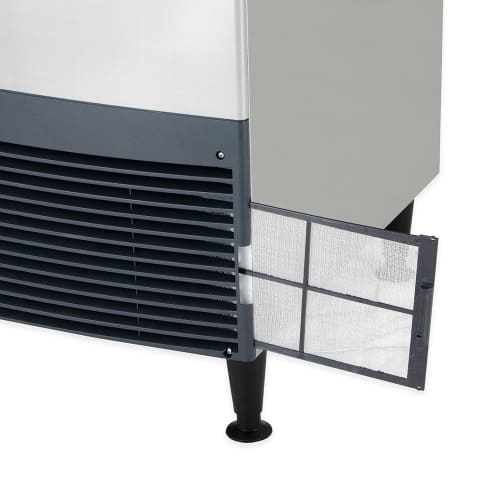

- External air filter is front accessible for convenient cleaning
- Stainless steel evaporator is durable for high-volume settings
- Uses R134A refrigerant
- Reliable, low-maintenance, greaseless bearing
- Unique QR code provides information for servicing and warranty history

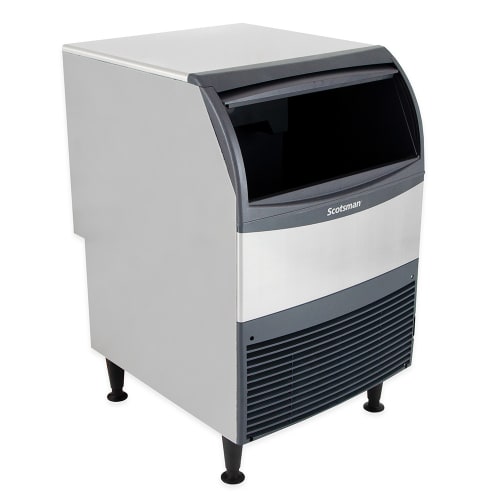

- Convenient, slide-back bin door
- Ice scoop is included
- 3,000-BTU heat transfer capacity
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
Specifications
| Manufacturer: | Scotsman |
| Width (in): | 24 |
| Depth (in): | 28.5 |
| Height (in): | 39 |
| Weight: | 210.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| 24 Hr. Production (lb): | 340 |
| Bin Capacity (lb): | 80 |
| Compressor Type: | Air Cooled |
| Design: | Standard Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Nugget |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R134a |
| Series: | Essential Ice™ |
| Special Features: | Sealed, Maintenance-Free Bearings |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 24 in. W x 281/2 in. D x 39 in. H
- 5.47 kW
- 115 V/60 Hz/1 ph, cord
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer

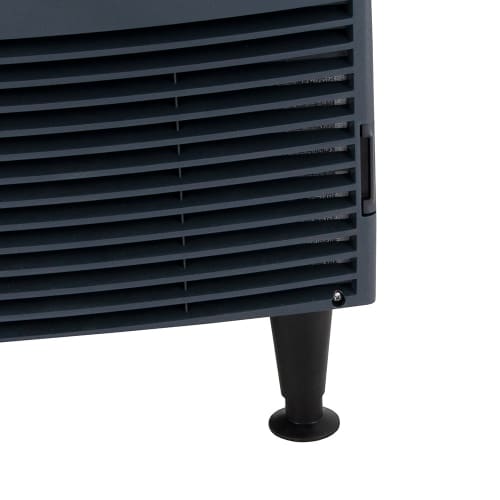

Undercounter Ice Maker with Bin, nugget style, air cooled, 24" width, self contained condenser, production capacity up to 340 lb production/day at 70°/50° (266 lb AHRI certified at 90°/70°), 80 lb compartment storage capacity, H2 Nugget Ice, sealed maintenance-free bearings, stainless steel auger & evaporator, front facing removable air filter, recessed utility chase, unit specific QR code, ice scoop, features 6" leveling feet, 115v/60/1-ph, features 5.5' power cord with NEMA 5-15P plug, cULus, NSF, engineered and assembled in USA
