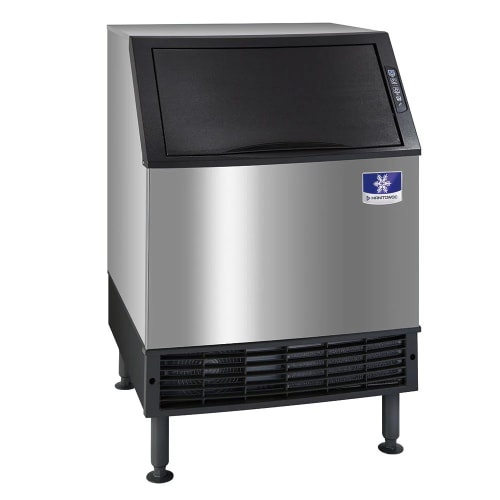

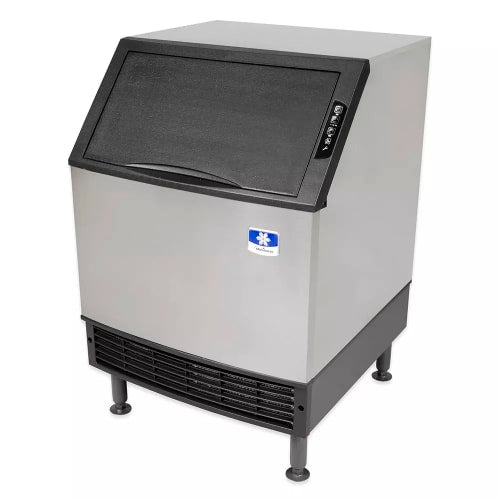

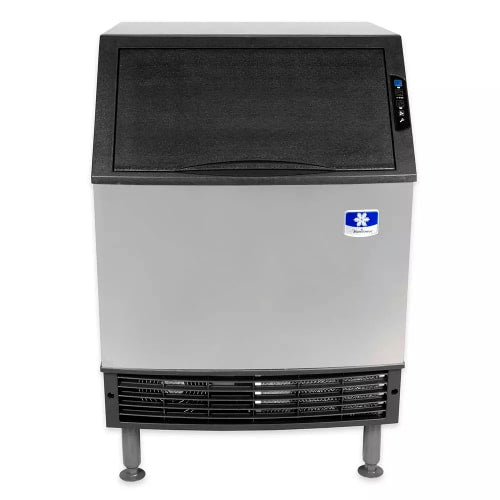

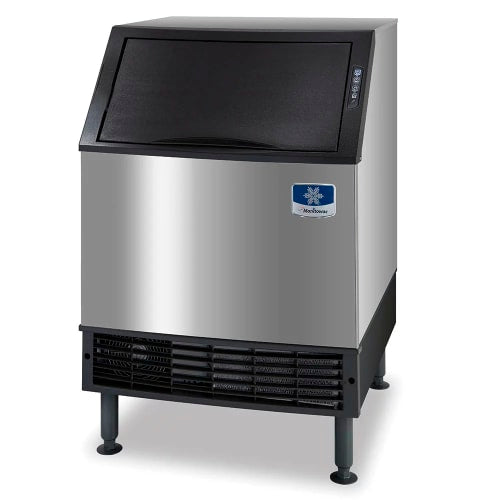

Manitowoc Ice UYF0190A 26"W Half Cube NEO Undercounter Ice Machine - 193 lbs/day, Air Cooled
If the ambient air is 70 degrees Fahrenheit and the incoming water is 50 degrees Fahrenheit, this Manitowoc unit UYF0190A NEO® undercounter ice machine makes 193 lbs ice each day, though at higher temperatures, it will produce less. With the half-dice ice, small cubes that pack together tightly, operators can displace a lot of water so glasses require less beverage to fill. However, this kind of ice also melts quicker than larger, full-size options. Throughout the day, ice collects in the built-in, 90-pound-capcity storage compartment, which helps keep ice cold and ready for use during busy hours. For slow hours, operators can either let ice pile up in the compartment, or use the delay function to pause ice production, reducing water usage. When this Manitowoc unit UYF0190A undercounter ice maker needs cleaning or servicing, components can be accessed through the storage compartment, which slides off the front. Several parts contain the antimicrobial agent AlphaSan® to slow bacterial growth, while other parts can be removed for thorough cleaning. *Free shipping on Manitowoc Ice UYF0190A within the 48 contiguous states. NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 193 lb/24 hours at 70°/50° (140 lb AHRI certified at 90°70°), 90 lb ice storage capacity, electronic controls, half dice size cubes, 6" adjustable legs with flanged feet (painted gray), 0.42 HP, NSF, cULus, CE, 115v/60/1ph Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Part of the NEO ice maker series
- 193-lb. maximum daily ice production
- 140-lb. AHRI-certified daily ice production

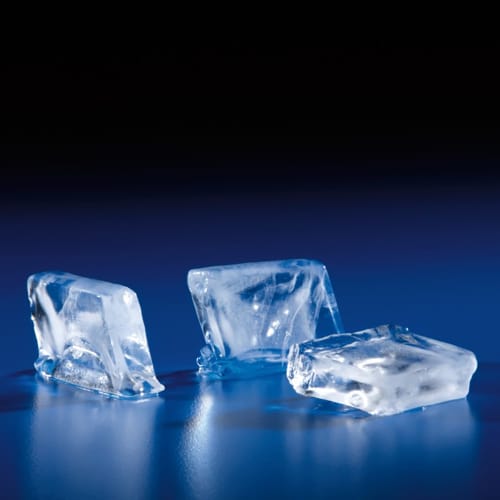

- Makes half-dice ice cubes

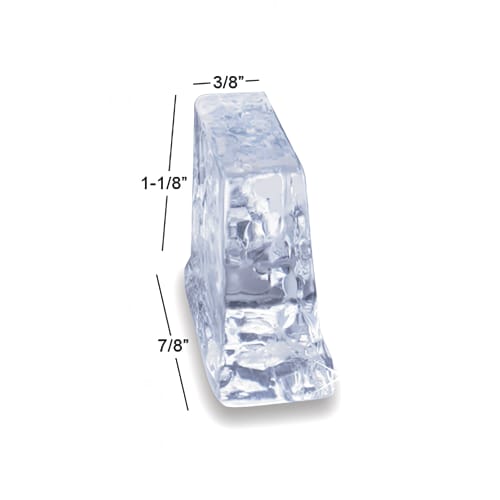

- Half dice ice size: 3⁄8 in. x 7⁄8 in. x 11⁄8 in.
- Produces more ice than previous models while using less water and energy

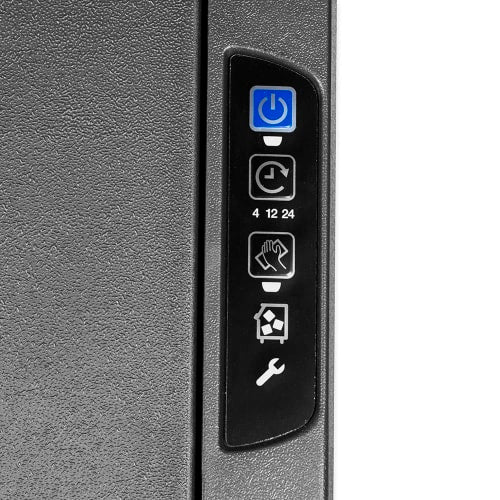

- Delay function pauses operation during slow or closed periods
- 90-lb. storage bin with full-bin indicator
- Service indicator warns operators of maintenance needs

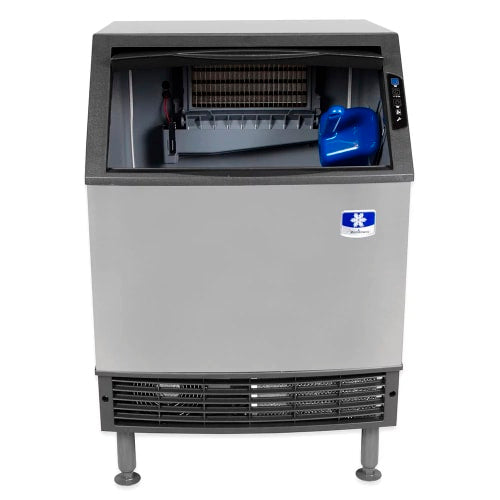

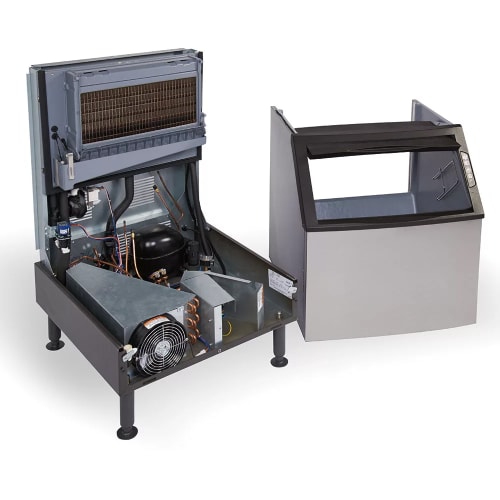

- Refrigeration components are front accessible behind the sliding bin
- Sealed food zone’s removable water trough, damper door, and distribution tube facilitate cleaning
- Integrated AlphaSan agent slows bacteria growth in key components

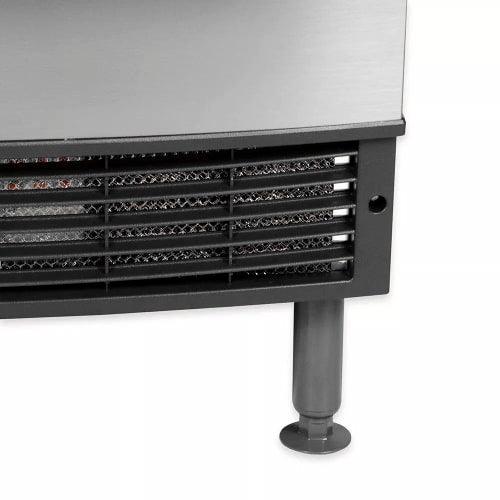

- 6-in. adjustable legs with flanged feet
- Replaces the UY-0190A
- 2,150 average BTU; 2,600 peak BTU
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 26 |
| Depth (in): | 28.5 |
| Height (in): | 38.5 |
| Weight: | 153.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year; 5-year Compressor Parts |
| 24 Hr. Production (lb): | 193 |
| Also Known As: | UY-0190A |
| Bin Capacity (lb): | 90 |
| Compressor Type: | Air Cooled |
| Design: | Standard Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Half Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | NEO® |
| Special Features: | Removable Air Filter |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 26 in. W x 28.5 in. D x 38.5 in. H
- 6 A, 8.3 kW, 0.42 HP

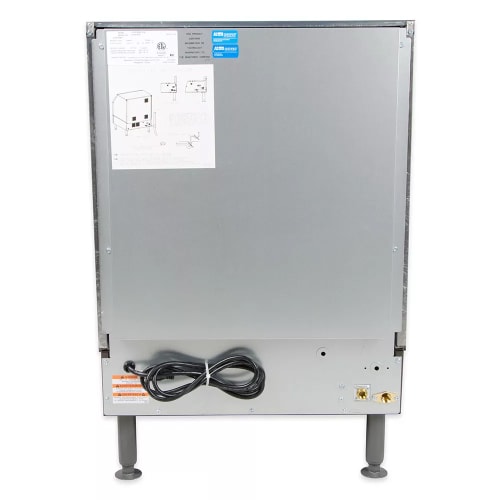

- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
- *Free shipping on Manitowoc Ice UYF0190A within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, air cooling, self contained, 26"W x 28"D x 38-1/2"H, production capacity up to 193 lb/day at 70°/50° (140 lb AHRI certified at 90°70°), 90 lb ice storage capacity, electronic controls, half dice size cubes, 6" leveling feet with flanged feet (painted gray), 0.42 HP, NSF, cULus, CE, 115v/60/1ph
