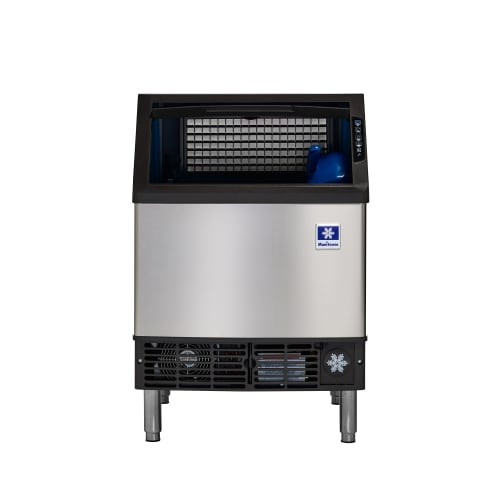

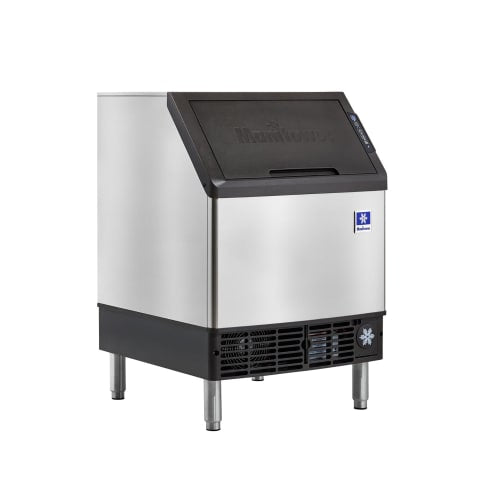

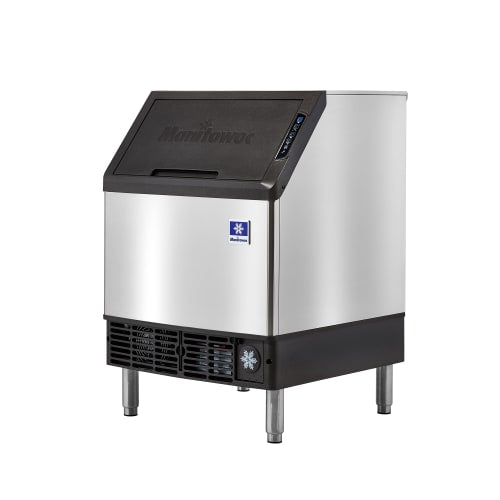

Manitowoc Ice UDP0140A 26"W NEO® Full Cube Undercounter Ice Machine - 140 lbs/day, Air Cooled, Integrated Water Filter
Perfect for space-limited professional kitchens, this Manitowoc unit UDP0140A NEO® full dice undercounter ice machine spans 26" in width and offers a front-ventilation layout for flush-mount installation. It generates up to 140 lbs of cube ice daily and holds 90 lbs in an insulated, detachable compartment. The machine offers a 5-micron onboard water filter that enhances ice clarity and reduces internal buildup over time. For quick access to key components, this unit offers a forward-sliding compartment. The Manitowoc Ice UDP0140A NEO full cube undercounter ice machine is fitted with an integrated, air-circulation cooling system and a 1/2-horsepower compressor. An intuitive control panel delivers access to core functions and features indicator lights for cleaning, service, filter replacement, and compartment status. Built for optimal performance, it features 6" leveling feet for easier setup on irregular surfaces. *Free shipping on Manitowoc Ice UDP0140A within the 48 contiguous states. NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, air-cooled, self-contained, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 140 lbs./24 hours at 70/50 (110 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, touchpad controls, clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable legs, Energy Star, NSF, CE, cULus, AHRI Watch a video about this product Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- NEO series
- Undercounter configuration
- Produces full cube (dice-style) ice
- Up to 140 lbs. ice production per 24 hours
- 110 lbs. AHRI-certified production at 90 degrees/70 degrees F

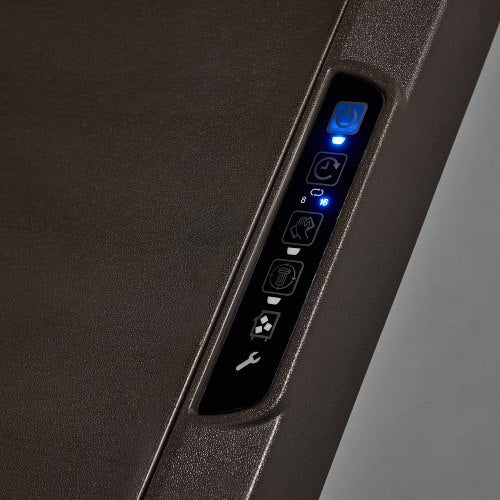

- Touchpad control panel with on/off button
- Delay mode
- Clean cycle button
- Full bin indicator light
- Integrated water filtration
- Filter change indicator
- Integrated 5-micron water filtration system
- Gravity drain connection
- Includes 6-in. adjustable legs
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 26 |
| Depth (in): | 28.5 |
| Height (in): | 38.5 |
| Weight: | 160.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 3-year Labor Compressor |
| 24 Hr. Production (lb): | 140 |
| Also Known As: | UDF0140A |
| Bin Capacity (lb): | 90 |
| Compressor Type: | Air Cooled |
| Design: | Standard Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Full Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R290 (Hydrocarbon) |
| Series: | NEO® |
| Special Features: | Removable Air Filter |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 26 in. W x 281⁄2 in. D x 381⁄2 in. H
- 5 A, 1/2 HP
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
NEO® Undercounter Ice Maker, R290 Refrigerant, integrated on-board water filtration included, dice size ice, air cooling, integrated, 26"W x 28-1/2"D x 38-1/2"H, production capacity up to 140 lbs./day at 70/50 (110 lbs. AHRI certified at 90/70), 90 lbs. storage capacity, integrated 5 micron water filer, control panel controls, clean button, filter replacement, full compartment, and service indictors, forward sliding storage compartment for access to refrigeration components, 6"leveling feet, Energy Star, NSF, CE, cULus, AHRI
Perfect for space-limited professional kitchens, this Manitowoc unit UDP0140A NEO® full dice undercounter ice machine spans 26" in width and offers a front-ventilation layout for flush-mount installation. It generates up to 140 lbs of cube ice daily and holds 90 lbs in an insulated, detachable compartment. The machine offers a 5-micron onboard water filter that enhances ice clarity and reduces internal buildup over time. For quick access to key components, this unit offers a forward-sliding compartment.
