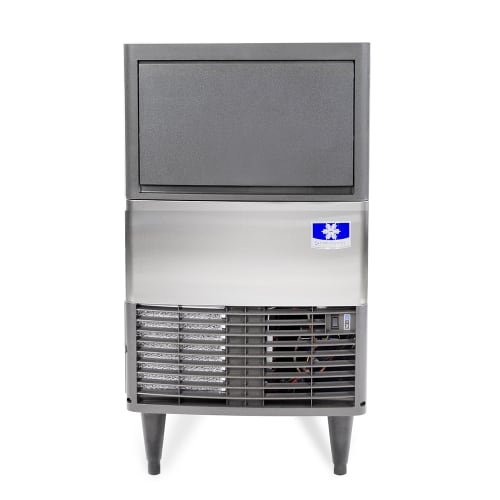

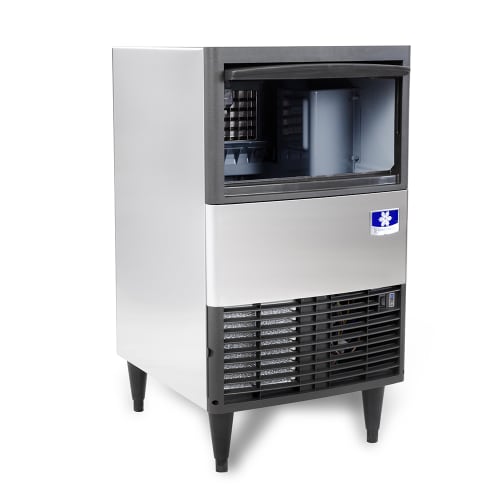

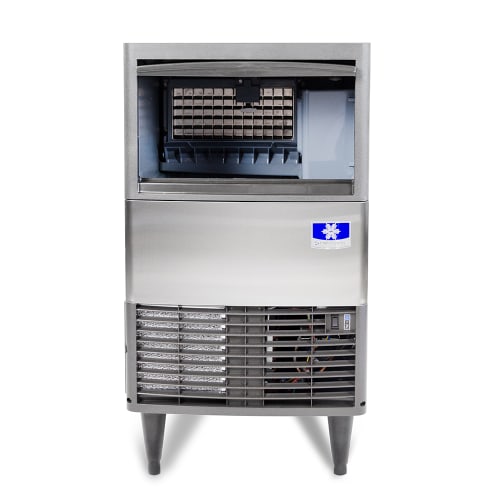

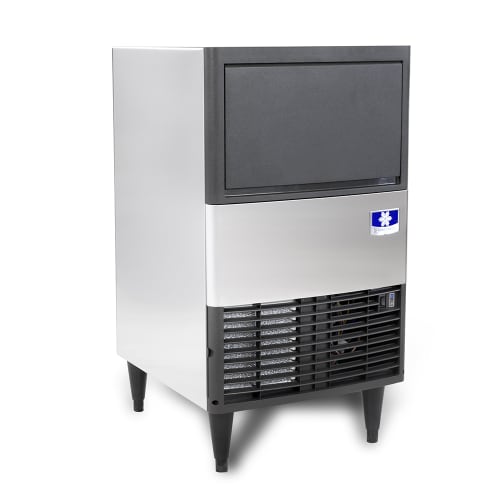

Manitowoc Ice UDE0080A 19 11/16" W Full Cube NEO Undercounter Ice Machine - 102 lbs/day, Air Cooled

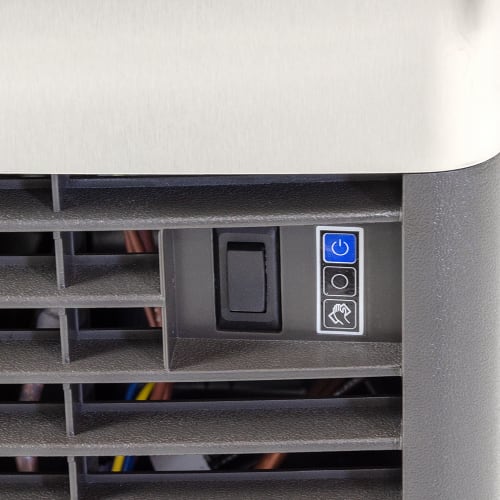

Making ice for cocktails and soft drinks, this Manitowoc unit UDE0080A NEO® ice machine generates dice ice, which is also known as full dice ice. In day, it can make 102 lbs and its storage compartment holds as much as 31 lbs. Made of polyethylene, the compartment liner is strong, seamless, and eases cleaning. Users can access the ice through the sliding door, which moves up and out of the way. With a narrow, 19.69" width, this Manitowoc Ice UDE0080A undercounter ice machine can fit in space-saving areas under the counter or stand alone. Its legs are adjustable to accommodate slightly uneven flooring, and for durability and rust resistance, the cacompartmentet is constructed of stainless steel. Internal components are made with AlphaSan® antimicrobial protection to protect the unit between cleanings. *Free shipping on Manitowoc Ice UDE0080A within the 48 contiguous states. NEO® Undercounter Ice Maker, cube-style, air-cooled, self contained, 19-11/16"W x 22-11/32"D x 36"H, production capacity up to 102 lb/24 hours at 70°/50° (71 lb at 90°/70°), 31 lb ice storage capacity, on/off/clean switch, dice size cubes, 6" adjustable legs, NSF, cULus, CE, Replaces QM-45A, 115v/60/1ph Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Part of the NEO ice maker series
- 102-lb. maximum daily ice production
- Makes full-cube ice for soft drinks and cocktails

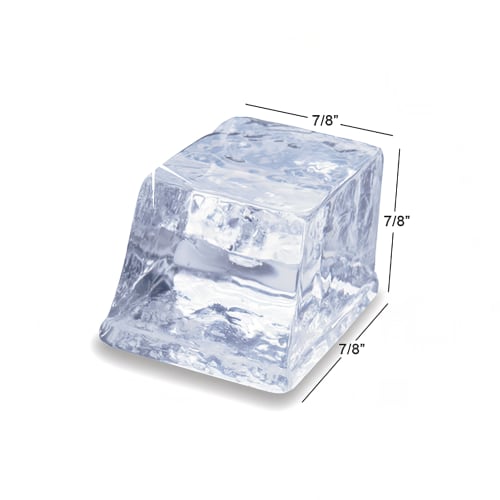

- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- 31-lb. ice storage bin

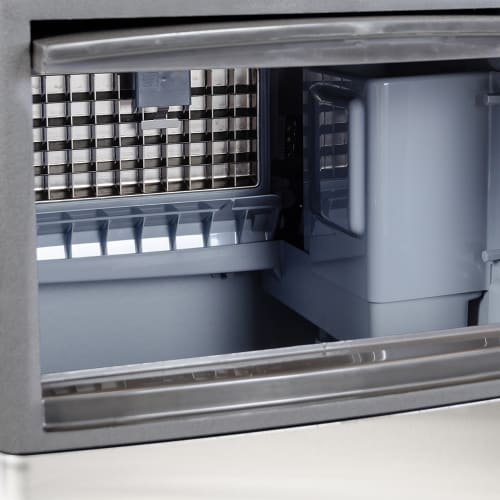

- Polyethylene bin liner is seamless to ease cleaning

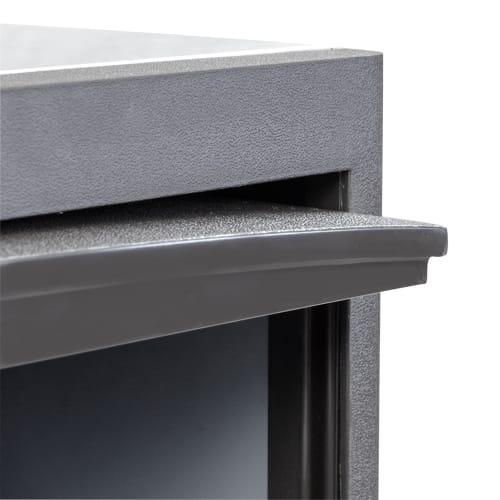

- Bin access door enables convenient ice access by sliding up and out of the way
- AlphaSan antimicrobial agent in key components slows bacteria growth
- Stainless steel cabinet resists rusting and scratching
- Foamed-in-place insulation retains cold air

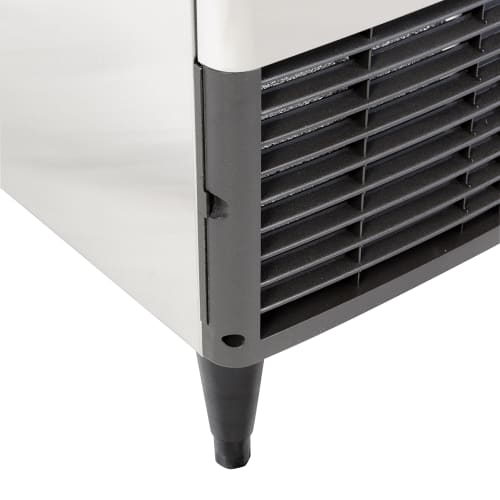

- Adjustable legs stabilize on uneven floors
- Compact design for under the counter or standalone installation
- Flat, right-angle plug fits in tight spaces
- Replaces the QM-45A
- 2,050 average BTU; 2,500 peak BTU
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 19.69 |
| Depth (in): | 22.34 |
| Height (in): | 36 |
| Weight: | 114.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year; 5-year Compressor Parts |
| 24 Hr. Production (lb): | 102 |
| Bin Capacity (lb): | 31 |
| Compressor Type: | Air Cooled |
| Design: | Standard Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Full Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R134a |
| Series: | NEO® |
| Special Features: | Antimicrobial |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 19.69 in. W x 22.34 in. D x 36 in. H
- 5.2 A, 10.7 kW, 1⁄4 HP

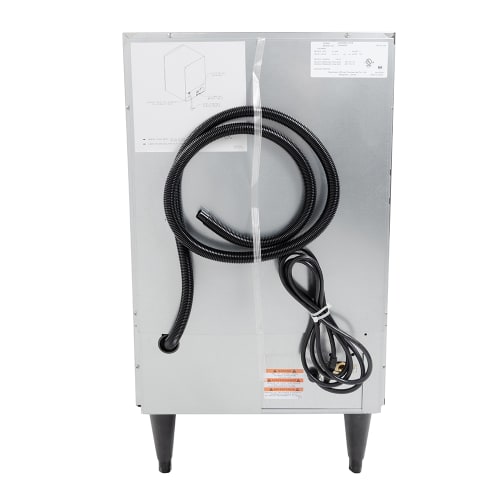

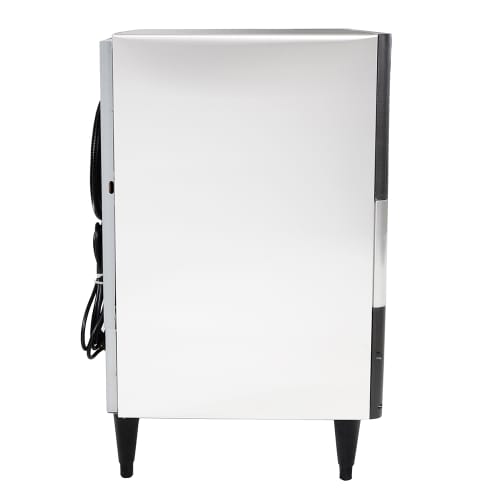

- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
- *Free shipping on Manitowoc Ice UDE0080A within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
NEO® Undercounter Ice Maker, cube-style, air cooling, self contained, 19-11/16"W x 22-11/32"D x 36"H, production capacity up to 102 lb/day at 70°/50° (71 lb at 90°/70°), 31 lb ice storage capacity, on/off/clean switch, dice size cubes, 6" leveling feet, NSF, cULus, CE, Replaces QM-45A, 115v/60/1ph
