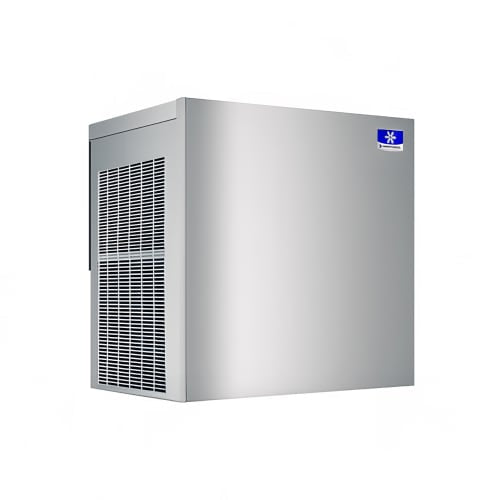

Manitowoc Ice RNP0620A 22" Nugget Ice Machine Head - 591 lb/24 hr, Air Cooled, 115v/1ph
The Manitowoc RNP0620A nugget ice machine generates 591 lbs ice when ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. This unit dispenses chewable nugget-style ice, which is ideal for cooling soft drinks or crafting smoothies. For keeping internal conditions optimal, this nugget machine utilizes R290 refrigerant to minimize impact to the ozone layer. It flaunts a stainless steel exterior that's durable and corrosion resistant, and to extend its product life, it features high-load stainless steel bearings. Overall, the Manitowoc RNP0620A ice machine head spans 22" wide by 235/8" deep by 26" high. It has a 3/8-in. water inlet and 1/2" drain to dispose of melted ice. When users install this unit, it requires a top and side clearance of 8" and back clearance of 5". Because its condenser is integrated, installation is simplified. *Free shipping on Manitowoc Ice RNP0620A within the 48 contiguous states. Ice Maker, nugget style, air-cooled, self-contained condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 591 lb/24 hours at 70°/50° (451 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R290A, 1 HP, NSF, cULus, CE, cETLus Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Produces 591 lbs./24 hours
- Makes nugget-style ice
- High-load stainless steel bearings
- Stainless steel exterior
- Self-contained, air-cooled condenser
- R290A hydrocarbon refrigerant
- Can be paired with the Manitowoc D-420 ice bin
- Ambient temperature range: 50-110 degrees F
- Water temperature range: 37-90 degrees F
- Pressure range: 14-80 PSI
- Must be paired with dispenser or bin (sold separately)
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 22 |
| Depth (in): | 23.63 |
| Height (in): | 26 |
| Weight: | 210.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 591 |
| Compressor Type: | Air Cooled |
| Ice Type: | Nugget |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R290 (Hydrocarbon) |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 235/8 in. D x 26 in. H
- 1/2-in. ice drain connection
- 3/8-in. ice water inlet connection
- 13.5 A, 6.36 kW
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker, nugget style, air cooling, integrated condenser, 22"W x 23-5/8"D x 26"H, production capacity up to 591 lb/day at 70°/50° (451 lb AHRI certified at 90°/70°), bite size nugget, high-load stainless steel bearings, stainless steel exterior, R290A, 1 HP, NSF, cULus, CE, cETLus
