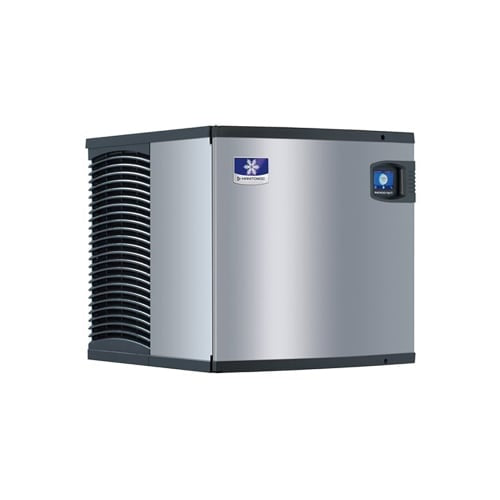

Manitowoc Ice IYT0620A 22" Indigo NXT™ Half Cube Ice Machine Head - 575 lb/24 hr, Air Cooled, 115v/1ph
The Manitowoc Ice IYT0620A Indigo NXT™ ice machine head has an easyTouch® display for programming establishments such as if the unit should stop running during certain hours, setting its production quota to a daily amount, or solving problems using its troubleshooting diagnostics. In a daily period, the head can generate 575 lbs of half-dice ice, which is a sufficient quantity for most small-scale restaurant establishments. Compared to a water-cooled unit, this unit's air cooling condensing system is practical and greatly reduces how much water is needed each day. Designed to create half-size ice, this Manitowoc Ice IYT0620A professional ice maker head has an acoustical ice sensing probe that monitors the cubes' thickness, ensuring each cube is 3⁄8 inch by 11⁄8" by 7⁄8 inch. A DuraTech® clear coat exterior fights stains and delivers corrosion resistance even better than stainless steel. Certain internal components are removable for maintenance and cleaning. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Manitowoc Ice IYT0620A within the 48 contiguous states. Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 575 lb/24 hours at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR® Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Part of the Indigo NXT series
- 575-lb. maximum daily ice production
- 465-lb. AHRI-certified daily ice production
- Air-cooled system

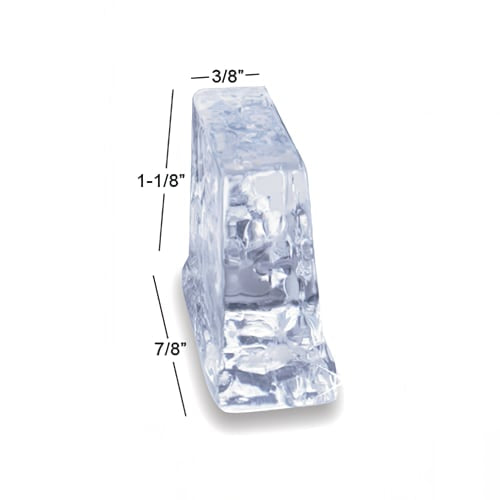

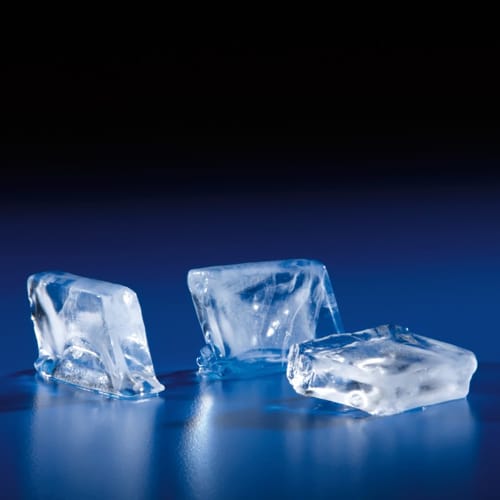

- Produces half-dice ice measuring 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
- EasyTouch icon-based touch screen operates machine
- DuraTech exterior combats corrosion, resists dirt stains, and minimizes fingerprint smudges
- Acoustical ice sensing probe provides the correct ice cube thickness
- Water trough, distribution tube, curtain, water probe, and water pump are all removable promptly for cleaning
- Intelligent diagnostics are useful troubleshooting tools
- Ice bin sold separately
- Uses R410A refrigerant
- Ambient temperature range: 40-110 degrees F
- Incoming water temperature: 40-90 degrees F
- Incoming water pressure: 20-80 PSI
- 5,400 average BTU; 6,300 peak BTU
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 22 |
| Depth (in): | 24.5 |
| Height (in): | 21.5 |
| Weight: | 145.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 575 |
| Compressor Type: | Air Cooled |
| Ice Type: | Half Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R410A |
| Series: | Indigo NXT™ |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 241⁄2 in. D x 211⁄2 in. H
- 12.2 A
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air cooling, integrated condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 575 lb/day at 70°/50° (465 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR®
