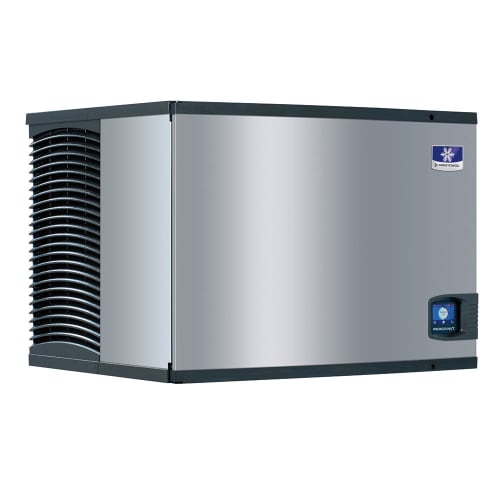

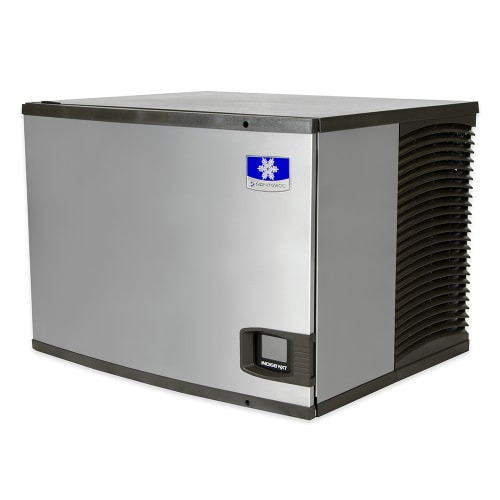

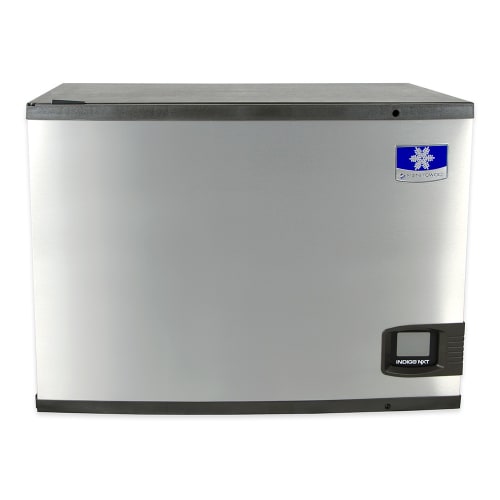

Manitowoc Ice IYT0450A 30" Indigo NXT™ Half Cube Ice Machine Head - 490 lb/24 hr, Air Cooled, 115v/1ph
The Manitowoc Ice IYT0450A Indigo NXT™ ice maker head offers an easyTouch® screen to control establishments, which include programming off-hour inactivity cycles, setting daily production quotas, or going after problems with troubleshooting diagnostics. Able to produce 490 lbs of half-dice ice each day, this ice machine head is ideal for small kitchen establishments with a limited customer base. Its air cooling condenser is more energy efficient and uses less water than a water-cooled unit. Because of its DuraTech® exterior, this Manitowoc Ice IYT0450A professional ice machine head has corrosion defense surpassing stainless steel and smudge resistance against fingerprints and dirt. The unit makes cubes measuring 3⁄8 inch by 11⁄8" by 7⁄8 inch, and to ensure cubes are the correct size, an acoustical ice sensing probe keeps track of ice cube thickness. Certain internal components are made with bacteria-slowing antimicrobial protection and are removable to streamline cleaning. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Manitowoc Ice IYT0450A within the 48 contiguous states. Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 490 lb/24 hours at 70°/50° (378 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR® Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Part of the Indigo NXT series
- 490-lb. maximum daily ice production
- 378-lb. AHRI-certified daily ice production

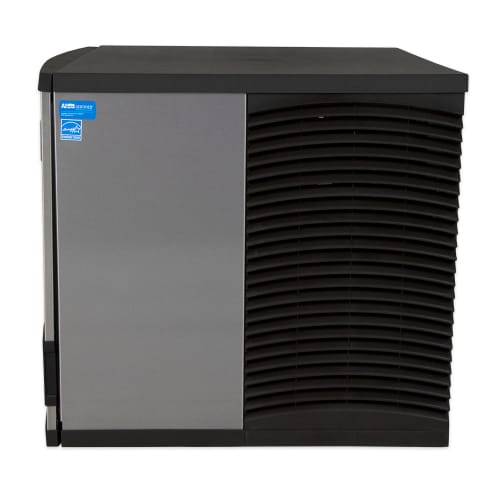

- Air-cooled system

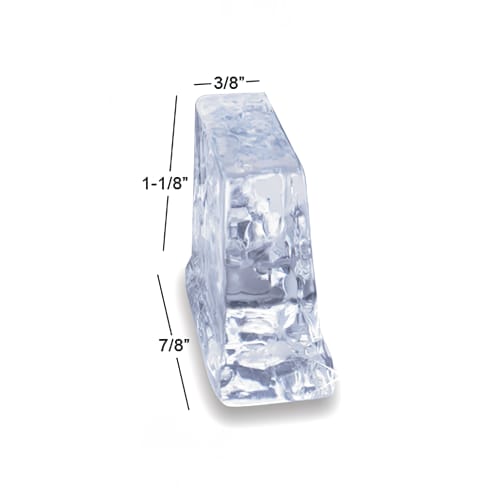

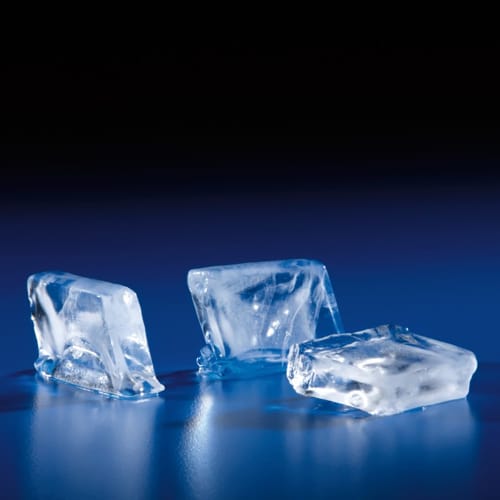

- Produces half-dice ice that measures 3⁄8 in. x 11⁄8 in. x 7⁄8 in.

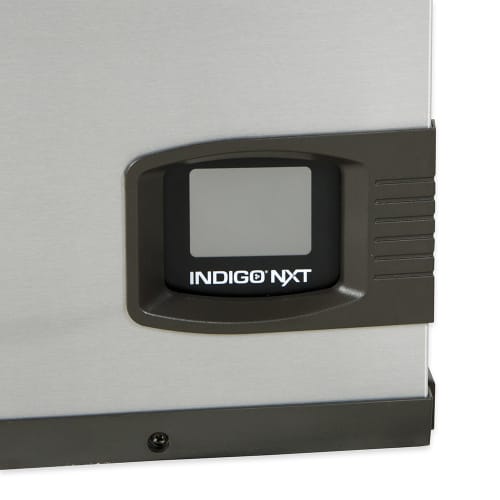

- EasyTouch touch screen has intuitive icon-based operation

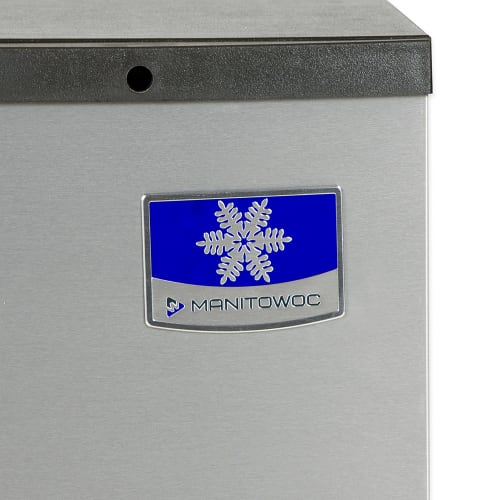

- DuraTech exterior prevents corrosion and smudges from dirt or fingers
- Acoustical ice sensing probe measures ice cube thickness for consistency in most water conditions
- Water trough, distribution tube, curtain, water probe, and water pump are all removable for swift cleaning
- Intelligent diagnostics solve maintenance issues
- Ice bin is not included
- Uses R410A refrigerant
- Ambient temperature range: 40-110 degrees F
- Incoming water temperature: 40-90 degrees F

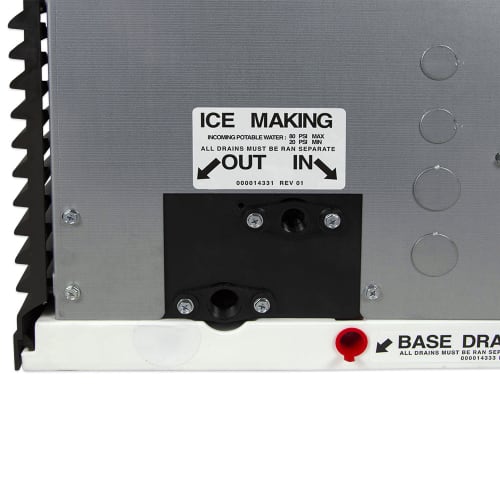

- Incoming water pressure: 20-80 PSI
- 3,800 average BTU; 6,000 peak BTU
- Cord and plug not included
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 30 |
| Depth (in): | 24 |
| Height (in): | 21.5 |
| Weight: | 170.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 490 |
| Compressor Type: | Air Cooled |
| Ice Type: | Half Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R410A |
| Series: | Indigo NXT™ |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 30 in. W x 24 in. D x 211⁄2 in. H
- 11.9 A
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air cooling, integrated condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 490 lb/day at 70°/50° (378 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®
