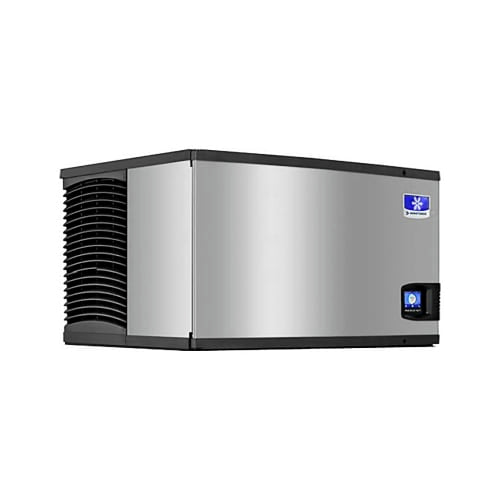

Manitowoc Ice IYT0300A 30" Indigo NXT™ Half Cube Ice Machine Head - 310 lb/24 hr, Air Cooled, 115v/1ph
The Manitowoc Ice IYT0300A half dice ice machine head has an air cooling, integrated refrigeration system to streamline installation and reduce the risk of cross contamination. It cools with R404a refrigerant and generates as much as 310 lbs of half dice ice per day. When ambient heat is high, this unit makes closer to 230 lbs ice daily. The ice production is programmable to accommodate for downtime. To push ice into a compartment that is sold separately, this Manitowoc unit IYT0300A ice machine head uses an automatic, ice-sensing probe. Active sense maintains ice production is consistent, and to keep the system running smoothly for extended periods, this unit has a daily maintenance and diagnostic feature. The foodzone is protected by AlphaSan® antimicrobial to inhibit bacterial growth, and to resist corrosion, this unit has a DuraTech™ exterior. *Free shipping on Manitowoc Ice IYT0300A within the 48 contiguous states. Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 310 lb/24 hours at 70°/50° (230 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R404a refrigerant, NSF, cULus, CE Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Part of the Indigo NXT™ series
- 310-lb. maximum daily ice production
- 230-lb. AHRI-certified daily ice production
- Makes half-cube ice
- Ice dimensions: 3⁄8 in. x 11⁄8 in. x 7⁄8 in.
- Self-contained, air-cooled condenser
- Uses R404a refrigerant
- DuraTech exterior resists corrosion
- Icon-based easyTouch display
- Active sense ensures consistent production
- Programmable ice production
- 24-hour maintenance feature
- Ice sensing probe works acoustically
- AlphaSan antimicrobial slows bacterial growth in foodzone
- Ideal ambient temperature range: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 4,600-BTU heat transfer capacity
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 30 |
| Depth (in): | 24.5 |
| Height (in): | 16.5 |
| Weight: | 147.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 310 |
| Compressor Type: | Air Cooled |
| Ice Type: | Half Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R410A |
| Series: | Indigo NXT™ |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 30 in. W x 24.5 in. D x 16.5 in. H
- 8.8 A
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air cooling, integrated condenser, 30"W x 24-1/2"D x 16-1/2"H, production capacity up to 310 lb/day at 70°/50° (230 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, half-dice size cubes, R404a refrigerant, NSF, cULus, CE
