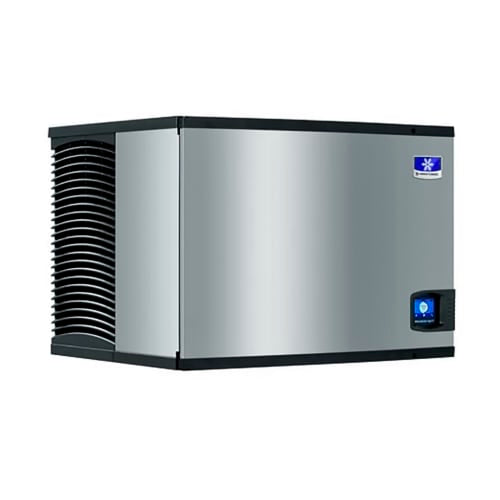

Manitowoc Ice IDT0750A 30" Indigo NXT™ Full Cube Ice Machine Head - 680 lb/24 hr, Air Cooled, 208-230v/1ph
The Manitowoc Ice IDT0750A ice maker has a 680-pound maximum daily production capacity, but this level decreases if ambient air and incoming water temperatures are higher than the ideal level. This unit makes full dice ice—or dice ice—that can be used for virtually anything, from soft drinks and liquor to bagged and dispensed ice. Cooled with air, it uses refrigerant to freeze water on the evaporator plate. With an acoustical ice sensing probe and active sense technology, this Manitowoc Ice IDT0750A ice machine head uses soundwaves to detect ice thickness and ensure a consistent harvest every time. The icon-based touchscreen helps users program the machine according to ice production volume and time. Featuring a stainless steel exterior clear-coated in DuraTech™, this unit can be wiped clean and does not reveal fingerprints or smudges. The internal components are protected by AlphaSan® antimicrobial to prevent the buildup of bacteria. Running day a day, diagnostics inform users when maintenance is needed. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Manitowoc Ice IDT0750A within the 48 contiguous states. Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 680 lb./24 hours at 70°/50° (540 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR® Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- 680-lb. daily ice production capacity
- 540-lb. AHRI-certified daily ice production capacity
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air-cooled and self-contained condenser
- Smudge-resistant DuraTech exterior
- Icon-based touchscreen display
- Programmable based on ice volume and time
- Removable water trough, sensing probes, curtain, and distribution tubes
- Hinged front door reveals foodzone
- Preventative maintenance and diagnostics provided 24 hours
- Ice thickness detected by soundwaves and active sense for consistent production
- R410A refrigerant
- 12,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-119 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 30 |
| Depth (in): | 24 |
| Height (in): | 21.5 |
| Weight: | 194.00 |
| Voltage: | 208/230 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 680 |
| Compressor Type: | Air Cooled |
| Ice Type: | Full Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R410A |
| Series: | Indigo NXT™ |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 30 in. W x 24 in. D x 21.5 in. H
- 11.1 A, 5.24 kW
- 208-230 V/60 Hz/1 ph
- *Free shipping on Manitowoc Ice IDT0750A within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air cooling, integrated condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 680 lb./day at 70°/50° (540 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®
