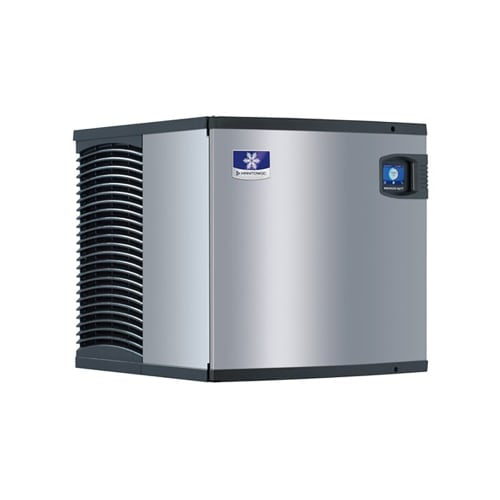

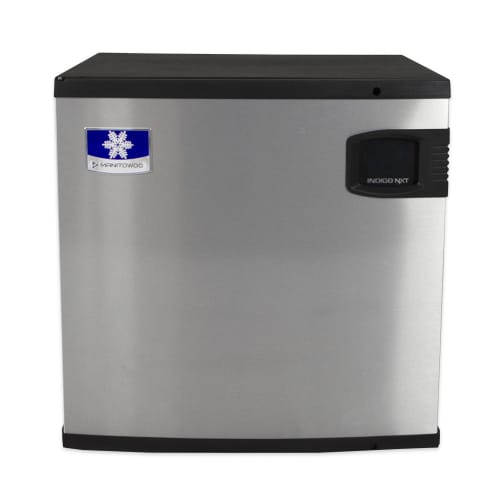

Manitowoc Ice IDT0620A 22" Indigo NXT™ Full Cube Ice Machine Head - 560 lb/24 hr, Air Cooled, 115v/1ph
The Manitowoc Ice IDT-0620A Indigo NXT™ ice machine head can deliver 560 lbs ice when installed in optimal conditions. Ice production is programmable to fit into specific time periods or meet different application volumes. Before ice drops into a compartment, its thickness is measured by an acoustical sensing probe, and the components of this machine are accessible through the front swing-out door for simple cleaning. Reducing the growth of bacteria and biofilm slime, some of these parts are made with AlphaSan® antimicrobial technology. Featuring an easyTouch® display, users can manage establishments and maintenance on the Manitowoc IDT-0620A professional ice machine head. When maintenance issues arise, it will notify the operator through its daily diagnostic system to quickly combat issues. Its exterior is made of DuraTech™, which prevents rust in humid environments and disguises fingerprints and dirt with its clear coating. Overall, the air cooling head is 22" wide by 241⁄2" deep by 211⁄2" high to fit securely on top of a separately sold storage compartment. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Manitowoc Ice IDT0620A within the 48 contiguous states. Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 560 lb./24 hours at 70°/50° (450 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR® Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Part of the Indigo NXT series
- Air-cooled condensing unit
- 560-lb. maximum daily ice production
- 450-lb. AHRI daily ice production

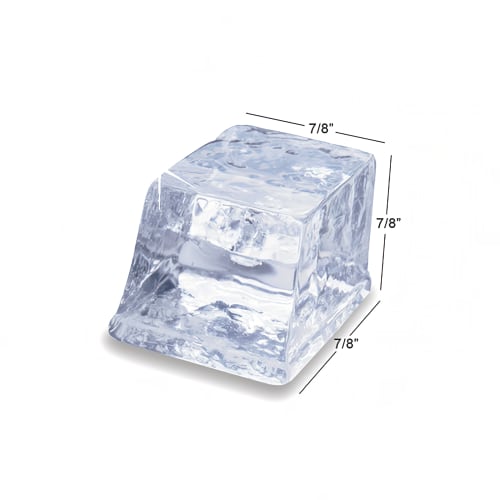

- Dice-cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Acoustical ice-sensing probe uses sound waves to ensure ice is only released to the bin when it has reached the correct thickness
- Ice production can be programmed based on time and daily volume
- easyTouch® display communicates operation status and maintenance information
- 24-hr. preventive maintenance and intelligent diagnostics monitor system operation
- Removable parts in food zone simplify cleanup
- Select components are made with AlphaSan antimicrobial, using silver ion technology to reduce bacterial growth and improve sanitation
- DuraTech® stainless steel finish with a clear coat resists corrosion and smudges
- Uses R410A refrigerant
- Ice bin sold separately
- Ideal incoming air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 psi
- 5,400-BTU heat transfer capacity
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 22 |
| Depth (in): | 24.5 |
| Height (in): | 21.5 |
| Weight: | 143.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 560 |
| Compressor Type: | Air Cooled |
| Ice Type: | Full Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R410A |
| Series: | Indigo NXT™ |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 241⁄2 in. D x 211⁄2 in. H
- 11.6 A, 5.18 kW
- 115 V/60 Hz/1 ph
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air cooling, integrated condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 560 lb./day at 70°/50° (450 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®
