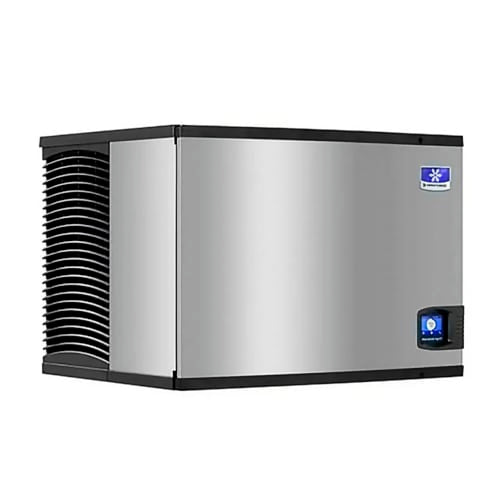

Manitowoc Ice IDT0500A 30" Indigo NXT™ Full Cube Ice Machine Head - 520 lb/24 hr, Air Cooled, 115v/1ph
Making as much as 520 lbs ice each day, this Manitowoc unit IDT0500A Indigo NXT™ ice maker fits into medium-volume applications. The amount it makes depends on the ambient air and incoming water temperatures, with higher levels resulting in less ice production. Perfect for soft drinks and bagged applications, the unit makes full dice ice. The acoustical sensing probe in this Manitowoc unit IDT0500A full cube ice machine head uses sound waves to detect ice thickness before dropping. With its touchscreen display, this unit can be programmed to turn off at certain times of the day or to produce a specific volume of ice. The removable components as well as the stainless steel, DuraTech® coated exterior are easy to clean, with AlphaSan® technology preventing bacteria buildup on the inside. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Manitowoc Ice IDT0500A within the 48 contiguous states. Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 520 lb./24 hours at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR® Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- 520-lb. maximum daily ice production
- 400-lb. AHRI-certified daily ice production

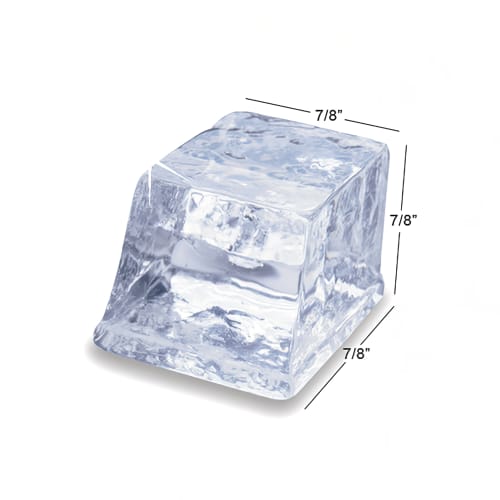

- Dice ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.

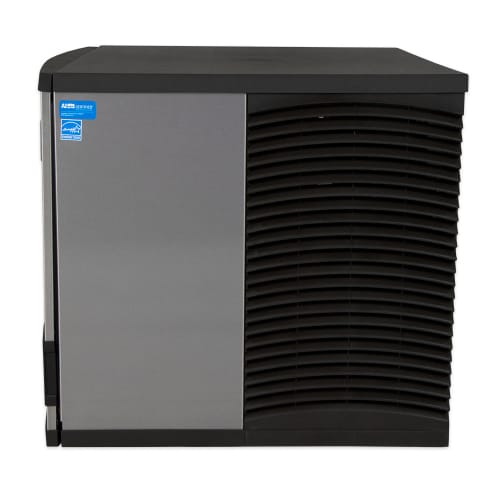

- Air-cooled, self-contained condenser
- Uses R410A refrigerant
- DuraTech-coated stainless steel resists fingerprints
- Antimicrobial slows internal bacteria buildup
- Self-diagnosing and preventative maintenance
- Removable water trough, distribution tube, curtain, probe, and pump
- Programmable by time and volume

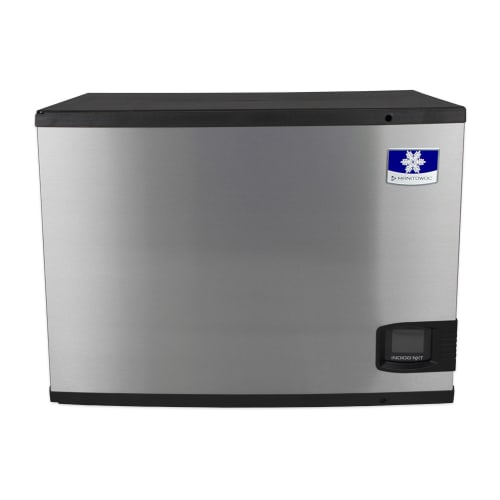

- Operated by exterior touchscreen
- Hinged door swings open to reveal internal components
- Detects ice thickness with soundwaves before dropping
- 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F

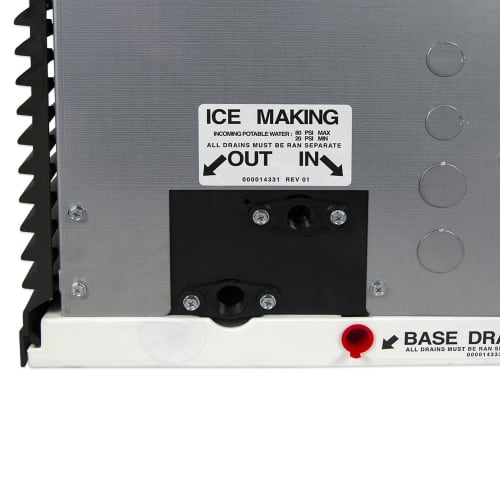

- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 30 |
| Depth (in): | 24 |
| Height (in): | 21.5 |
| Weight: | 157.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 520 |
| Compressor Type: | Air Cooled |
| Ice Type: | Full Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R410A |
| Series: | Indigo NXT™ |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 30 in. W x 24 in. D x 21.5 in. H
- 11.5 A, 5.25 kW
- 115 V/60 Hz/1 ph
- *Free shipping on Manitowoc Ice IDT0500A within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air cooling, integrated condenser, 30"W x 24"D x 21-1/2"H, production capacity up to 520 lb./day at 70°/50° (400 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®
Making as much as 520 lbs ice each day, this Manitowoc unit IDT0500A Indigo NXT™ ice maker fits into medium-volume applications. The amount it makes depends on the ambient air and incoming water temperatures, with higher levels resulting in less ice production. Perfect for soft drinks and bagged applications, the unit makes full dice ice.
