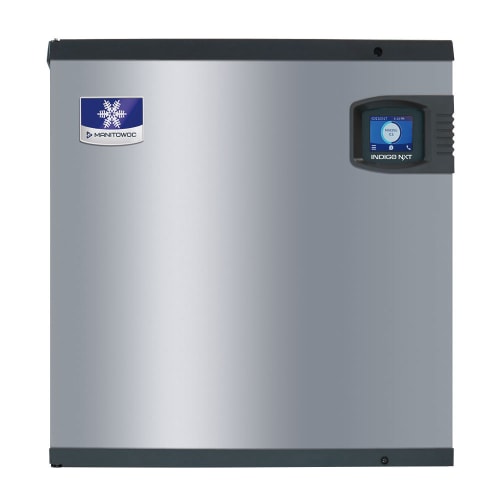

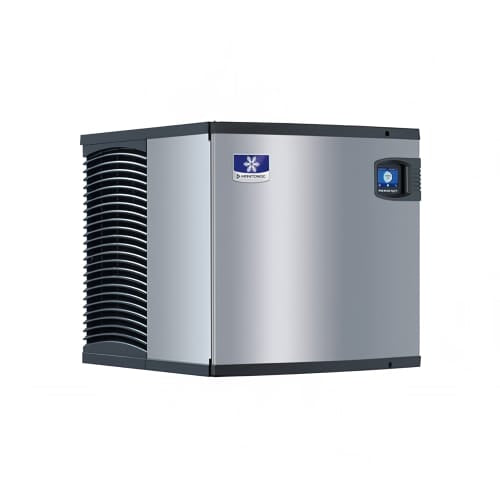

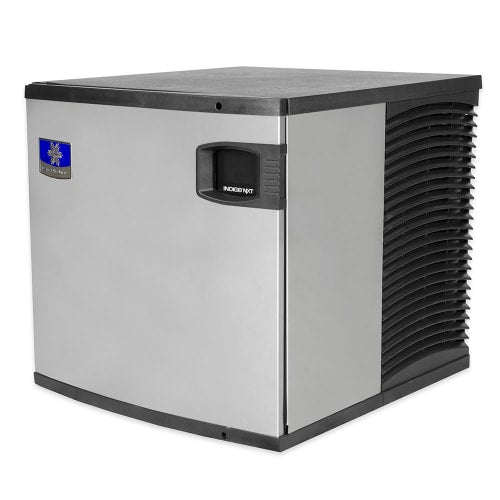

Manitowoc Ice IDT0420A 22" Indigo NXT™ Full Cube Ice Machine Head - 470 lb/24 hr, Air Cooled, 115v/1ph
The Manitowoc Ice IDT0420A ice maker can produce 470 lbs ice each day. This maximum amount can only be achieved if ambient air and incoming water conditions are at an ideal level. It makes full dice ice, which is often used for soft drinks and other fountain beverages. This unit uses air to cool the refrigerant, and when it is cold, it removes heat from the evaporator plate so water will freeze and make cubes. This Manitowoc Ice IDT0420A full dice ice machine head is operated through an icon-based touch screen and can be programmed to turn on and off at certain times of the day or by ice production amount. Featuring R410A refrigerant and self-diagnosis for preventative spans, this head utilizes an acoustical sensing probe to gauge how thick ice is before dispensing. With a quick-cleaning DuraTech® exterior, this unit offers a removable water trough, distribution tube, curtain, water probe, and water pump. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Manitowoc Ice IDT0420A within the 48 contiguous states. Indigo NXT™ Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 470 lb./24 hours at 70°/50° (375 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR® Watch a video about this product Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- 470-lb. maximum daily ice production
- 375-lb. AHRI-certified daily ice production

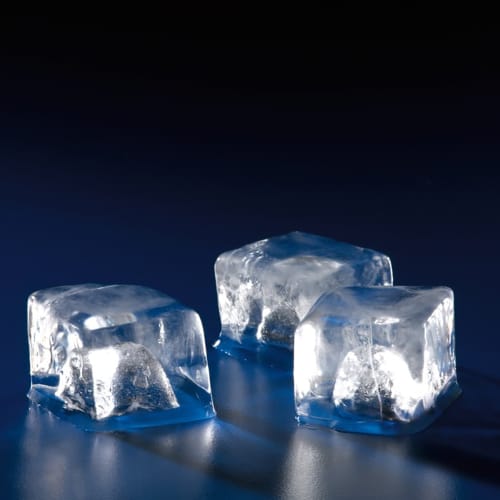

- Makes full-size cube ice

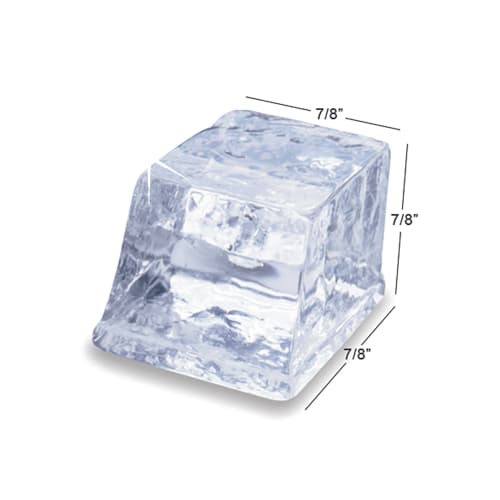

- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Energy efficient for low ownership cost

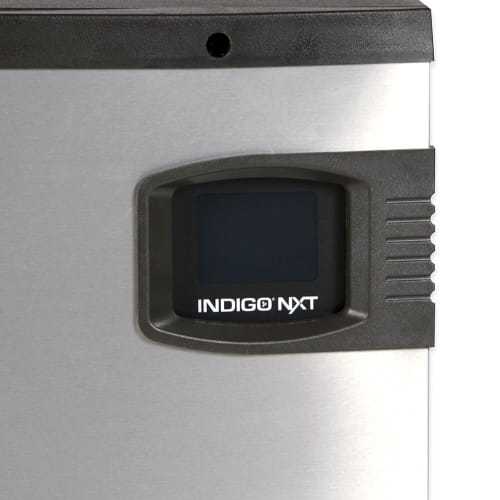

- Operated with easyTouch® touchscreen display
- Programmable by time and ice volume
- 24-hr. preventative maintenance and diagnosis
- Acoustical ice sensing probe detects ice density
- Removable water-trough, distribution tube, curtain, water probe, and water pump
- Foodzone accessible through swinging door
- Clear-coated, fingerprint-resistant DuraTech exterior
- R140A refrigerant

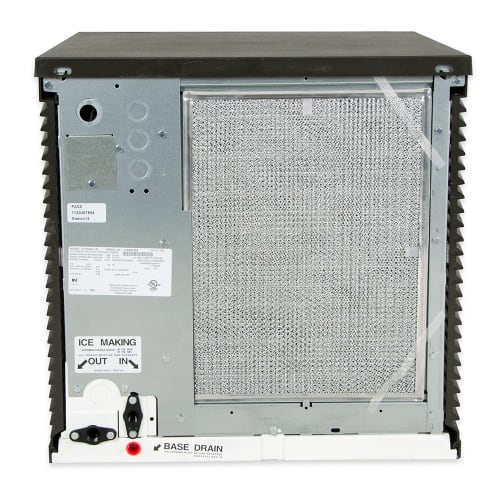

- Air-cooled, self-contained condenser
- 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 22 |
| Depth (in): | 24.5 |
| Height (in): | 21.5 |
| Weight: | 137.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
| 24 Hr. Production (lb): | 470 |
| Compressor Type: | Air Cooled |
| Ice Type: | Full Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R410A |
| Series: | Indigo NXT™ |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 22 in. W x 24.5 in. D x 21.5 in. H
- 11.3 A, 5.6 kW
- 115 V/60 Hz/1 ph
- *Free shipping on Manitowoc Ice IDT0420A within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Indigo NXT™ Series Ice Maker, cube-style, air cooling, integrated condenser, 22"W x 24-1/2"D x 21-1/2"H, production capacity up to 470 lb./day at 70°/50° (375 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech™ exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR®
