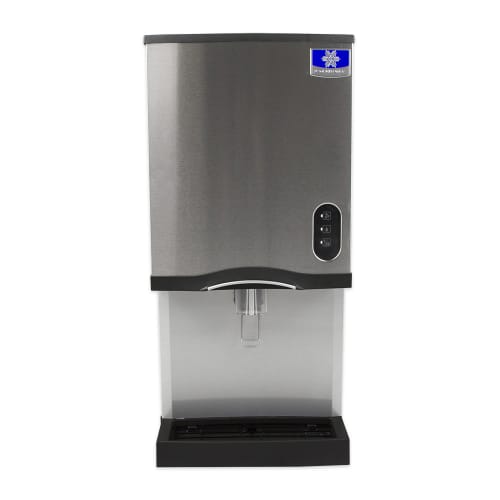

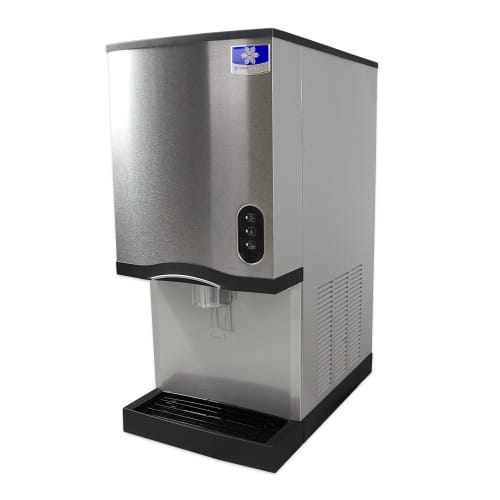

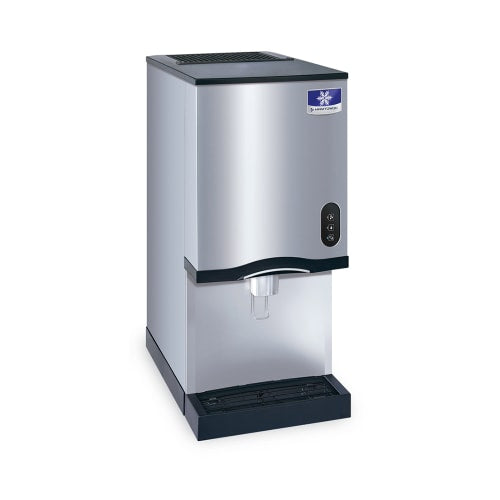

Manitowoc Ice CNF-0201A-L 315 lb Countertop Water & Nugget Ice Dispenser - 10 lb Storage, Cup Fill, 115v
The Manitowoc Ice CNF0201A-L countertop ice and water dispenser works great in a variety of settings, such as hospitals, cafeterias, offices, and lobbies. Its nugget ice is a popular choice among customers because its chewability and size ensure it is ideal for casual consumption. Effectively helping customers see what they’re pouring, the dispenser’s blue LED light illuminates it in areas with low ambient lighting. In case of spills, a large drain pan rests below the dispenser, and the DuraTech™ front panel resists hardwater staining and can be wiped clean. *Free shipping on Manitowoc Ice CNF-0201A-L within the 48 contiguous states. Ice Maker & Water Dispenser, 16-1/4"W x 24"D x 35"H, countertop, nugget style, air-cooled, self-contained condenser, production capacity up to 315 lb/24 hours at 70°/50° (222 lb at 90°/70°), 10 lb bin storage capacity, lever activated dispensing, Duratech™ exterior, R404A, 1/3 HP, NSF, cULus Watch a video about this product Founded in 1964, Manitowoc is a Pentair company specializing in creating advanced commercial ice machines. The Wisconsin company has pioneered several developments in the ice industry, such as the vertical evaporator, EasyTouch displays, and environmentally friendly refrigerant, and is recognized as one of the top ice machine brands. Important Prop 65 information for California residents.
Product Details
- Creates soft nugget ice
- 10-lb. bin capacity
- Large drain pan contains ice spillage
- Rear or underside drain connections let the unit be flush mounted on the left
- Blue LED light improves dispenser visibility in low lighting
- Air-cooled system
- DuraTech front panel

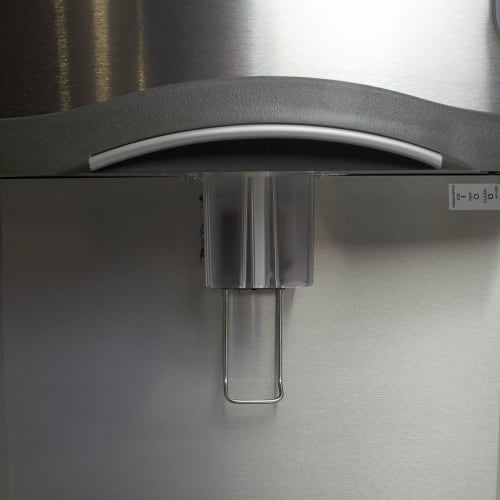

- Lever dispenser is quick and user friendly
- Produces 315 lb./24 hr. of ice at 70 degrees F air, 50 degrees F water
- Produces 222 lb./24 hr. of ice at 90 degrees F air, 70 degrees F water
- Operation switch has on, off, and clean settings
- Ideal ambient air temperature: 45-110 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Ideal clearances: 24 in. on top, 8 in. on sides, 5 in. on back
- R404A refrigerant
- 2,300-BTU heat transfer capacity
Specifications
| Manufacturer: | Manitowoc Ice |
| Width (in): | 16.25 |
| Depth (in): | 24 |
| Height (in): | 35 |
| Weight: | 187.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 2-year, 5-year Compressor Parts |
| 24 Hr. Production (lb): | 315 |
| Amps: | 10.3 |
| Bin Capacity (lb): | 10 |
| Compressor Type: | Air Cooled |
| Dispenser Type: | Lever |
| Dispenses: | Ice & Water |
| Ice Type: | Nugget |
| Installation Type: | Countertop |
| NEMA: | 5-15P |
| Operation: | Self Contained |
| Product: | Ice Dispensers |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Serving Vessel: | Cup |
| Special Features: | Duratech™ |
| Suggested Use: | Home/Office |
| Water Inlet (in): | 0.38 |
Dimensions & Utilities
- 16.25 in. W x 24 in. D x 35 in. H
- 10.3 A, 6.69 kW, 1⁄3 HP

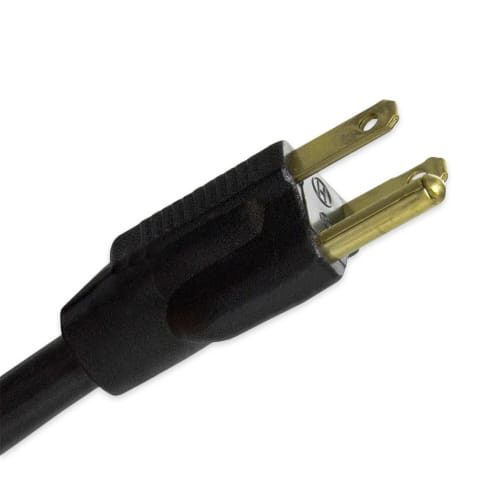

- 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker & Water Dispenser, 16-1/4"W x 24"D x 35"H, countertop, nugget style, air cooling, integrated condenser, production capacity up to 315 lb/day at 70°/50° (222 lb at 90°/70°), 10 lb compartment storage capacity, lever activated dispensing, Duratech™ exterior, R404A, 1/3 HP, NSF, cULus
