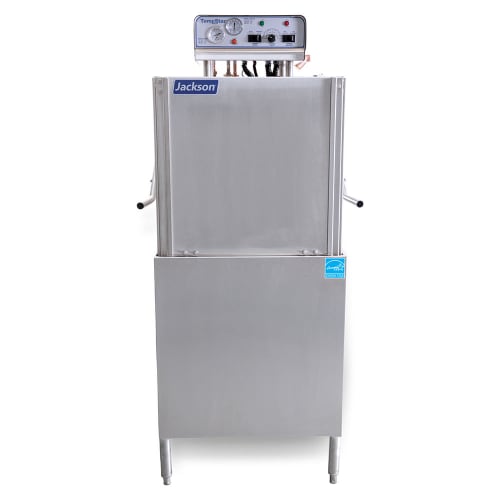

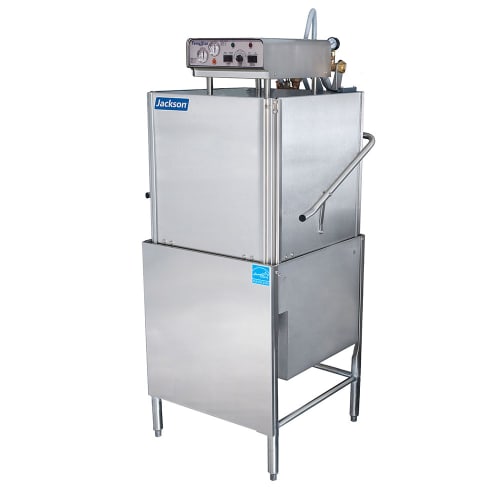

Jackson TEMPSTAR TempStar® High Temp Door-Type Dishwasher w/ 63 Racks/hr Capacity, Built-in Booster, 208v/1ph
by Jackson
Original price
$12,838.00
-
Original price
$12,838.00
Original price
$12,838.00
$12,838.00
-
$12,838.00
Current price
$12,838.00
Product Details
- Part of the TempStar® line
- Washes 63 racks per hour (58 racks with suggested NSF load time)
- Universal, door-type unit with high-temperature sanitization
- 8-gal. wash tank
- 2-gal. rinse tank
- Uses 0.89 gal. of water per rack
- Built-in booster heater with Sani-Sure™ final rinse system
- Rust-resistant stainless steel construction
- Door-actuated start
- Automatic tank fill
- Vent fan control
- High-limit thermostat and low-water protection
- Interchangeable wash-rinse arms screw out for simple cleanup
- Top-mounted controls
- Front dress panel
- Large scrap basket
- Adjustable bullet feet
- Delime/manual wash switch
- Self-draining stainless steel pump
- Multi-cycle timer with extra-heavy, heavy, medium, and normal options
- 171⁄4-in. door opening accepts 18-in. trays
- 4-in. minimum wall clearance
- Minimum wash temperature: 150 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 110-114 degrees F
- Required incoming flow pressure: 8-12 PSI
Product Features
*Free shipping on Jackson TEMPSTAR within the 48 contiguous states.
Dimensions & Utilities
- 251⁄4 in. W x 29 in. D x 643⁄8 in. H
- 75.2 A, 10.5 kW, 1 HP
- 208 V/60 Hz/1 ph
- Minimum waterline size: 1⁄2-in. IPS
- Minimum drain line size: 11⁄2-in. IPS
From The Manufacturer
TempStar® Dishwasher, door type, high temperature electric tank heat with built-in booster, universal (straight-thru/corner) type, approximately (63) racks/hour capacity (0.89 gallons per rack), stainless steel exterior, electro-mech controls, universal timer, Sani-Sure™, auto tank fill, door actuated start, dishtable not included, cETLus, ETL-Sanitation, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Control Location | Top |
| Depth (in) | 25.25 |
| Design | Standard |
| Door Type | Lift Up |
| Heat | Electric |
| Height (in) | 64.38 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 63 |
| Rating | Better |
| Series | TempStar® |
| Special Features | Built in Booster |
| Type | High Temp |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 32 |
| Weight | 263.00 |
