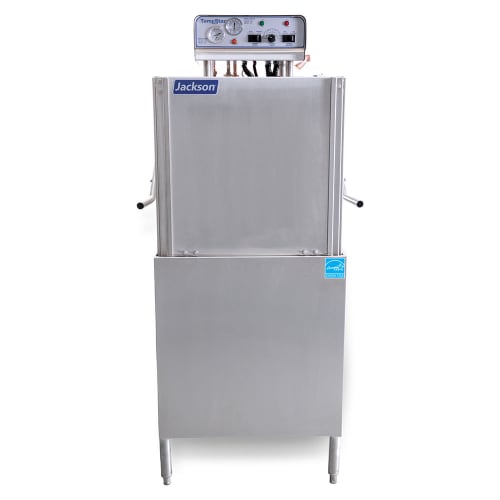

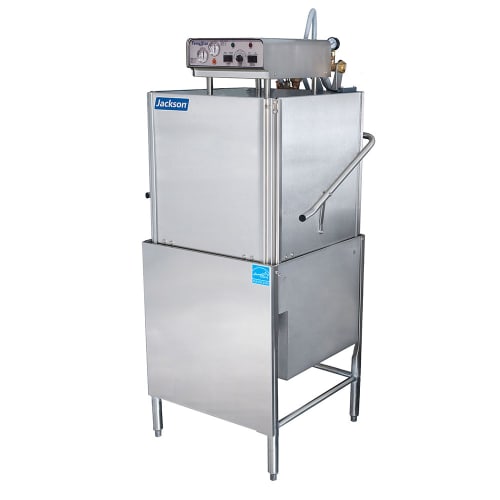

Jackson TEMPSTAR TempStar® High Temp Door-Type Dishwasher w/ 58 Racks/hr Capacity, Built-in Booster, 208v/3ph

Product Details

• 58 racks per hr. in the normal cycle, 30 racks per hr. in the medium cycle, 20 racks per hr. in the heavy cycle, or 12 racks per hr. in the extra-heavy cycle
• 57-sec. normal cycle, 117-sec. medium cycle, 117-sec. heavy cycle, 297-sec. extra-heavy cycle
• Compatible with 20-in. x 20-in. racks
• 18-in. trays fit in the 17¹⁄₄-in. door opening
• Auto-start and auto-fill features make it easy to start a cycle
• Built-in, 70-degree F rise booster heater increases sanitizing water to the proper temperature
• Sani-Sure™ feature makes sure that theheats rinse water toreaches the proper temperature
• Multi-cycle timer enables enables the operator to monitor the cycle time in any cycle
• Interchangeable wash and rinse arms can be screwed out to simplify the cleaning process
• Stainless steel nozzles provide a superior clean
• Self-draining, stainless steel pump eliminates water from the wash cycle
• Large scrap basket collects crumbs to prevent the drain from clogging
• Front dress panel protects the internal components from damage
• Adjustable bullet feet can be used to level unit on irregular surfaces

Product Features

Dimensions & Utilities

• 25¹⁄₄ in. W x 25¹⁄₄ in. D x 64³⁄₈ in. H
• 46.3 A, 1 HP
• 208 V/60 Hz/3 ph

*Free shipping on Jackson TEMPSTAR within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, door type, high temperature electric tank heat with built-in booster, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.89 gallons per rack), stainless steel exterior, universal timer, Sani-Sure, dishtable not included, cETLus, ETL-Sanitation, ENERGY STAR®, 208v/60/3ph

*Image may not depict product color, inclusions or accessories.
