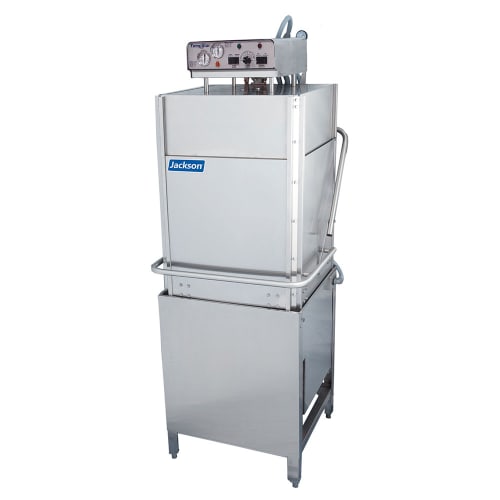

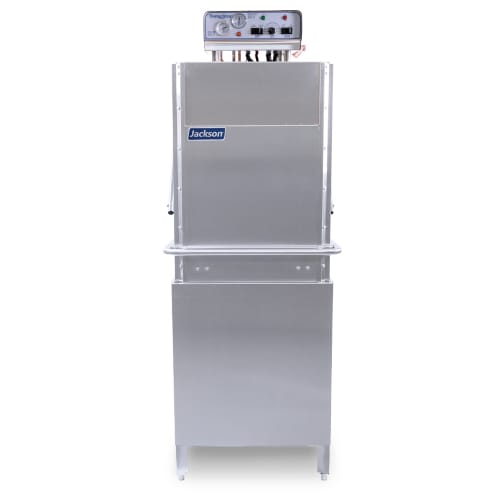

Jackson TEMPSTAR HH-E TempStar® High Temp Door Type Dishwasher w/ 55 Racks/hr Capacity, Built-in Booster, 230v/1ph

Product Details

• Replaces TEMPSTAR HH
• High-temp sanitization system
• Built-in booster heater increases incoming water by 70 degrees F
• Sani-Sure final-rinse system
• Washes 60 racks per hour (55 racks with suggested NSF load time)
• Uses 0.72 gal. of water per rack (43.2 gal. of water per hour)
• 8-gal. wash tank
• 3-gal. booster tank
• Multi-cycle timer with normal, medium, heavy, and extra-heavy options
• Automatic tank fill
• Auto-start mechanism
• Delime, manual-wash, and door switches
• High-limit thermostat
• Low-water protection
• Lower counter-rotating wash arms
• Upper wash arm
• Self-draining stainless steel pump
• Vent fan control with idle shut-off
• Low-watt-density electric wash tank heater
• 2-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Large scrap basket

Product Features

*Free shipping on Jackson TEMPSTAR HH-E within the 48 contiguous states.

Dimensions & Utilities

• Opening: 20³⁄₄ in. W x 27 in. H
• Overall: 28⁵⁄₈ in. W x 34³⁄₈ in. D x 76³⁄₈ in. H
• 88.9 A, 17.9 kW, 2 HP
• 230 V/60 Hz/1 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ¹⁄₂-in. IPS

From The Manufacturer

TempStar® Dishwasher, Door Type, high hood, high temperature electric tank heat with built-in 70° rise booster, universal (straight-thru/corner) type, approximately (55) racks/hour, only 0.72 gallon of water per rack, Sani-Sure™, all stainless steel finish, 2 HP, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Use & Care Guide
• Service Manual
• Manual
• Installation Guide
• Catalog
