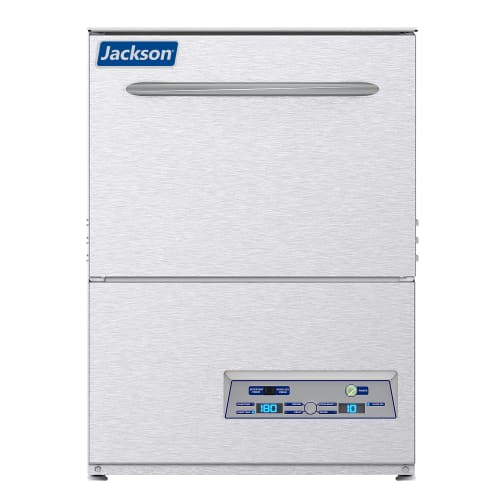

Jackson DISHSTAR HT DishStar® High Temp Rack Undercounter Dishwasher w/ 24 Racks/hr Capacity, Built-in Booster, 230v/1ph

Product Details

• Washes up to 24 racks per hour
• 1.1 gal. of water is used for each rack
• Total cycle: 120 sec.
• Fill and dump operation reuses rinse water to wash the next cycle, reducing water and energy consumption
• Fresh water rinse prevents contamination from wash water
• Sani-Sure™ maintains safe temperatures for rinse water temperatures
• Controls are simple to use
• Starts with the push of a button
• Automatic fill begins after the door is closed and the On/Off switch is flipped
• intuitive universal timer
• Deliming cycle prevents calcium oxide buildup on dishes
• Wash pump is made of durable stainless steel
• Stainless steel exterior resists regular damage
• Space between housing and body is air insulated to maintain high temperatures
• Labyrinth-style door prevents leakage
• Door switch shuts the cycle down when the door is open
• Scrap basket collects stray food fragments
• Included peg and combination racks hold dishes during washing
• Drain is automatically pumped for setup with wall or floor drains
• Chemical pumps and priming switches are built in to facilitate installation

Product Features

*Free shipping on Jackson DISHSTAR HT within the 48 contiguous states.

Dimensions & Utilities

• 24³⁄₁₆ in. W x 25¹⁄₄ in. D x 33⁵⁄₁₆ in. H
• 40.7 A, 1 HP
• 230 V/60 Hz/1 ph

From The Manufacturer

DishStar® Dishwasher, undercounter, 24-3/16"W, high temperature sanitizing with built-in 70°rise booster heater, approximately (24) racks/hour, (1.1) gallons of water per rack, universal timer, built-in chemical pumps, auto-fill, stainless steel wash pump, cabinet finished in stainless steel, 1 HP, ETL-Sanitation, cETLus, 230v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Use & Care Guide
• Service Manual
• Manual
• Installation Guide
• Brochure
• Catalog
