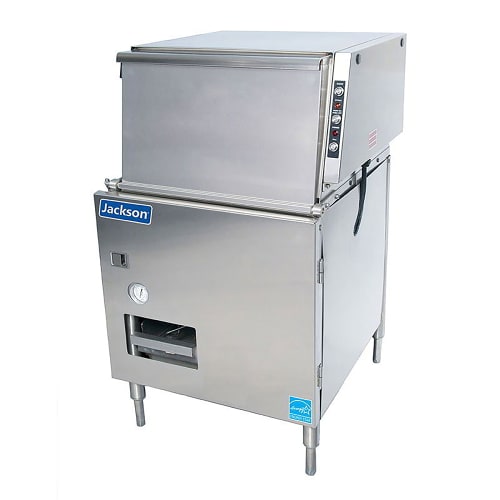

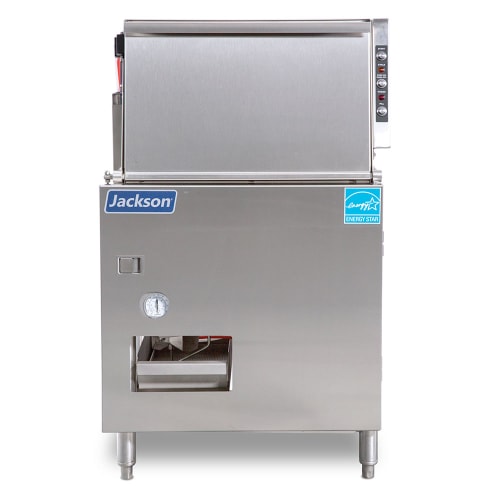

Jackson DELTA 5-E Delta® Low Temp Rack Undercounter Dishwasher w/ 40 Racks/hr Capacity, 115v

Product Details

• 40 racks per hr.
• 90-sec. wash, rinse, and dwell cycle
• Uses 1.16 gal. of water per rack
• Powerful, 1-HP stainless steel wash pump
• Built-in chemical pumps and priming switches
• Low-temperature rinse uses chemicals for sanitization
• Sustaining heating element maintains a final rinse between 120-140 degrees F
• Air-gap water inlet
• 11¹⁄₂-in. wash chamber clearance for dishes and glassware
• Accommodates 20-in. x 20-in. racks
• Gravity drain
• Built-in waste accumulator can be accessed from the exterior
• Removable end plugs on lower wash arm simplify cleaning
• Accessible electromechanical controls
• Dial temperature gauge
• Door safety switch
• Durable stainless steel construction can be wiped clean
• Adjustable bullet feet

Product Features

*Free shipping on Jackson DELTA 5-E within the 48 contiguous states.

Dimensions & Utilities

• Interior clearance: 20¹⁄₄ in. W x 20¹⁄₂ in. D x 11¹⁄₂ in. H
• Overall: 25¹⁄₄ in. W x 24¹⁄₂ in. D x 39 in. H
• 16 A
• 115 V/60 Hz/1 ph

From The Manufacturer

Delta® Underbar Dish/Glasswasher, door type, 24-1/2"W x 25-1/4"D x 39"H, low temperature chemical sanitizing, approximately (40) racks/hour, (90) second cycle, (3) built-in dispensing pumps, built-in waste accumulator, removable screen, push-button start, gravity drain, adjustable stainless steel bullet feet, stainless steel construction, 1 HP wash pump, 115v/60/1-ph, 16.0 amps, cETLus, NSF, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Use & Care Guide
• Manual
• Installation Guide
• Brochure
• Catalog
