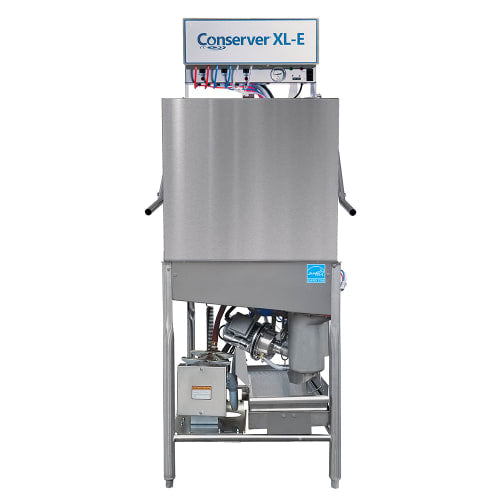

Jackson CONSERVER XL-E-LTH Conserver® Low Temp Door Type Dishwasher w/ 39 Racks/hr Capacity, Built-in Booster, 208v/1ph
by Jackson
Original price
$7,605.00
-
Original price
$7,605.00
Original price
$7,605.00
$7,605.00
-
$7,605.00
Current price
$7,605.00
Product Details
- 41 racks per hour in a normal cycle (39 racks per hour with suggested NSF load time)
- 1.02 gal. of water per rack
- 3 timed operating cycles: normal (87 seconds), medium (145 seconds), and heavy (325 seconds)
- Low-temperature chemical sanitization
- 3 built-in chemical pumps and priming switches
- Built-in booster heater maintains incoming water is 145 degrees F
- Door-type unit
- Convenient top-mounted controls:
- Auto start
- Wash thermometer
- Low-chemical indicator light
- Delimer switch
- Self-draining stainless steel pump
- Fill-and-dump design expels dirty water each cycle
- Internal sump
- Built-in waste accumulator
- Large removable scrap screen
- Interchangeable upper and lower stainless steel wash/rinse arms
- 1-HP wash pump
- Rugged stainless steel construction
- Door switch
- Adjustable bullet feet
- 171⁄4-in. interior clearance
- Field convertible between straight and corner unit (kit sold separately)
- 93⁄4-in. drain height
- Minimum incoming water temperature: 110 degrees F
- Recommended water operating temperature: 140 degrees F
- Recommended rinse operating temperature: 145 degrees F
- Recommended flow pressure: 15-25 PSI
- Minimum chlorine required: 50 PPM
Product Features
*Free shipping on Jackson CONSERVER XL-E-LTH within the 48 contiguous states.
Dimensions & Utilities
- 303⁄8 in. W x 291⁄2 in. D x 681⁄2 in. H
- 48.3 A, 1 HP
- 208 V/60 Hz/1 ph
- 3⁄4-in. IPS minimum water-line size
- 2-in. IPS minimum drain-line size
From The Manufacturer
Conserver® Dishwasher, Door Type, 30-3/8"W x 29-1/2"D x 68-1/2"H, low temperature chemical sanitizing, built-in booster heater, 145° rinse water, three selectable timed cycles, universal (straight-thru/corner) type, approximately (39) racks/hour, electronic timer, (3) built-in dispensing pumps, built-in scrap accumulator, removable scrap screen, auto-start, delimer switch, stainless steel construction, adjustable stainless steel bullet feet, 1 HP wash pump, cETLus, ETL-Sanitation, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Cavity Height (in) | 17.25 |
| Control Location | Top |
| Depth (in) | 29.5 |
| Design | Standard |
| Door Type | Lift Up |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 39 |
| Rating | Better |
| Series | Conserver® |
| Special Features | Built in Booster |
| Type | Low Temp |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30.38 |
| Weight | 300.00 |
