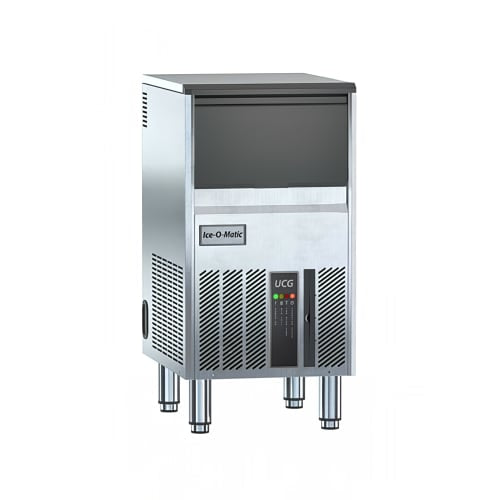

Ice-O-Matic UCG060A 15 1/4" Top Hat Undercounter Ice Machine - 63 lbs/day, Air Cooled
The Ice-O-Matic UCG060A undercounter ice maker generates gourmet-style ice cubes that measure 17/20" in diameter by 11/5" high. Its air cooling condenser is integrated to streamline installation and operates using natural R290A hydrocarbon refrigerant that's safe for the environment. In ideal operating conditions, this unit generates 63 lbs ice per day. The compartment accommodates as much as 171/2 lbs ice for later use. To enable installation on irregular surfaces, the Ice-O-Matic UCG060A top hat ice maker with compartment is positioned on leveling feet that prevent wobbling. It's made of durable stainless steel with plastic components that resist fingerprint smudges to offer a clean appearance. Overall, this unit spans 151/4" wide by 20" deep by 251/4" high. *Free shipping on Ice-O-Matic UCG060A within the 48 contiguous states. Cube Ice Maker, gourmet cube-style, undercounter, air-cooled, self-contained condenser, approximately 63 lb/31 kg production/24 hours, 17-1/2 lb. capacity built-in bin, stainless steel & fingerprint-proof plastic construction, adjustable legs, R290A Hydrocarbon refrigerant, 115v/60/1-ph, cord, cETLus, ETL-Sanitation, ADA Compliant Important Prop 65 information for California residents.
Product Details
- 63-lb. maximum daily ice production
- 171/2-lb. capacity bin
- Crafts gourmet-style ice
- Gourmet ice dimensions: 17/20 in. dia. x 11/5 in. H
- Undercounter unit
- Air-cooled, self-contained condenser
- Stainless steel and fingerprint-resistant plastic construction
- Uses R290A hydrocarbon refrigerant
- Adjustable legs
- BPA free
- Ideal incoming water temperature: 41-100 degrees F
- Ideal incoming air temperature: 50-109 degrees F
- Ideal incoming water pressure: 14-70 PSI
Specifications
| Manufacturer: | Ice-O-Matic |
| Width (in): | 15.25 |
| Depth (in): | 20 |
| Height (in): | 25.25 |
| Weight: | 81.50 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year Parts & Labor |
| 24 Hr. Production (lb): | 63 |
| Bin Capacity (lb): | 17.5 |
| Compressor Type: | Air Cooled |
| Design: | ADA Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Top Hat |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Better |
| Refrigerant: | R290 (Hydrocarbon) |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.75 |
Dimensions & Utilities
- 151/4 in. W x 20 in. D x 251/4 in. H
- 5.1 A, 17.8 kW
- 115 V/60 Hz/1 ph, cord included
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Cube Ice Maker, gourmet cube-style, undercounter, air cooling, integrated condenser, approximately 63 lb/31 kg production/day, 17-1/2 lb. capacity built-in compartment, stainless steel & fingerprint-proof plastic construction, leveling feet, R290A Hydrocarbon refrigerant, 115v/60/1-ph, cord, cETLus, ETL-Sanitation, ADA Compliant
