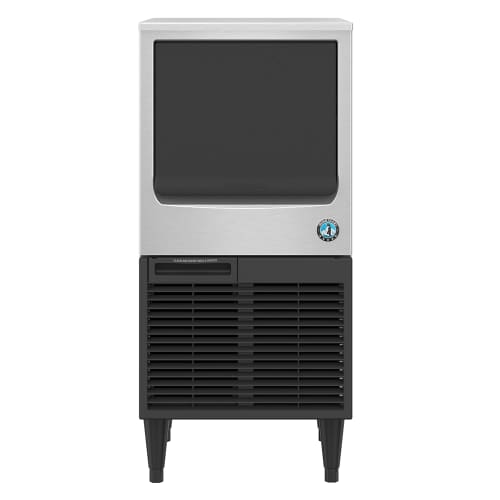

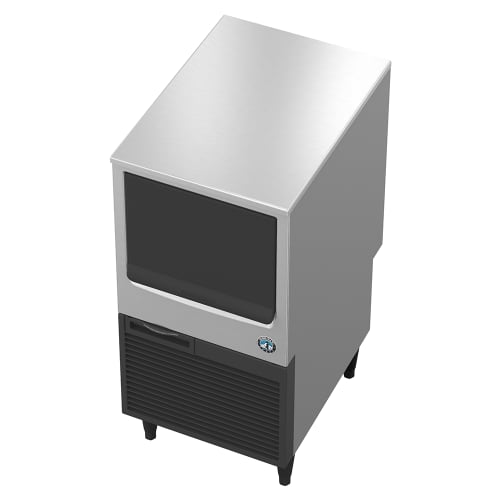

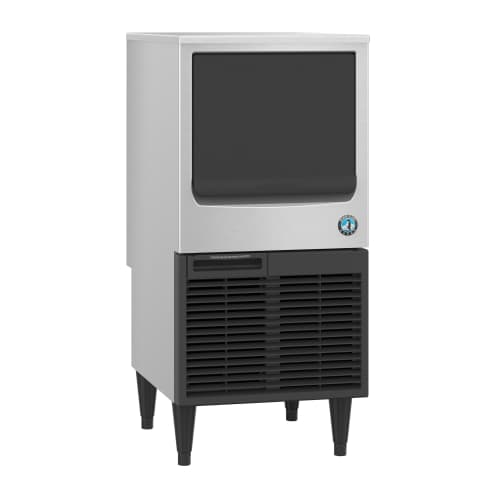

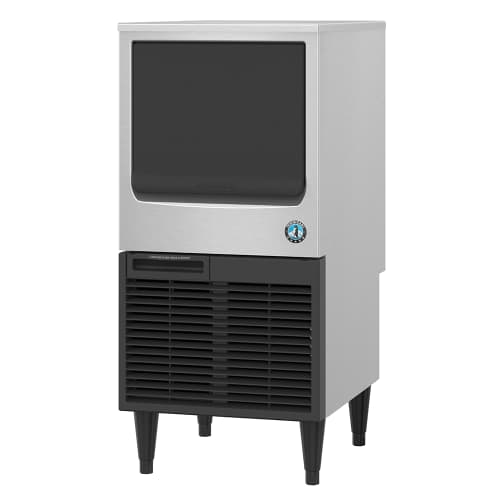

Hoshizaki KM-81BAJ 17 3/4" Crescent Cube Undercounter Ice Machine - 78 lbs/day, Air Cooled, ADA
The Hoshizaki KM-81BAJ undercounter crescent cube ice maker can produce 78 lbs ice daily. It has a space-saving footprint and low profile to save space in crowded kitchens and service areas. A front-ventilation airflow system enables this unit to be installed with reduced side and rear clearances, and the slide-in door doesn't obstruct the area in front of the machine when opened. Its EverCheck™ alert system simplifies routine maintenance and the air filter is removable from the front for servicing. With 1.3 cubic feet of storage capacity, the Hoshizaki KM-81BAJ crescent cube professional ice machine can keep 38 lbs of premade ice chilled and ready to serve, suiting it for many establishments. The included ice scoop features H-GUARD Plus antimicrobial agent, promoting sanitary machine operation and reducing cross-contamination. This ice maker is made of stainless steel, giving it excellent rust defense—an important feature for appliances regularly exposed to water. *Free shipping on Hoshizaki KM-81BAJ within the 48 contiguous states. Ice Maker With Bin, Cube-Style, air-cooled, self-contained condenser, production capacity up to 78 lb/24 hours at 70°/50° (52 lb AHRI certified at 90°/70°), built-in 38 lb. ice storage capacity, crescent style cube, front opening bin, stainless steel exterior, 6" painted legs, 115v/60/1-ph, 3.5 amps, ADA Compliant, NSF, cETLus, ENERGY STAR® Watch a video about this product A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more. Important Prop 65 information for California residents.
Product Details
- Also known as KM-80BAJ
- Air-cooled system
- 78-lb. maximum daily ice production
- 52-lb. AHRI-certified daily ice production
- 1.3-cu-ft. storage bin holds 38 lbs. of premade ice
- ADA compliant
- Produces crescent ice
- Cube dimensions: 11⁄8 in. W x 1⁄2 in. D x 11⁄2 in. H
- Low-profile ice machine fits under counters or into small spaces
- Forward-facing design enables built-in installation
- Made of rust-resistant stainless steel
- Antimicrobial ice scoop
- Front-breathing airflow reduces side and rear clearance requirements
- Front-opening bin with a slide-in door
- EverCheck™ alert system
- Power switch can be accessed without panel removal
- 6-in. painted legs
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSI
- Ideal clearances: 0.6 in. at top; 12 in. at front
- R-134a refrigerant
- 1,350-BTU heat transfer capacity
Specifications
| Manufacturer: | Hoshizaki |
| Width (in): | 17.75 |
| Depth (in): | 24 |
| Height (in): | 39 |
| Weight: | 125.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
| 24 Hr. Production (lb): | 78 |
| Also Known As: | KM-80BAJ |
| Bin Capacity (lb): | 38 |
| Compressor Type: | Air Cooled |
| Design: | ADA Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Crescent Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R134a |
| Series: | KM Series |
| Special Features: | Removable Air Filter |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.75 |
Dimensions & Utilities
- Overall: 173⁄4 in. W x 24 in. D x 39 in. H
- 3.5 A, 8.45 kW
- 115 V/60 Hz/1 ph, 6.5-ft. power cord with NEMA 5-15P plug
- *Free shipping on Hoshizaki KM-81BAJ within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker With Bin, Cube-Style, air cooling, integrated condenser, production capacity up to 78 lb/day at 70°/50° (52 lb AHRI certified at 90°/70°), built-in 38 lb. ice storage capacity, crescent style cube, front opening compartment, stainless steel exterior, 6" painted legs, 115v/60/1-ph, 3.5 amps, ADA Compliant, NSF, cETLus, ENERGY STAR®
