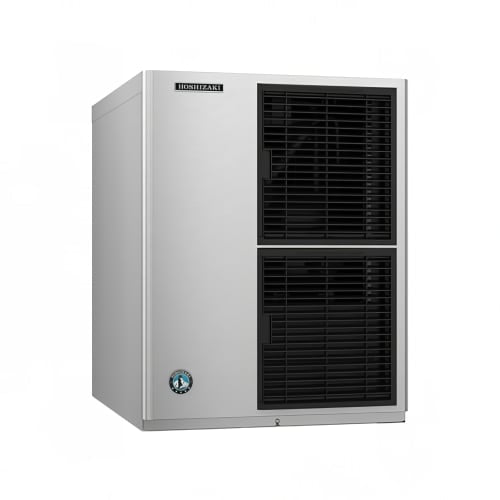

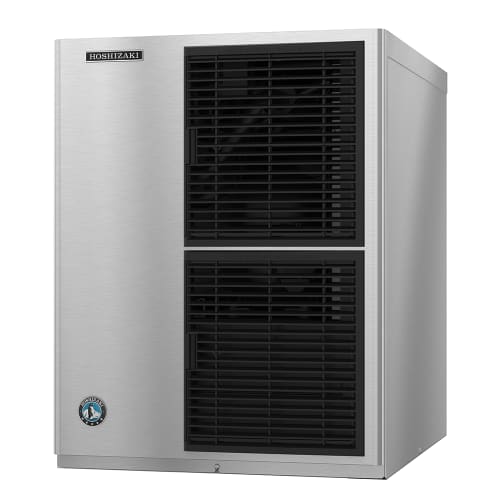

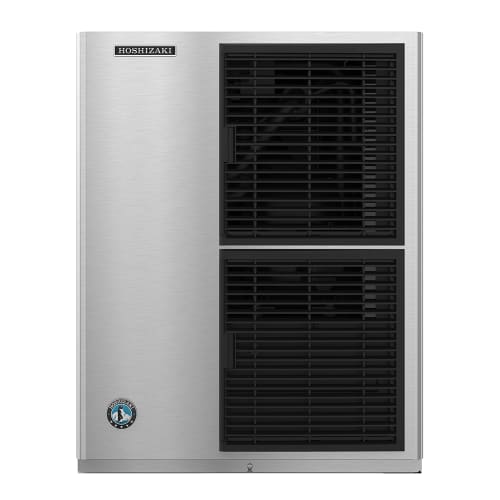

Hoshizaki KM-660MAJ 22" Crescent Cube Ice Machine Head - 650 lb/24 hr, Air Cooled, 115v/1ph
In one day of ideal conditions, the Hoshizaki KM-660MAJ ice maker head can generate 665 lbs ice. However, if the ambient air temperature is higher than 70 degrees Fahrenheit—or the incoming water is higher than 50 degrees—it will produce less. The ice machine's CycleSaver™ design and double-sided evaporator enable it to create many crescent cubes in a single cycle, reducing yearly cycles and saving energy and water for operators. This machine runs reliably because it detects environment changes automatically, while its EverCheck™ alert system notifies users and service technicians of issues requiring maintenance. This Hoshizaki KM-660MAJ ice machine head has an air cooling condenser that uses R404A refrigerant to freeze cubes. Its fans require 6" of clearance on the rear, sides, and top for proper airflow; for longevity, its air filters can be cleaned and reused. Panels are removable for interior component access and parts snap out of place for cleaning. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Hoshizaki KM-660MAJ within the 48 contiguous states. Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 650 lb/24 hours at 70°/50° (560 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube Style, R-404A refrigerant, 115v/60/1-ph, 15.2 amps, NSF, UL Watch a video about this product A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more. Important Prop 65 information for California residents.
Product Details
- Part of the KM EDGE ice machine series
- 665-lb. maximum daily ice production
- 617-lb. AHRI-certified daily ice production
- CycleSaver design creates more ice in fewer cycles than similar units
- Creates crescent ice
- Ice cube size: 11⁄2 in. x 11⁄8 in. x 1⁄2 in. radius
- Self-diagnostic program accounts for changes in the environment
- EverCheck system uses audible alarms to diagnose issues and streamline service calls
- H-GUARD Plus® antimicrobial agent in key components
- Stainless steel, double-sided evaporator
- Refrigeration system uses R404A refrigerant
- Condenser is cooled by fans
- Removable, reusable air filter
- Durable construction with removable panels for service access
- Parts snap in and out of place
- Ice bin sold separately
- 8,000-BTU heat transfer capacity
Specifications
| Manufacturer: | Hoshizaki |
| Width (in): | 22 |
| Depth (in): | 27.38 |
| Height (in): | 28 |
| Weight: | 151.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| 24 Hr. Production (lb): | 650 |
| Compressor Type: | Air Cooled |
| Ice Type: | Crescent Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | KM EDGE X |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.5 |
Dimensions & Utilities
- 26 in. W x 27 in. D x 34.2 in. H
- 15.2 A, 5.12 kW
- 115 V/60 Hz/1 ph
- *Free shipping on Hoshizaki KM-660MAJ within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker, Cube-Style, 22"W, air cooling, integrated condenser, production capacity up to 650 lb/day at 70°/50° (560 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube Style, R-404A refrigerant, 115v/60/1-ph, 15.2 amps, NSF, UL
