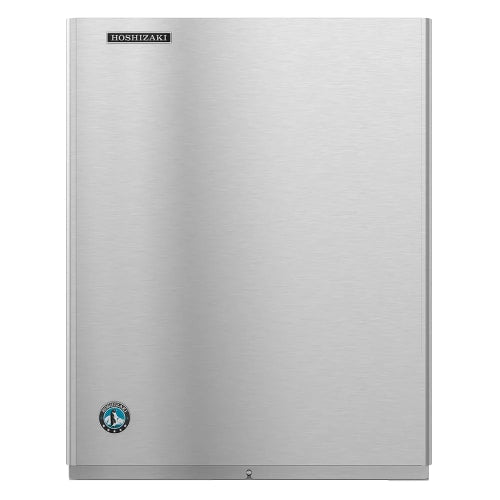

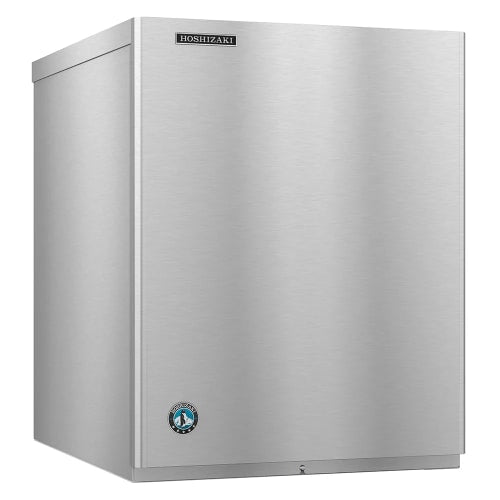

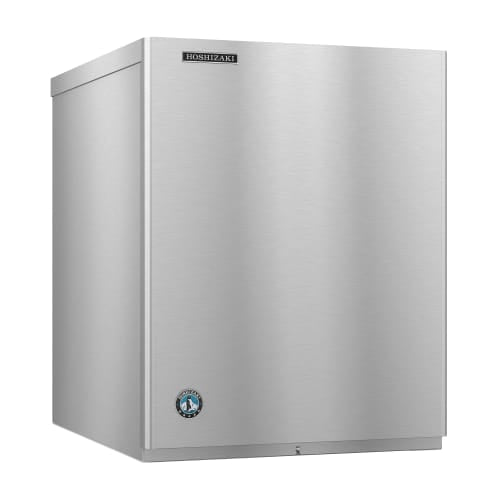

Hoshizaki KM-520MWJ 22" Crescent Cube Ice Machine Head - 474 lb/24 hr, Water Cooled, 115v/1ph
In Ideal conditions, the Hoshizaki KM-520MWJ ice machine head generates 474 lbs of crescent-cube ice per day. It is a water-cooled unit, and its integrated condenser operates with R404A refrigerant. To reduce the buildup of bacteria in the machine, it's protected by H-Guard Plus antimicrobial, and it self-cleans in just an hour with Clean Assist. Because the components of this unit snap in and out, they can be removed for cleaning. The Hoshizaki KM-520MWJ crescent-cube ice machine head has self-diagnostics that automatically adjust the unit to a changing environment. If something goes wrong, the EverCheck™ alert system tells users that maintenance is needed. Its evaporator is made of stainless steel to resist corrosion, and the finish is also stainless steel to provide durability. Note: This unit must be paired with an ice maker compartment or ice dispenser. *Free shipping on Hoshizaki KM-520MWJ within the 48 contiguous states. Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 474 lb/24 hours at 70°/50° (444 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 8.45 amps, NSF, UL Watch a video about this product A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more. Important Prop 65 information for California residents.
Product Details
- 474-lb. maximum daily ice production
- 444-lb. AHRI-certified daily ice production
- Makes crescent-cube ice
- Crescent-cube ice size: 11⁄8 in. L x 1⁄2 in. W x 11⁄2 in. H
- Water-cooled, self-contained condenser
- Cooled with R404A refrigerant
- Clean Assist cleans unit in 1 hr.
- H-GUARD Plus antimicrobial reduces bacteria buildup
- EverCheck alert system informs users of issues
- Self-diagnostics adjust settings when conditions change
- Double-sided stainless steel evaporator
- Snap-fit parts are removable for cleaning
- Durable stainless steel finish
- Requires 6-in. clearance at rear, sides, and top
- Ice bin and dispenser sold separately
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 6,300-BTU heat transfer capacity
Specifications
| Manufacturer: | Hoshizaki |
| Width (in): | 22 |
| Depth (in): | 27.38 |
| Height (in): | 28 |
| Weight: | 147.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| 24 Hr. Production (lb): | 474 |
| Compressor Type: | Water Cooled |
| Ice Type: | Crescent Cube |
| Product: | Ice Machine Heads |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | KM EDGE X |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.5 |
Dimensions & Utilities
- 22 in. W x 27.38 in. D x 28 in. H
- 8.45 A, 4.65 kW
- 115 V/60 Hz/1 ph
- *Free shipping on Hoshizaki KM-520MWJ within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker, Cube-Style, 22"W, water-cooled, integrated condenser, production capacity up to 474 lb/day at 70°/50° (444 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 8.45 amps, NSF, UL
