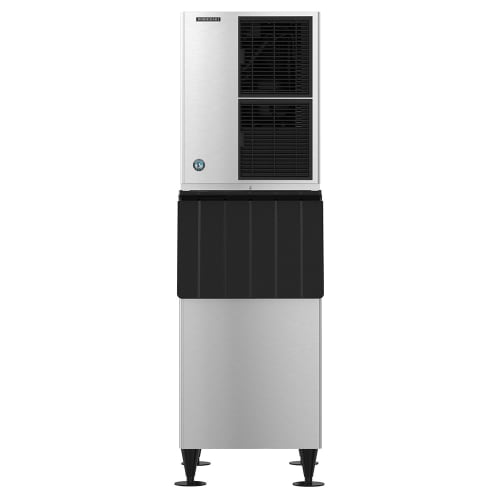

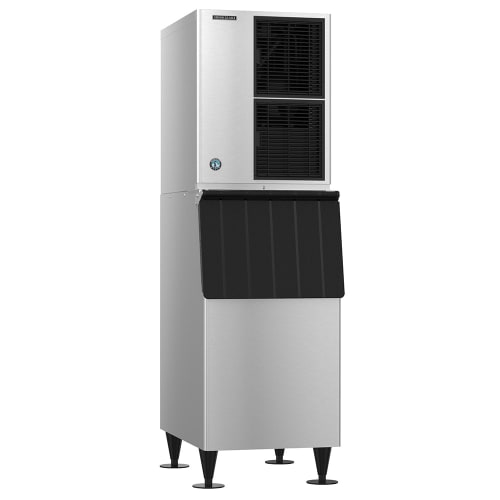

Hoshizaki KM-520MAJ/B-300SF 556 lb Slim-Line Crescent Cube Ice Machine w/ Bin - 300 lb Storage, Air Cooled, 115v
The Hoshizaki KM-520MAJ/B-300SF ice machine with compartment spans 22" wide by 321/2" deep by 74" high with a 6" required clearance from the top, sides, and rear. When ambient temperatures are 70 degrees and incoming water is 50 degrees, this unit generates 556 lbs of crescent-style ice cubes over day. Because this unit is integrated, it's simple to install. Its condenser is air cooled and operates utilizing R404A hydrocarbon refrigerant—a non-toxic, eco-friendly alternative. Its ever EverCheck™ alert system and CycleSaver™ design increases this unit's efficiency by producing high capacities in half the number of cycles. The Hoshizaki KM-520MAJ/B-300SF ice machine's compartment increases the amount of ice an establishment can store at one time; this compartment can hold 300 lbs of produced ice cubes. Insulated with foamed-in polyurethane, the ice melts at a slower rate, and this compartment is sealed with a polyethylene liner for security. The ice maker and compartment are protected with antimicrobial H-GUARD protectant, which inhibits bacteria, mold, and other contaminations. The ice maker and compartment base's exterior are made of stainless steel for durability and corrosion resistance. Overall, this ice machine and compartment combo spans 22" wide by 323/10" deep by 74" high and sits on 6" painted, flanged legs for stability. *Free shipping on Hoshizaki KM-520MAJ/B-300SF within the 48 contiguous states. Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 556 lb/24 hours at 70°/50° (480 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 10.6 amps, NSF, UL, ENERGY STAR® Ice Bin, 22"W, top-hinged front-opening door, 300-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, 6" painted flange legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation Watch a video about this product A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more. Important Prop 65 information for California residents.
Product Details
- Part of the Slim-Line series
- Produces 556 lb. in 24 hrs. in ideal conditions
- Air-cooled, self-contained condenser
- Removable filter
- Crescent-style cubes
- Ice dimensions: 11/8 in. W x 1/2 in. D x 11/2 in. H
- Stainless steel exterior
- R-404A hydrocarbon refrigerant
- EverCheck alert system
- CycleSaver design
- Antimicrobial H-GUARD protectant
- Required ambient temperature range: 45-100 degrees F
- Required water temperature range: 45-90 degrees F
- Required water pressure: 10-113 PSI
- 6-in. rear, sides, and top clearance required
Specifications
| Manufacturer: | Hoshizaki |
| Width (in): | 22 |
| Depth (in): | 32.3 |
| Height (in): | 74 |
| Weight: | 300.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| 24 Hr. Production (lb): | 556 |
| Access: | Lift Up Door |
| Bin Capacity (lb): | 300 |
| Compressor Type: | Air Cooled |
| Ice Type: | Crescent Cube |
| Product: | Ice Machines with Bins |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | Slim-Line |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.5 |
