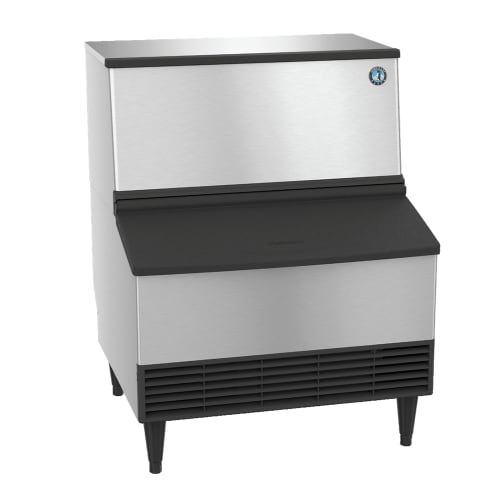

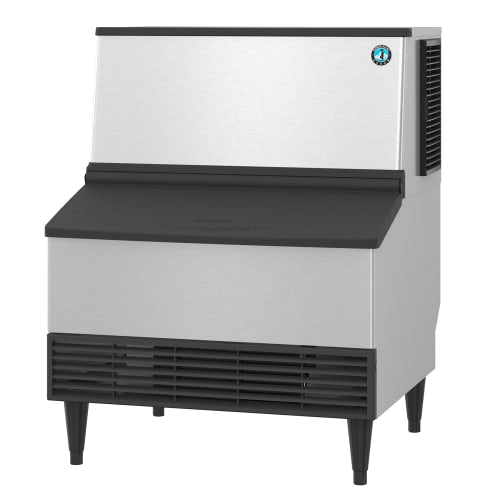

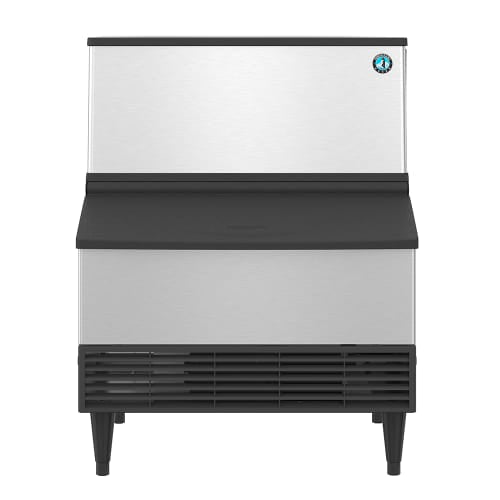

Hoshizaki KM-301BAJ 290 lb KM Series Crescent Cube Ice Machine w/ Bin - 100 lb Storage, Air Cooled, 115v
The Hoshizaki KM-301BAJ undercounter ice maker generates crescent cubes, which are harder than traditional half-dice ice and melt more slowly. The maker’s CycleSaver™ stainless steel evaporator forms ice on both sides, doubling its life and rate of production. Because it is air cooling, the unit is cheaper and easier to set up than a water-cooled system. This unit is front breathing, so operators can fit it beneath the counter without providing extra space for airflow. Its stainless steel exterior supplies resilience throughout the daily wear and tear of a kitchen or bar. As much as 100 lbs ice can be stored in the compartment until it is accessed through the front's ADA-compliant opening. *Free shipping on Hoshizaki KM-301BAJ within the 48 contiguous states. Ice Maker With Bin, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 290 lb/24 hours at 70°/50° (212 lb AHRI certified at 90°/70°), 100 lb. built-in ice storage capacity, crescent style cube, front opening bin, stainless steel exterior, 6" painted legs, protected with H-GUARD Plus Antimicrobial Agent, EverCheck™ alert system, 115v/60/1-ph, 8.4 amps, NEMA 5-15P, ADA Compliant bin opening, UL, NSF, cETLus Watch a video about this product A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more. Important Prop 65 information for California residents.
Product Details
- 290-lb. maximum daily ice production
- 212-lb. AHRI-certified daily ice production
- 100-lb.-capacity bin holds ice
- Air-cooled system offers user-friendly installation
- Produces crescent cubes

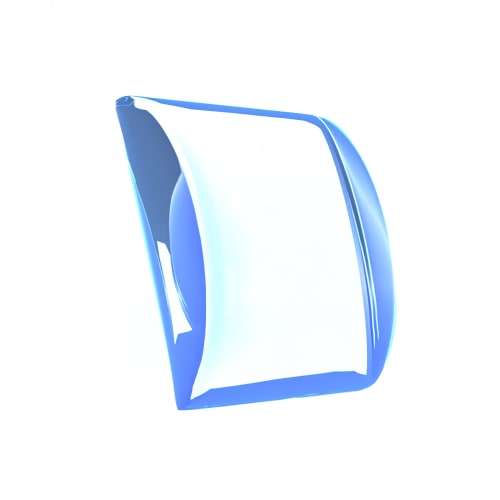

- Cube size: 11⁄8 in. x 11⁄2 in. x 1⁄2 in. radius
- Stainless steel evaporator for durability
- CycleSaver design lengthens evaporator life
- Air filter is removable
- ADA-compliant ice bin opening
- Stainless steel exterior is resilient and corrosion resistant
- Front-breathing unit enables placement flush against other surfaces
- EverCheck™ alert system notifies user when cleaning is needed
- Uses R-404A refrigerant
Specifications
| Manufacturer: | Hoshizaki |
| Width (in): | 30 |
| Depth (in): | 28 |
| Height (in): | 39 |
| Weight: | 171.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| 24 Hr. Production (lb): | 290 |
| Access: | Lift Up Door |
| Bin Capacity (lb): | 100 |
| Compressor Type: | Air Cooled |
| Ice Type: | Crescent Cube |
| NEMA: | 5-15P |
| Product: | Ice Machines with Bins |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R404A |
| Series: | KM Series |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.5 |
Dimensions & Utilities
- 30.43 in. W x 28 in. D x 39 in. H
- 8.4 A
- 115 V/60 Hz/1 ph, 6.5-ft. cord with NEMA 5-15P plug
- *Free shipping on Hoshizaki KM-301BAJ within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker With Bin, Cube-Style, 30"W, air cooling, integrated condenser, production capacity up to 290 lb/day at 70°/50° (212 lb AHRI certified at 90°/70°), 100 lb. built-in ice storage capacity, crescent style cube, front opening compartment, stainless steel exterior, 6" painted legs, protected with H-GUARD Plus Antimicrobial Agent, EverCheck™ alert system, 115v/60/1-ph, 8.4 amps, NEMA 5-15P, ADA Compliant compartment opening, UL, NSF, cETLus
