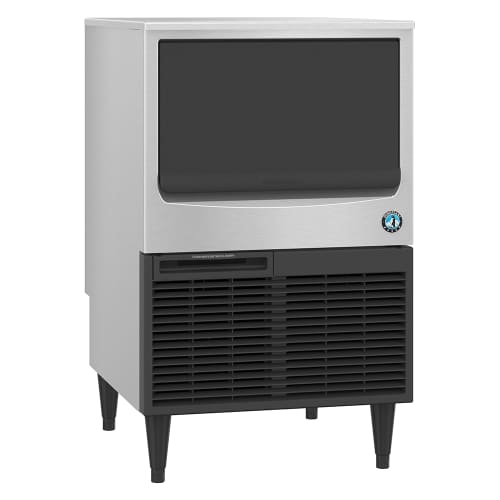

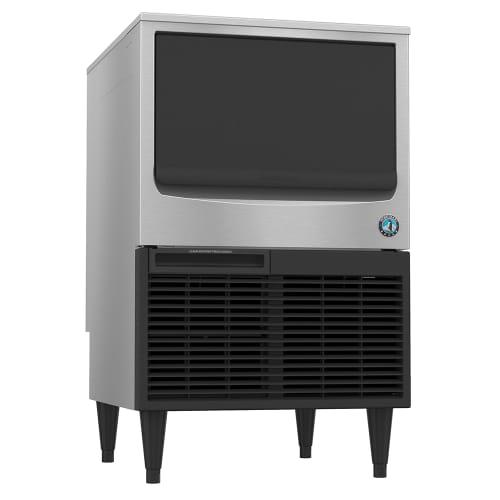

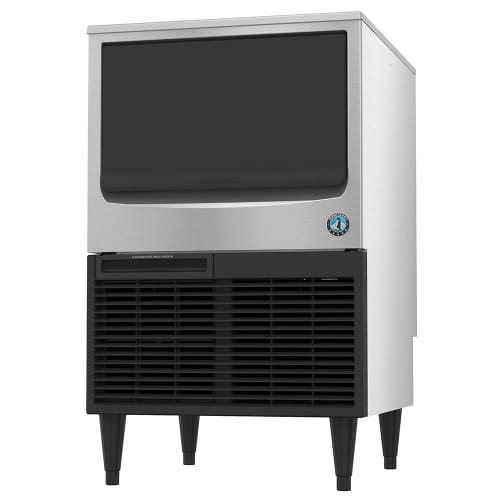

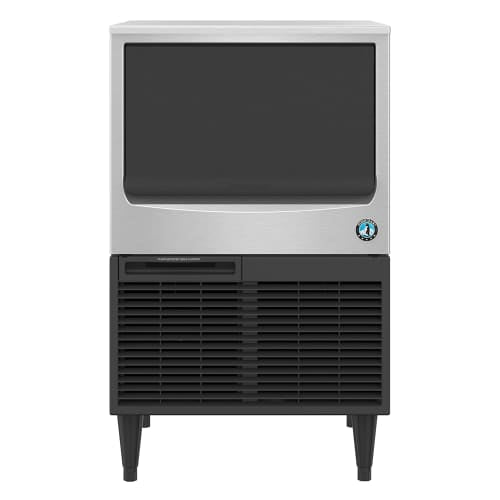

Hoshizaki KM-161BAJ 23 3/4"W Crescent Cube Undercounter Ice Machine - 163 lbs/day, Air Cooled, ADA
Featuring EverCheck™ technology, the Hoshizaki KM-161BAJ undercounter ice maker informs operators of system malfunctions quickly. With a simple on and off switch, this unit can be controlled without removing the panel. Its stainless steel exterior can be wiped clean, and its slide-in door supports quick content access. As many as 78 lbs ice can be stored in the compartment for peak business hours. In ideal situations, the Hoshizaki KM-161BAJ undercounter ice maker generates as much as 163 lbs of crescent ice per day. In the integrated condenser, air flows in and out the front, and its filter is removable for cleaning. The H-GUARD Plus Antimicrobial protects the ice scoop from bacteria buildup for clean ice. *Free shipping on Hoshizaki KM-161BAJ within the 48 contiguous states. Ice Maker With Bin, Cube-Style, 23-3/4"W, air-cooled, self-contained condenser, production capacity up to 163 lb/24 hours at 70°/50° (123 lb AHRI certified at 90°/70°), 78 lb. built-in ice storage capacity, crescent style cube, front opening bin, stainless steel exterior, 6" painted legs, 115v/60/1-ph, 7.1 amps, NSF, UL, cETLus, ADA Compliant A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more. Important Prop 65 information for California residents.
Product Details
- 163-lb. maximum daily ice production
- 123-lb. AHRI-certified daily ice production
- 78-lb. storage capacity
- Stainless steel exterior for durability
- EverCheck technology alerts users of system malfunctions

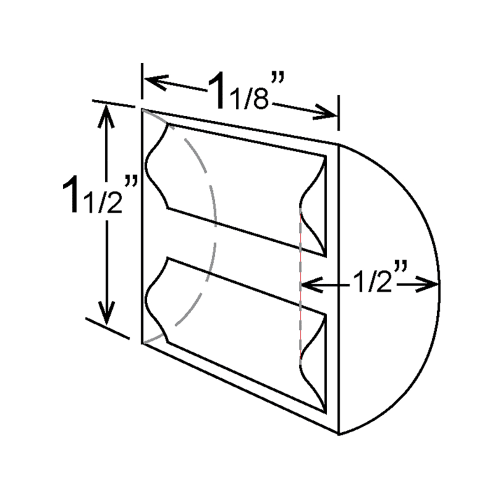

- Produces crescent cubes measuring 11⁄2 in. x 11⁄8 in. x 1⁄2 in.
- Front-breathing, self-contained condenser
- Condenser is air cooled with components that can be serviced quickly
- Slide-in door for full access
- Power switch operation
- Runs with R134A refrigerant
- Corrosion-resistant stainless steel evaporator
- CycleSaver™ design makes a lot of ice each cycle
- 6-in. legs
- Ideal water temperature: 45-90 degrees F
- Ideal ambient air temperature: 45-100 degrees F
- 3,050-BTU heat transfer capacity
- ADA compliant
Specifications
| Manufacturer: | Hoshizaki |
| Width (in): | 23.75 |
| Depth (in): | 28 |
| Height (in): | 39 |
| Weight: | 161.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts |
| 24 Hr. Production (lb): | 163 |
| Bin Capacity (lb): | 78 |
| Compressor Type: | Air Cooled |
| Design: | ADA Height |
| Drain Type: | Gravity |
| Front Style: | Lift Door |
| Ice Type: | Crescent Cube |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R134a |
| Series: | KM Series |
| Special Features: | Removable Air Filter |
| Suggested Use: | Commercial |
| Water Inlet (in): | 0.5 |
Dimensions & Utilities
- 23.82 in. W x 28.43 in. D x 39 in. H
- 7.1 A, 8.60 kW
- 115 V/60 Hz/1 ph, 6.5-ft. cord with a NEMA 5-15P plug
- *Free shipping on Hoshizaki KM-161BAJ within the 48 contiguous states.
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker With Bin, Cube-Style, 23-3/4"W, air cooling, integrated condenser, production capacity up to 163 lb/day at 70°/50° (123 lb AHRI certified at 90°/70°), 78 lb. built-in ice storage capacity, crescent style cube, front opening compartment, stainless steel exterior, 6" painted legs, 115v/60/1-ph, 7.1 amps, NSF, UL, cETLus, ADA Compliant
