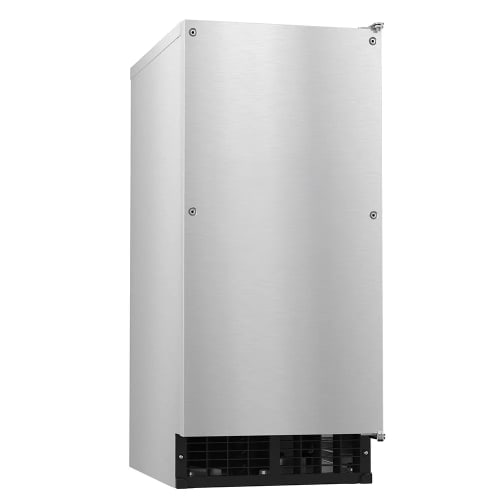

Hoshizaki AM-50BAK-ADDS 14 7/8"W Top Hat Undercounter Ice Machine - 54 lbs/day, Air Cooled, ADA, Gravity Drain, 115v

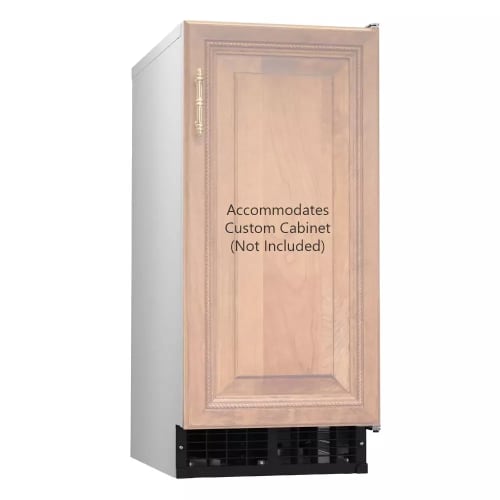

The Hoshizaki AM-50BAK-ADDS undercounter ice maker is optimal for professional kitchens, hotel suites, and office breakrooms. This unit can produce as much as 54 lbs of top hat ice—the largest ice form—each day. Because it has a high ice-to-water ratio, it slowly melts in beverages and is optimal for alcohols such as Scotch. The ice maker is a space-saving and efficient unit with a built-in storage compartment that can hold 27 lbs ice at once. With its front-ventilation configuration, the ice maker does require rear or side clearance, and the door can accommodate custom cacompartmentetry to blend with current themes. For outdoor use, the Hoshizaki AM-50BAK-ADDS undercounter top-hat ice maker can be placed at poolside bars. This unit spans 147⁄8" in width by 225⁄8" in depth by 311⁄2" in height—this complies with standards for ADA requirements while saving precious floor space. To extend its service life, the ice maker is designed with fewer moving parts than similar models. Facilitating cleaning, operators can easily disassemble the water circuit, and the accessible power switch reduces maintenance requirements. *Free shipping on Hoshizaki AM-50BAK-ADDS within the 48 contiguous states. Ice Maker with Custom Cabinetry & Bin, Cube-Style, air-cooled, self contained, 27 lbs. capacity, production capacity up to 54 lb/24 hours, power switch accessible without panel removal, front in & out airflow, full-length stainless steel door handle, top hat style full cube, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 2 amps, cord & NEMA 5-15P, ADA Compliant, NSF, UL Watch a video about this product A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more. Important Prop 65 information for California residents.
Product Details
- Safe for outdoor use
- For undercounter placement
- 54-lb. maximum daily ice production
- 35-lb. AHRI certified daily ice production

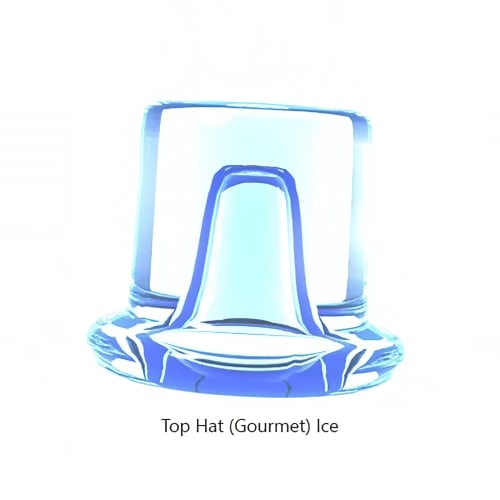

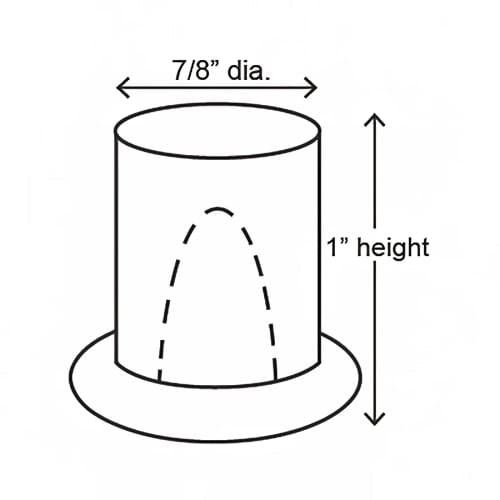

- Produces top hat ice
- Fewer moving parts extends service life
- Power switch can be accessed without removing panel
- 27-lb. maximum ice storage capacity
- Easily disassembled water circuit simplifies cleaning
- Front-breathing configuration doesn't require side clearance
- R290 hydrocarbon refrigerant
- Potable water usage: 63.9 gal. per 100 lbs.
- 1,900-BTU heat transfer capacity
- Ideal incoming air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-95 degrees F
- Ideal incoming water pressure: 7-113 PSIG
Specifications
| Manufacturer: | Hoshizaki |
| Width (in): | 14.88 |
| Depth (in): | 22.63 |
| Height (in): | 31.5 |
| Weight: | 99.00 |
| Voltage: | 115 |
| Phase: | 1 |
| Hertz: | 60 |
| Warranty: | 2-year Parts & Labor |
| 24 Hr. Production (lb): | 54 |
| Bin Capacity (lb): | 27 |
| Compressor Type: | Air Cooled |
| Design: | ADA Height |
| Drain Type: | Gravity |
| Front Style: | Cabinet Door |
| Ice Type: | Top Hat |
| NEMA: | 5-15P |
| Product: | Undercounter Ice Machines |
| Product Type: | Ice Makers & Bins |
| Rating: | Best |
| Refrigerant: | R290 (Hydrocarbon) |
| Series: | AM Series |
| Special Features: | Outdoor Rated |
| Suggested Use: | Outdoor |
| Water Inlet (in): | 0.5 |
Dimensions & Utilities
- Overall: 147⁄8 in. W x 225⁄8 in. D x 311⁄2 in. H
- 9 kW, 2 A
- 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
Additional Information
- Shipping: Free shipping on this item
Downloads
From The Manufacturer
Ice Maker with Custom Cacompartmentetry & Bin, Cube-Style, air cooling, self contained, 27 lbs. capacity, production capacity up to 54 lb/day, power switch accessible without panel removal, front in & out airflow, full-length stainless steel door handle, top hat style full cube, R290 Hydrocarbon refrigerant, 115v/60/1-ph, 2 amps, cord & NEMA 5-15P, ADA Compliant, NSF, UL
