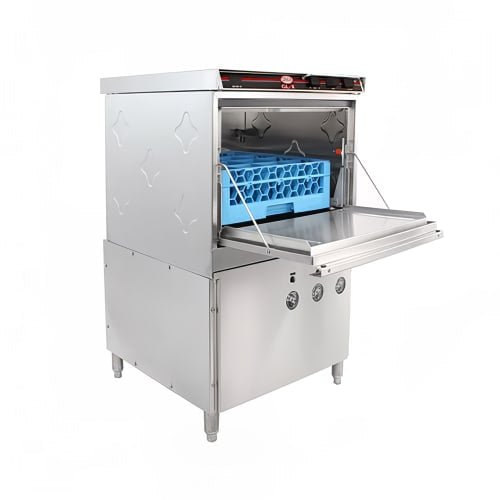

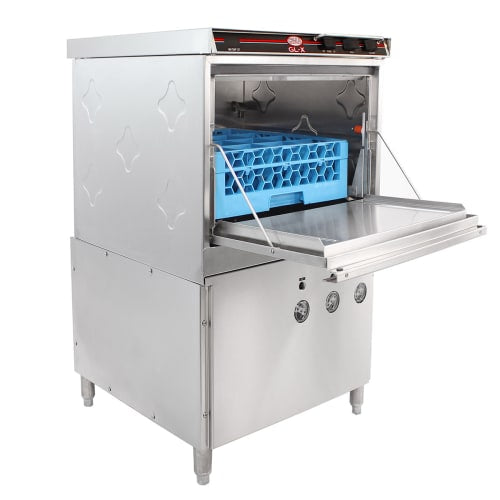

CMA Dishmachines H-1X High Temp Rack Undercounter Glass Washer w/ 24 Racks/hr Capacity, Built-in Booster, 208-240v/1ph
Original price
$5,294.00
-
Original price
$5,294.00
Original price
$5,294.00
$5,294.00
-
$5,294.00
Current price
$5,294.00
Product Details
- 1.4-gal. wash tank capacity
- Washes 24 racks and 96 covers per hour
- Undercounter design
- Stainless steel construction
- High temperature water sanitizing with built-in booster heater
- Unique dump & fill cycle drains wash water every cycle and refills with high-temperature water
- Pumped wash and rinse maintains exact water pressure for excellent results
- Safe T Temp feature delivers a high temperature final rinse every cycle
- Top-mounted LCD display alerts users of machine status
- Simple-to-operate controls
- Removable spray arm system features upper and lower spray arms
- Built-in chemical pumps assure consistent chemical usage
- Pumped drain enables flexible installation without a floor drain
- Pump purging system eliminates soil and chemical carryover during rinse cycle
- Built-in prime switches and instant start
- Large 141/4 in. L x 141/4 in. W door opening
- features door safety switch for safe operation
- Factory-installed detergent and rinse pump
- Automatic fill feature
- Fits 20 in. L x 20 in. W dishracks
- features (1) dishrack
- Wash cycle temperatures: 150 to 160 degrees F
- Rinse cycle temperatures: 180 to 195 degrees F
- Recommended water temperature: 140 degrees F
- Minimum water temperature: 110 degrees F
- 3/4-in. water inlet
- 3/4-in. drain connection
- Requires 3-in. deep minimum clearance
Dimensions & Utilities
- 237/8 in. W x 25 in. D (401/4 with door open) x 331/2 in. H
- 1 HP, 22 A
- 8 kW
- 208 V/60 Hz/1ph
*Free shipping on CMA Dishmachines H-1X within the 48 contiguous states.
From The Manufacturer
Dishwasher, Glasswasher, undercounter, 23 7/8"W x 25"D x 33-1/2"H, high temperature water sanitizing with built-in booster heater, unique Dump & Fill cycle drains wash water every cycle, factory installed Detergent & Rinse Pump, (24) racks/hour, deliming system, 14.25" door opening, automatic fill feature, pumped drain, LCD display, stainless steel construction, adjustable feet, uses 20"x20" dishracks, features (1) dishrack, 1 HP wash pump, NSF, ETL
*Image may not depict product color, inclusions or accessories.
Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | CMA Dishmachines |
| Cycle Period | 2 min 30 sec |
| Depth (in) | 25 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Dish and Glass |
| Glasses per hour | 864 |
| Height (in) | 33.5 |
| Hertz | 60 |
| Phase | 1 |
| Product | Glass Washers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 24 |
| Rating | Better |
| Series | Energy Mizer® |
| Special Features | Built in Booster |
| Special Features | Dual Wash Arms |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Water Inlet (in) | 3/4 |
| Width (in) | 23.88 |
| Weight | 165.00 |
