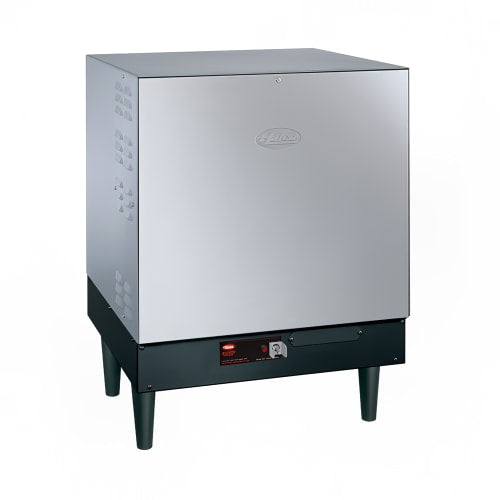

Hatco S-54 Imperial Booster Water Heater, 16 Gallon, 54 kW, 208v/3ph

Product Details

• Part of the Imperial series
• Maximum 542 GPH at 40-degree-F rise
• Maximum 310 GPH at 70-degree-F rise
• Thermostat can be lowered to heat water to 140 degrees F for low-temp machines
• Front panel removes to provide access to vital components for service and maintenance
• Pilot indicator light signals when element is heating
• Heaters are wired and plumbed at the factory, shortening installation times
• Stainless steel front panel and powder-coated hammertone body create a rugged, damage-resistant exterior
• Front panels remove to give technicians ready access to vital electronic components
• 16-gal. storage tank capacity
• Castone tank lining prevents rust and inhibits limescale buildup
• Pressure-relief valve prevents unsafe levels of pressure from building up inside tank
• Pressure-reducing valve delivers the correct incoming water pressure
• Temperature and pressure gauges enable users to monitor those conditions
• High-temperature safety shutoff prevents water from overheating to protect components
• Built-in heat trap and fiberglass insulation increase energy efficiency

Product Features

*Free shipping on Hatco S-54 within the 48 contiguous states.

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 125 A, 54 kW
• 208 V/60 Hz/3 ph

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 54-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, custom fittings, Castone tank, 6" legs, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
