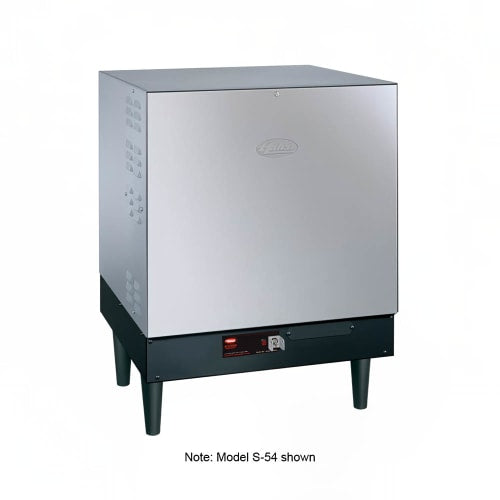

Hatco S-27 Imperial Booster Water Heater, 16 Gallon, 27 kW, 208v/1ph

Product Details

• Heats water to 180 degrees F for sanitary warewashing
• Thermostat can be lowered to 140 degrees F for use with low-temp dishwashers
• Ambient compensating thermostat controls the metal-sheathed heating elements and maintains a consistent temperature
• Water temperature recovery with a 40-degree F rise: 271 GPH
• Water temperature recovery with a 70-degree F rise: 155 GPH
• High-limit temperature switch shuts down power if the unit overheats
• 16-gal. tank capacity
• Corrosion-resistant Castone tank lining delivers lasting strength
• Cuts off when water levels get too low to prevent element burnouts
• Hammertone body and stainless steel front withstand heavy use
• Integrated heat trap and fiberglass insulation retain heat for increased efficiency
• Front access delivers convenience for servicing the components
• On/off switch with a pilot indicator light
• Durable 6-in. plastic legs
• features temperature/pressure relief and pressure reducing valves

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 27 kW, 129.8 A
• 208 V/60 Hz/1 ph

*Free shipping on Hatco S-27 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 27-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
