Hatco S-17 Imperial Booster Water Heater, 16 Gallon, 17 1/4 kW, 208v/3ph

Product Details

• Part of the Imperial series
• Maximum 173 GPH at 40-degree-F rise
• Maximum 99 GPH at 70-degree-F rise
• Powder-coated hammertone finish adds durability
• Stainless steel front cover delivers service access
• 2 temperature pressure gauges
• Temperature/pressure relief valve
• Pressure reduction valve
• Power switch
• Pilot indicator light
• Adjustable thermostat can be set to 180 degrees F or 140 degrees F
• Metal-sheathed elements
• Elements automatically deactivate if water level is too low or temperature is too high
• 16-gal. water tank lined in scale-resistant Castone
• Fiberglass layer around tank for insulation
• Pre-wired and pre-plumbed

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 47.9 A, 17.25 kW
• 208 V/60 Hz/3 ph

*Free shipping on Hatco S-17 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 17.25 kW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 208v/60/3ph

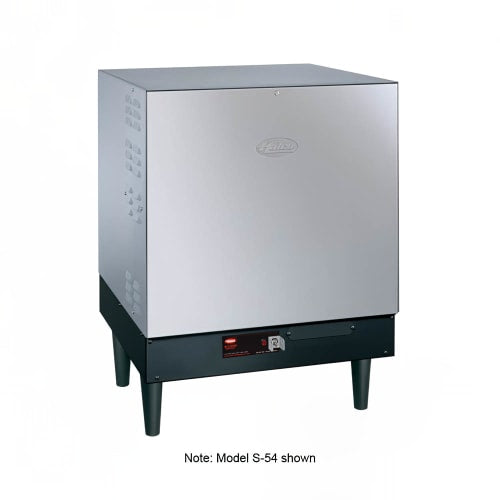

*Image may not depict product color, inclusions or accessories.
