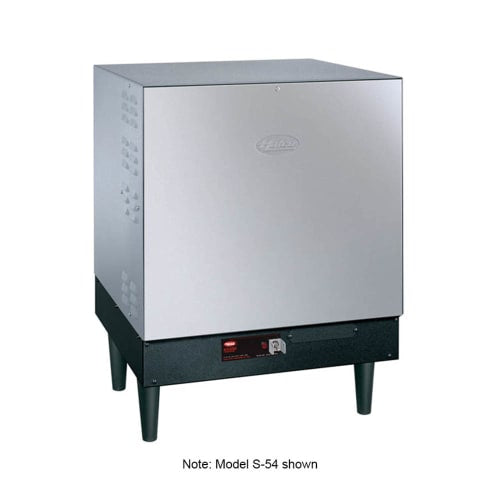

Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 240v/3ph

Product Details

• Part of the Imperial series
• Maximum 135 GPH at 40-degree-F rise
• Maximum 77 GPH at 70-degree-F rise
• Powder-coated hammertone finish
• Front stainless steel cover is removable for component access
• Pre-wired electronics, preset thermostat, and pre-plumbed tank
• Thermostat is adjustable to 140 degrees F for low-temperature warewashers
• 16-gal. tank capacity
• Corrosion-resistant Castone liner
• Dense fiberglass insulation
• Metal-sheathed heating elements have low-water cut-off
• High-temperature safety limit prevents irreversible damage
• Pilot light
• Power switch
• 2 gauges for temperature and pressure
• Pressure relief valve and pressure reducing valve

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 33 A, 13.5 kW
• 240 V/60 Hz/3 ph

*Free shipping on Hatco S-13 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/3ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
