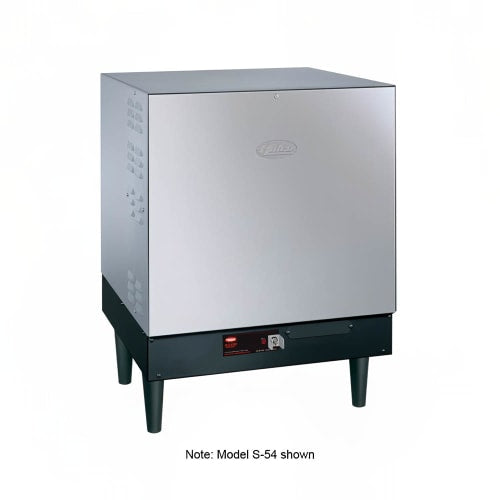

Hatco S-13 Imperial Booster Water Heater, 16 Gallon, 13 1/2 kW, 208v/1ph

Product Details

• Part of the Imperial series
• delivers hot water at 140 or 180 degrees F
• Maximum 135 GPH at 40-degree-F rise
• Maximum 77 GPH at 70-degree-F rise
• Durable powder-coated hammertone body
• Stainless steel front panel offers interior access for servicing
• Streamlined design is pre-plumbed and pre-wired
• Calibrated thermostat can be lowered to 140 degrees F
• High-temperature limit safeguards against overheating and internal damage
• Low-water cut-off prevents element burnout
• Fiberglass-insulated tank with a 16-gal. capacity
• Castone lining reduces corrosion buildup
• Metal-sheathed heating elements
• Pilot light
• Power switch
• Pressure reducing valve
• Temperature/pressure relief valve
• 2 pressure/temperature gauges

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 65 A, 13.5 kW
• 208 V/60 Hz/1 ph

*Free shipping on Hatco S-13 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 13.5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
