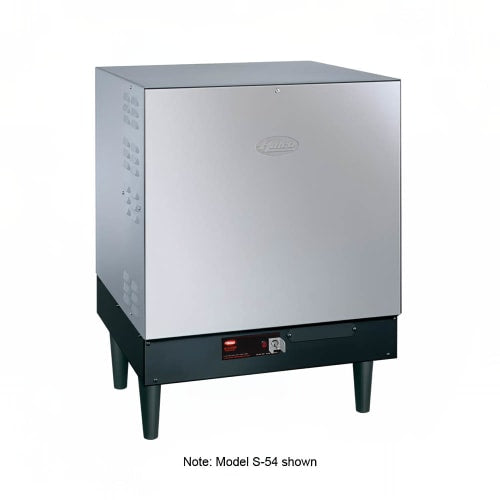

Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 480v/3ph

Product Details

• Part of the Imperial series
• delivers a hot water supply for a professional dishmachine
• 180-degree-F and 140-degree-F settings
• Maximum 120 GPH at 40-degree-F rise
• Maximum 69 GPH at 70-degree-F rise
• Fiberglass insulation increases heat retention and efficiency
• Powder-coated hammertone body with a stainless steel front
• Front panel grants access to interior components
• Metal-sheathed heating elements
• Low-water cut-off feature reduces risk of element burnout
• Castone liner reduces the amount of limescale buildup in the tank
• 16-gal. tank
• Pre-plumbed and pre-wired
• On/off switch and pilot light
• Preset thermostat with a high-temperature limit
• Relief valve and pressure reducing valve
• Temperature/pressure gauges for monitoring operation

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 14.5 A, 12 kW
• 480 V/60 Hz/3 ph

*Free shipping on Hatco S-12 within the 48 contiguous states.

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 480v/60/3ph

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
