Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 240v/3ph

Product Details

• 16-gal. capacity
• Water reaches 180 degrees F for sanitizing or 140 degrees F for low-temp dishwashers
• Maximum 120 GPH at 40-degree-F rise
• Maximum 69 GPH at 70-degree-F rise
• 2 pressure gauges
• Pressure-reducing valve
• Temperature-relief valve
• Pilot indicator light
• On/off switch
• Calibrated immersion thermostat
• Pre-plumbed and pre-wired for simple installation
• Low-water cut-off
• High-temperature limit control
• Built-in heat trap minimizes heat loss
• Insulated with fiberglass
• Durable, stainless steel front panel
• Silver powder-coated hammertone body finish
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet

Product Features

*Free shipping on Hatco S-12 within the 48 contiguous states.

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 29 A, 12 kW
• 240 V/60 Hz/3 ph

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 240v/60/3ph

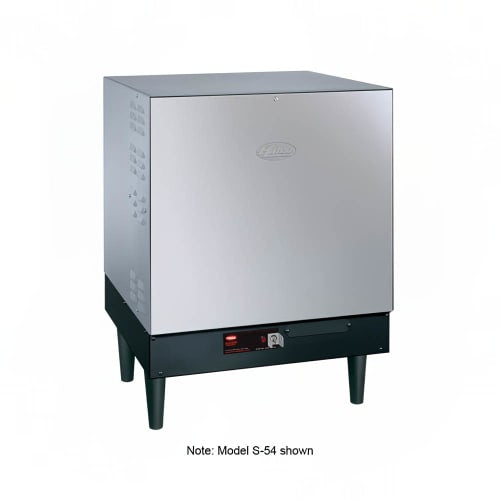

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
