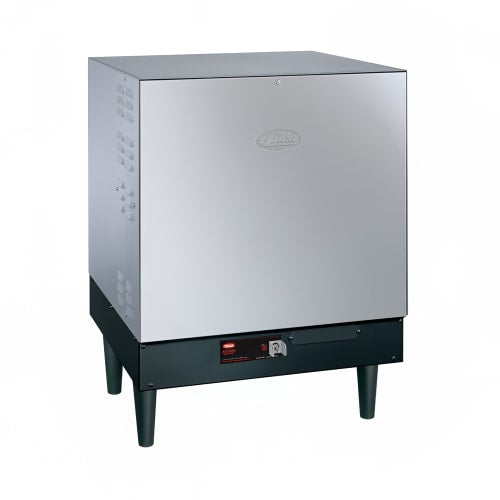

Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 208v/3ph

Product Details

• 16-gal. capacity
• Heats water to the sanitization threshold of 180 degrees F
• Maximum 120 GPH at 40-degree-F rise
• Maximum 69 GPH at 70-degree-F rise
• Silver hammertone, powder-coated body resists dents and abrasions
• Stainless steel front panel is built for durability
• Heat trap and fiberglass insulation minimize heat loss
• Calibrated immersion thermostat
• 2 temperature gauges
• Temperature-relief valve
• Pressure-reducing valve
• Pilot indicator light
• Shuts off when the water is too low or the temperature is too high, for unit protection
• Adjustable to 140 degrees F for low-temperature dish machines
• Front-accessed service area
• On/off switch operation
• Pre-plumbed and pre-wired at the factory
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet

Product Features

*Free shipping on Hatco S-12 within the 48 contiguous states.

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 33 A, 12 kW
• 208 V/60 Hz/3 ph

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, 6" legs, 208v/60/3-ph, NSF, cUL, UL

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
