Hatco S-12 Imperial Booster Water Heater, 16 Gallon, 12 kW, 208v/1ph

Product Details

• 16-gal. capacity
• Water sanitizes at 180 degrees F
• Maximum 120 GPH at 40-degree-F rise
• Maximum 69 GPH at 70-degree-F rise
• Calibrated immersion thermostat can be adjusted
• Built-in heat trap prevents heat loss
• Simple on/off switch operation
• Pilot indicator light informs users of potential malfunctions
• Low-water cut-off prevents burnout
• High-temperature limit control switch for safety
• 2 temperature gauges for monitoring
• Temperature-relief valve
• Pressure-reducing valve
• Pre-plumbed and pre-wired for quick installation
• Corrosion-resistant, Castone®-lined tank
• Heat-trapping, fiberglass insulation
• Durable, stainless steel front panel
• Powder-coated, silver hammertone body
• ³⁄₄-in. NPT pipe
• Fittings for water inlet and outlet

Product Features

*Free shipping on Hatco S-12 within the 48 contiguous states.

Dimensions & Utilities

• 28⁵³/₁₀₀ in. W x 22³/₄ in. D x 31³/₁₀₀ in. H
• 58 A, 12 kW
• 208 V/60 Hz/1 ph

From The Manufacturer

Imperial Booster Heater, Electric, 16-gallon storage capacity, 12-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-leveling feet, Castone tank, NSF, cUL, UL, 208v/60/1ph

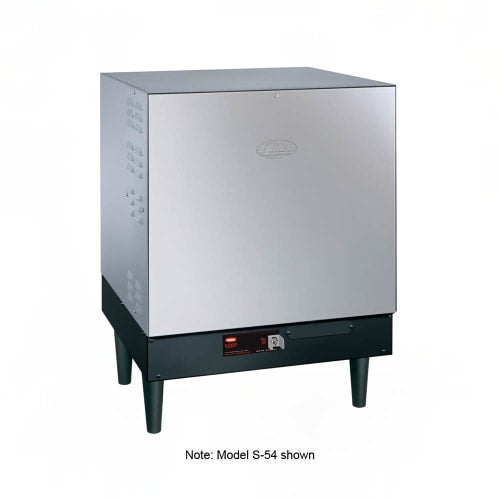

*Image may not depict product color, inclusions or accessories.

Specifications

Documents

• Spec Sheet
• Warranty
• Parts Breakdown
• Manual
• Brochure
